Optical node configuration apparatus
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jan 5, 2016
Grant Date -
May 16, 2013
app pub date -
Nov 14, 2012
filing date -
Nov 14, 2011
priority date (Note) -
In Force
status (Latency Note)
Importance
Loading Importance Indicators...
Abstract

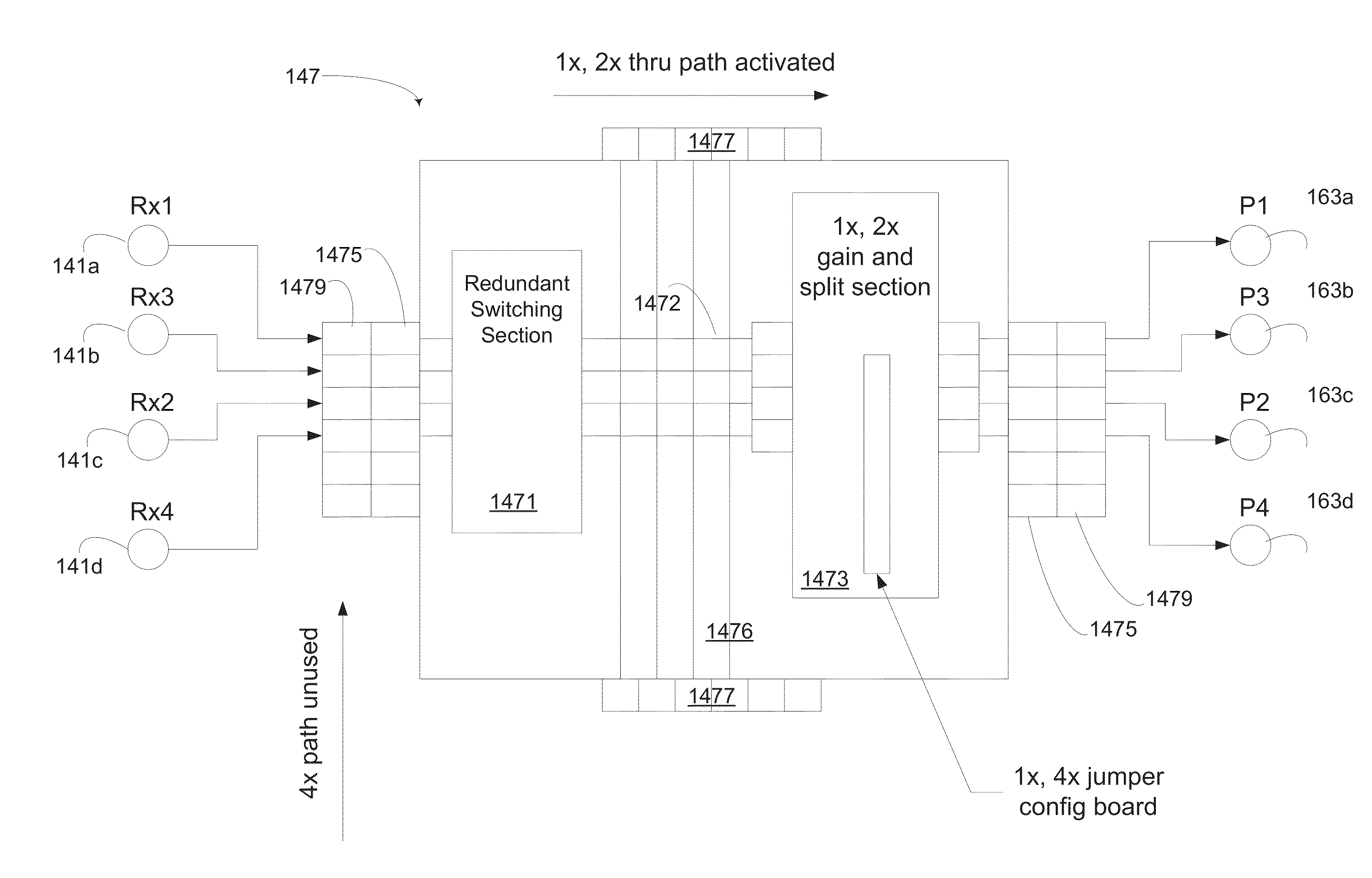

A segmented optical node exploits a configuration module having arrayed all elements to go from a 1×4 to a 4×4 configuration, save optional redundant switches. A jumper board in the 1×, 2× path configures the node for 1×4 in one orientation and for 2×4 when flipped around 180 degrees. The 4×4 configuration is achieved by rotating the configuration module 90 degrees. In this orientation power to the module is also off, since the 4× configuration is passive.
First Claim
Other Claims data not available
Family
Loading Family data...
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- H04Q Class
- 0 % this patent is cited more than
- 9 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jul 5, 2027 |
