Device identification method, communicative connection method between multiple devices, and interface controlling method
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jan 5, 2016
Grant Date -
Sep 18, 2014
app pub date -
Mar 18, 2013
filing date -
Mar 18, 2013
priority date (Note) -
In Force
status (Latency Note)
Importance
|
US Family Size
|
Non-US Coverage
|
|
Patent Longevity
|
Forward Citations
|
Abstract

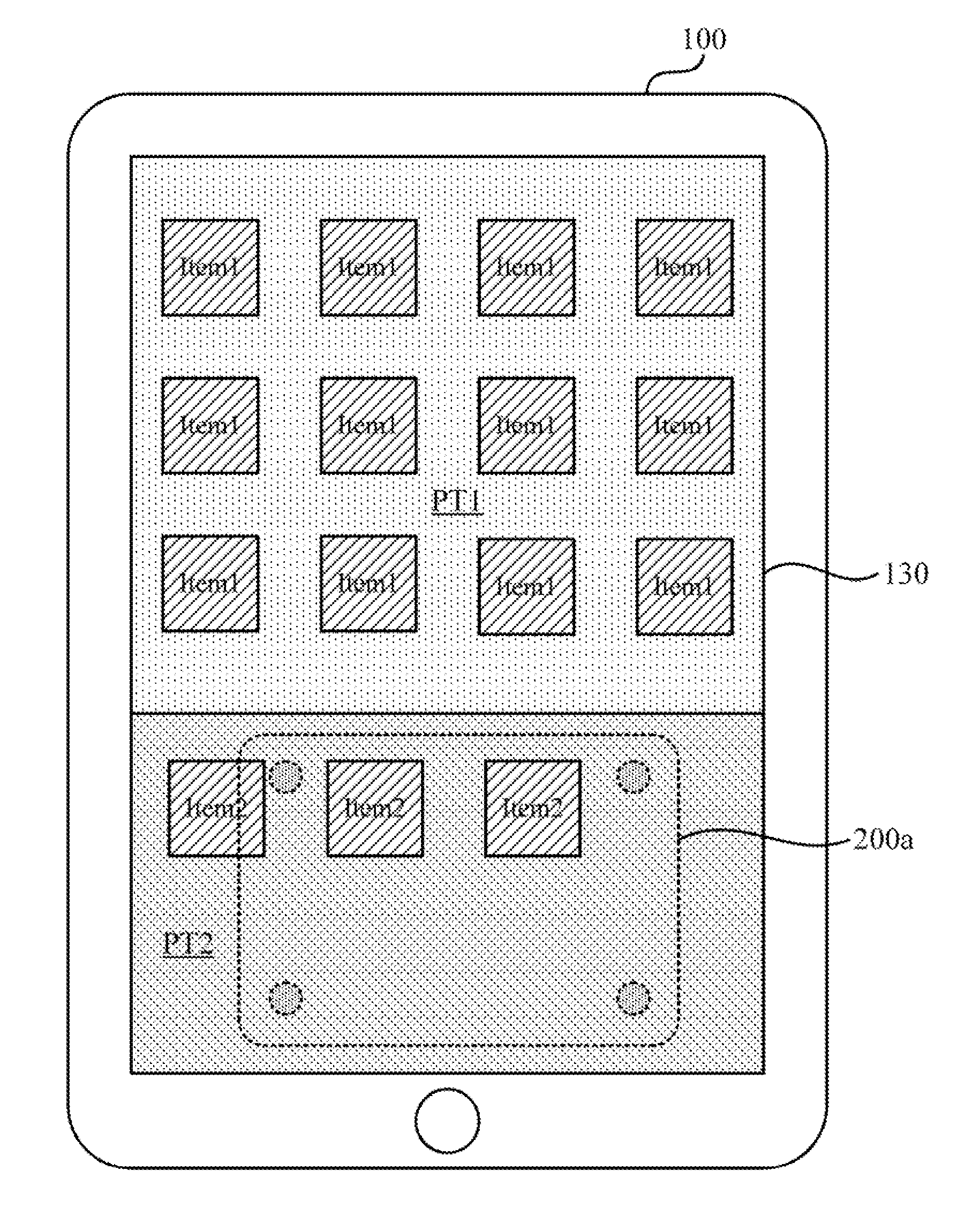

A device identification method, a communicative connection method between multiple devices, and an interface controlling method are disclosed herein. The devices include a first device and at least one second device. The first device includes a touch-sensing interface and a first wireless communication module. Each second device comprising a second wireless communication module and physical contacts arranged with a distinct pattern. The communicative connection method includes steps of: sensing a multi-touch input by the touch-sensing interface when one of the second devices is currently placed upon the touch-sensing interface of the first device; identifying the second device currently placed upon the first device by matching the multi-touch input with the distinct pattern; and, forming a wireless communicative connection between the first wireless communication module of the first device and the second wireless communication module of the matched second device.
First Claim
Other Claims data not available
Family
- No Family data available.
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- G06F Class
- 0 % this patent is cited more than
- 9 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jul 5, 2027 |
