Integrated circuit and semiconductor device
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Aug 9, 2016
Grant Date -
Dec 12, 2013
app pub date -
Aug 12, 2013
filing date -
Aug 12, 2013
priority date (Note) -
Withdrawn
status (Latency Note)
Importance
|
US Family Size
|
Non-US Coverage
|
|
Patent Longevity
|
Forward Citations
|
Abstract

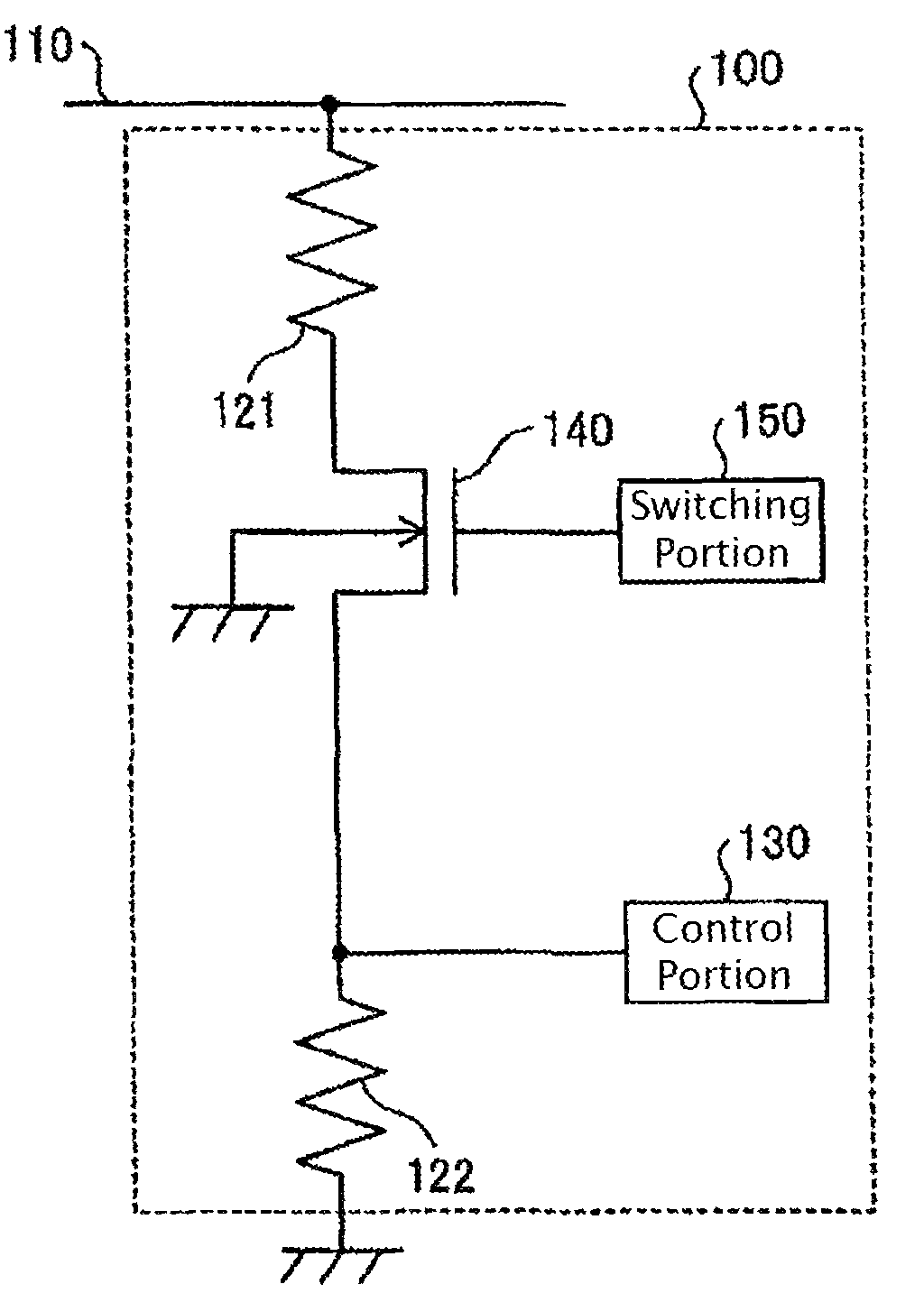

An integrated circuit in which a voltage divider circuit is integrated comprises a first resistor, second resistor, control portion, switch, and switching portion. The first resistor and second resistor form a resistive voltage divider element for dividing a voltage obtained by rectifying an alternating-current voltage, or a direct-current voltage, supplied to a control portion. The switch is provided in series with the resistive voltage divider element, and passes or cuts off current passing through the resistive voltage divider element. The switching portion switches the switch so as to pass current during driving of the control portion, and cut off current during standby of the control portion.
First Claim
Other Claims data not available
Family
| Country | kind | publication No. | Filing Date | Type | Sub-Type |
|---|
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- H01L Class
- 0 % this patent is cited more than
- 9 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jul 5, 2027 |
