Firearm having a removable hand guard
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jan 5, 2016
Grant Date -
Jul 2, 2015
app pub date -
Dec 29, 2014
filing date -
Oct 6, 2006
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

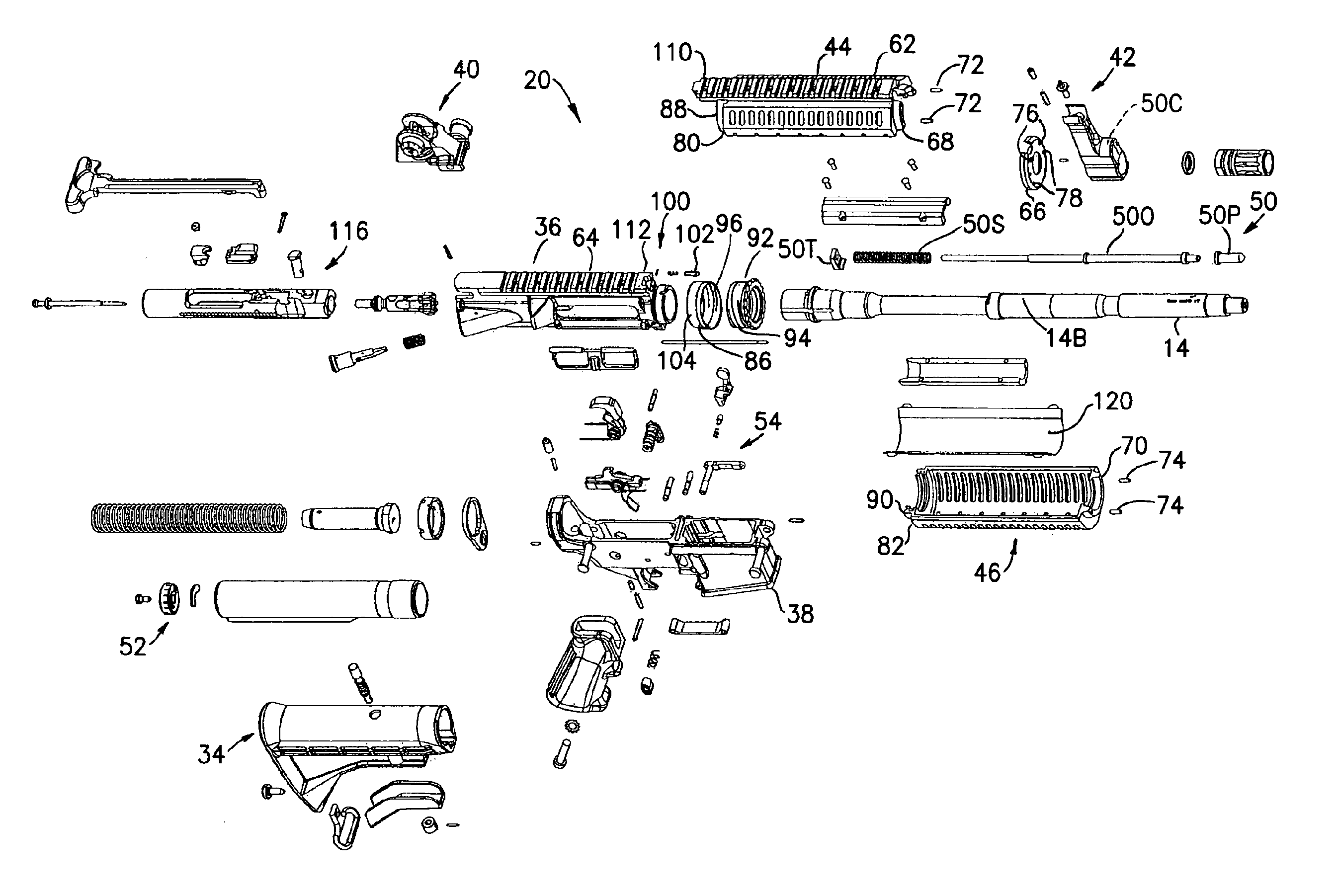

A semi-automatic or automatic rifle is provided. The rifle having: an upper hand guard and a lower hand guard each removably secured to an upper receiver of the rifle, wherein the upper hand guard has an integral upper rail that extends along an upper surface of the upper hand guard and the upper hand guard has a rear tab that is received within a mating slot of the upper receiver when the upper hand guard is secured to the upper receiver and wherein the upper rail of the upper hand guard is contiguous with a receiver rail when the upper hand guard is secured to the upper receiver; a cap configured to releasably engage a forward end of the upper hand guard and a forward end of the lower hand guard; and wherein the upper hand guard and the lower hand guard are not directly secured to a barrel of the rifle such that the upper hand guard and the lower hand guard float in position relative to the barrel of the rifle.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2014 Application Filing Year
- F41C Class
- 220 Applications Filed
- 186 Patents Issued To-Date
- 84.55 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 11 Citation Count
- F41C Class
- 84.04 % this patent is cited more than
- 9 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jul 5, 2027 |
