Actuator for axial displacement of a gas exchange valve in a combustion engine
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jan 5, 2016
Grant Date -
Jul 2, 2015
app pub date -
Jun 26, 2013
filing date -
Jul 6, 2012
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

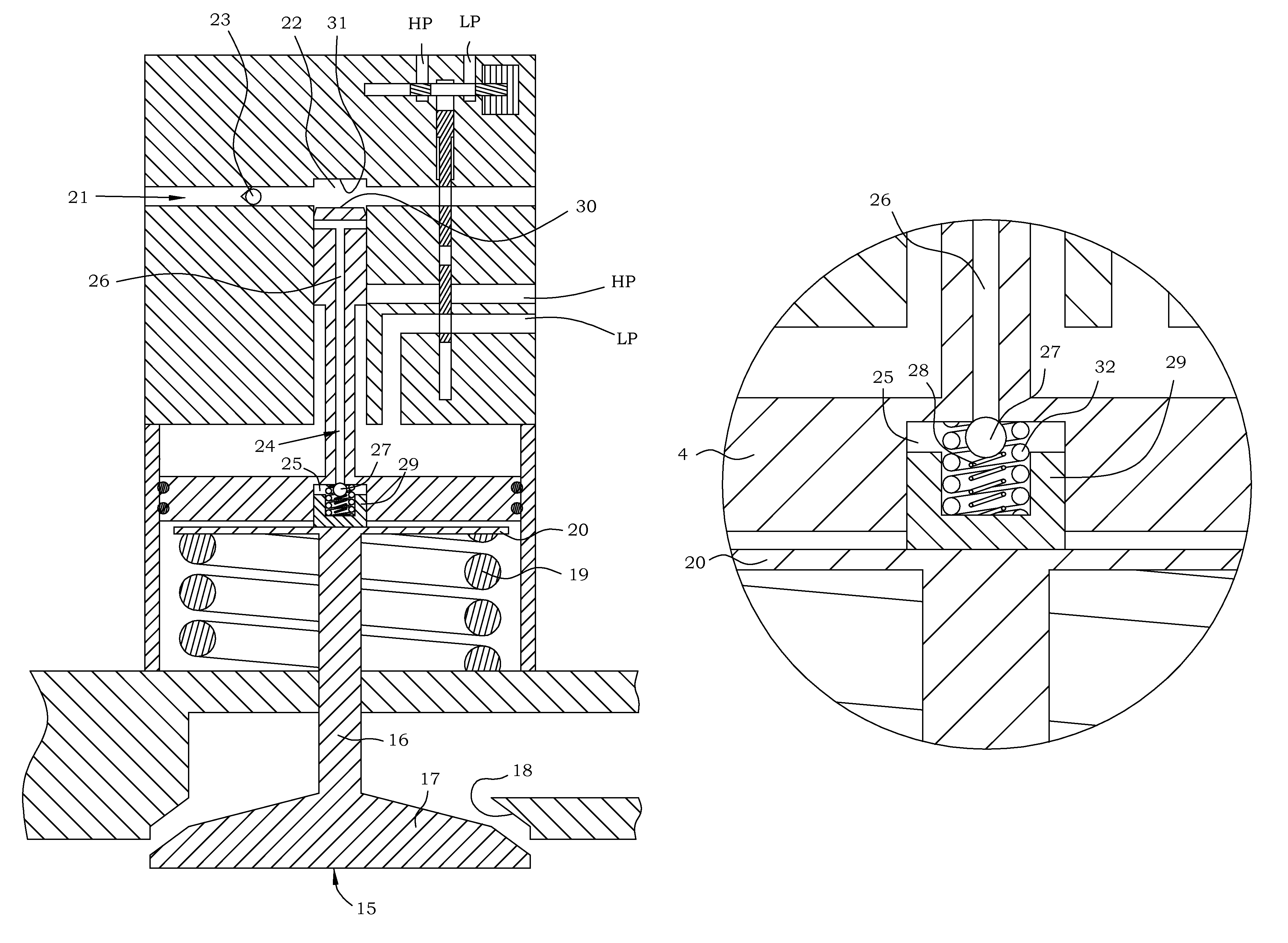

An actuator for axially displacing an object includes an actuator piston disc and an actuator piston rod, which together form an actuator piston, a cylinder volume, the actuator piston disc dividing the cylinder volume into a first part and second part and being displaceable in the cylinder volume between an inactive and active position, a pressure fluid circuit arranged for controllable fluid communication with the first part, and a first hydraulic circuit including a liquid-filled space, the actuator piston rod being disposed to be axially displaced in relation to the liquid-filled space in connection with axial displacement of the actuator piston disc in the cylinder volume. The actuator piston includes a second hydraulic circuit, the liquid-filled space being in fluid communication with an inner cavity in the second hydraulic circuit when the actuator piston disc is in the inactive position, the inner cavity partly being delimited by a positioning piston.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2013 Application Filing Year
- F01L Class
- 369 Applications Filed
- 352 Patents Issued To-Date
- 95.40 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- F01L Class
- 0 % this patent is cited more than
- 9 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jul 5, 2027 |
