Systems and methods for control and calibration of a solar power tower system
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Dec 29, 2015
Issued Date -
N/A
app pub date -
Nov 27, 2012
filing date -
Dec 1, 2011
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

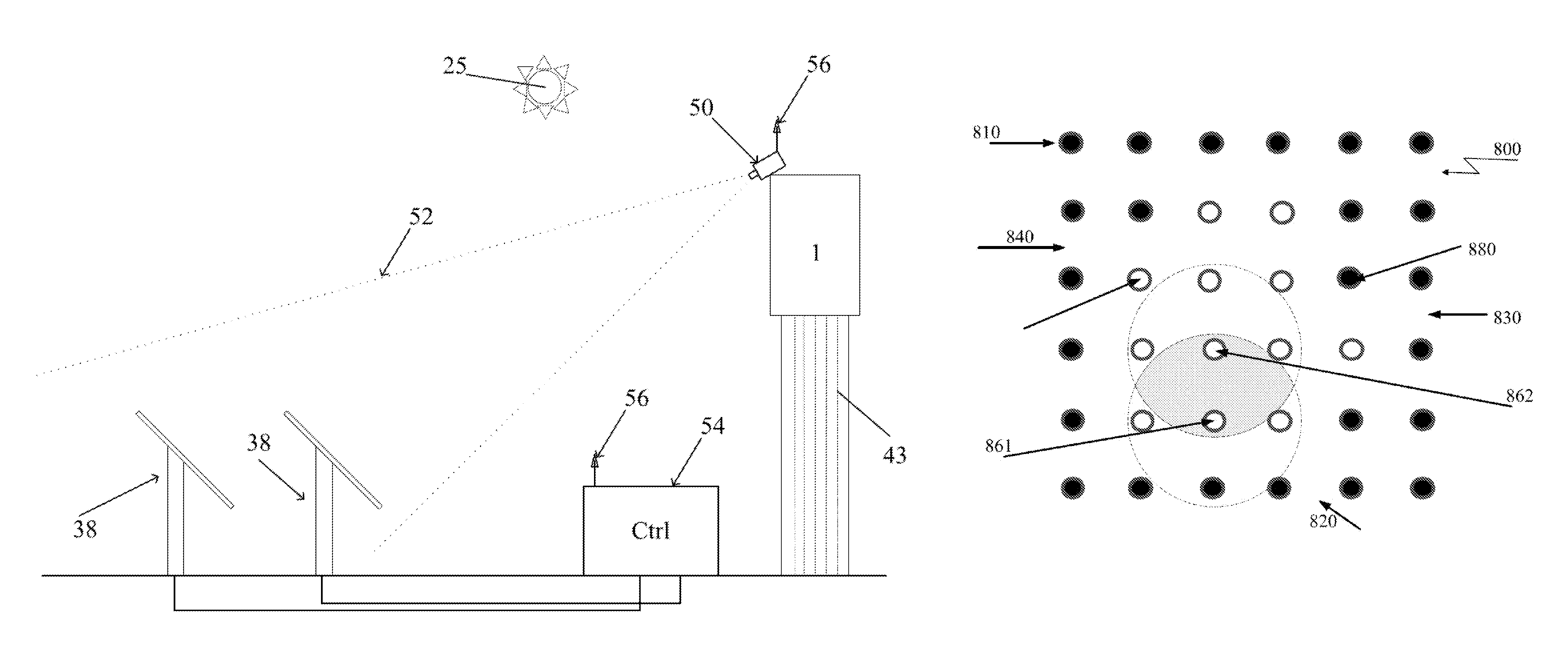

A solar energy collection system can include a plurality of heliostats configured to reflect sunlight to a target mounted on a tower. Each of the heliostats can have a heliostat controller configured to control a respective heliostat so that the sunlight reflected therefrom is directed to at least one of a plurality of cameras. The cameras can be oriented to image the heliostat. A second controller can be configured to compute geometry data that defines a geometry of the surface of the heliostat from captured images thereof. The geometry data can designate a plurality of subsections of the surface. The computing by the second controller can include storing data indicating sections of the captured images corresponding to the plurality of subsections of the heliostat. The second controller can also calculate data indicating respective surface normals of each of said subsections of each of said heliostat.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2012 Application Filing Year
- F24J Class
- 316 Applications Filed
- 268 Patents Issued To-Date
- 84.82 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 17 Citation Count
- F24J Class
- 84.78 % this patent is cited more than
- 10 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jun 29, 2027 |
