Linearly extendable collection mechanism for refuse hauling vehicles
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Dec 29, 2015
Grant Date -
Sep 13, 2012
app pub date -
Mar 7, 2012
filing date -
Mar 11, 2011
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

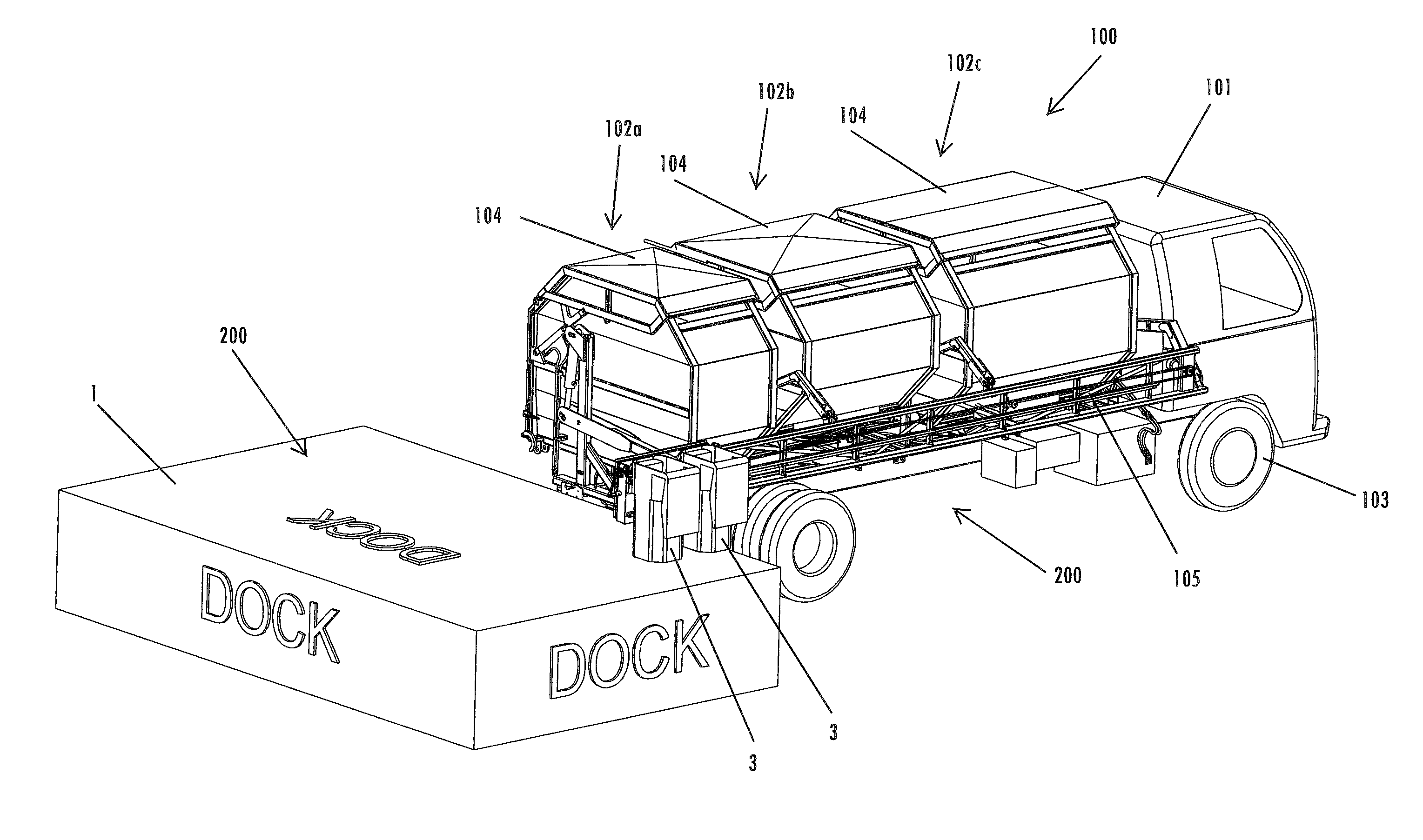

An improved recyclables collection vehicle includes a lift mechanism for selective loading into any one of multiple hoppers on the vehicle. The lift mechanism includes a track which extends past the rear of the vehicle such that a moveable carriage may move along the track to collect a refuse bin located to the rear of the vehicle or on an elevated dock behind or alongside the vehicle. The carriage can be aligned with any one of the hoppers such that the lift mechanism will elevate the refuse bin and invert it over the hopper container. The movement of the carriage along the track and the raising of the lift mechanism are operated with a wireless remote control.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2012 Application Filing Year
- B65F Class
- 61 Applications Filed
- 46 Patents Issued To-Date
- 75.41 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- B65F Class
- 0 % this patent is cited more than
- 10 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jun 29, 2027 |
