Vibrating device for uniform filling of granular ornaments
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Dec 29, 2015
Grant Date -
Jul 4, 2013
app pub date -
Dec 19, 2012
filing date -
Dec 29, 2011
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

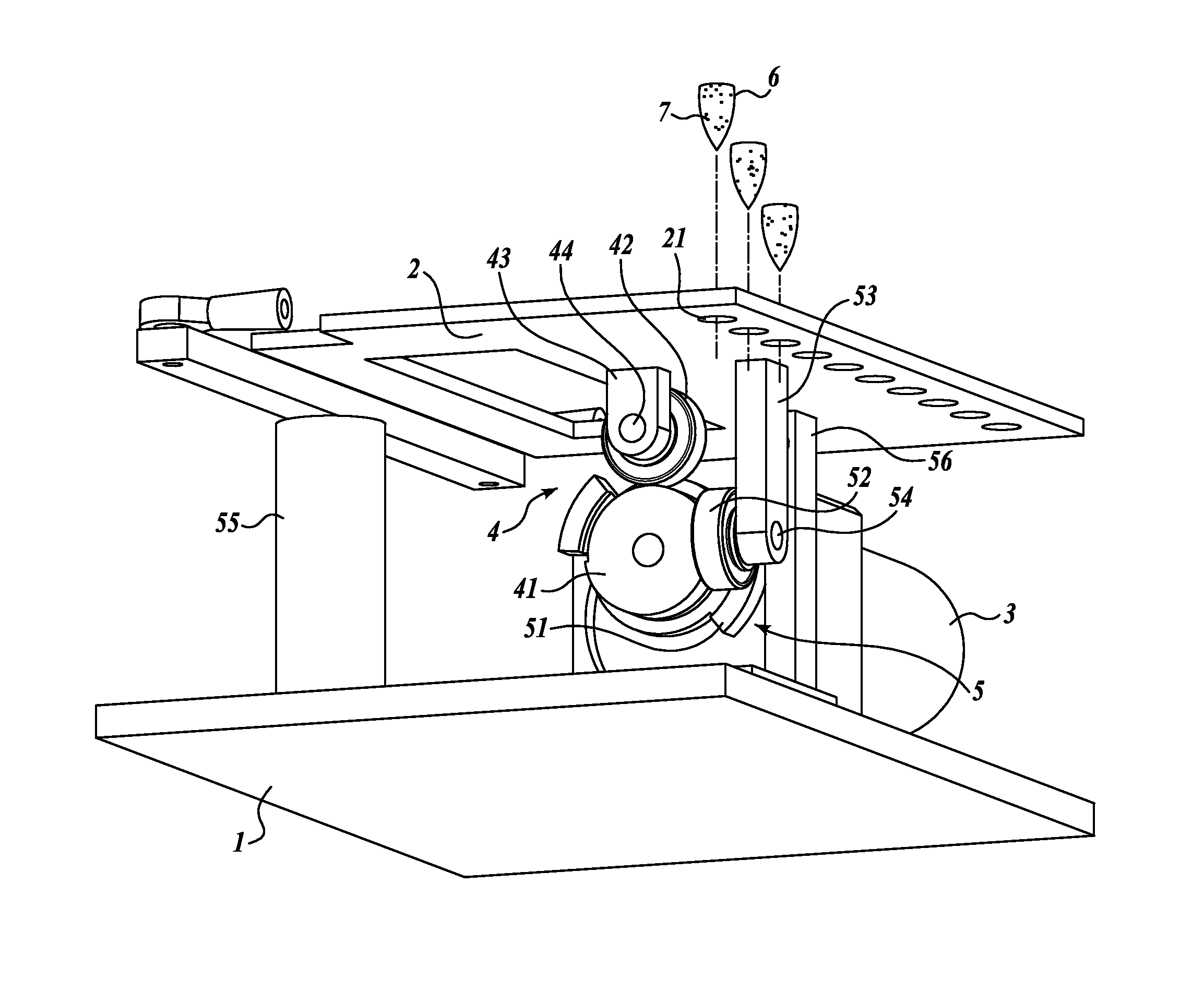

A vibrating device for uniformly filling granular ornaments includes a base, a vibration platform, a motor, a first vibrating assembly for generating vibration in an up-down direction, and a second vibrating assembly for generating vibration in a left-right direction. The vibration platform is articulated at the base and provided with multiple through-holes for holding workpieces, such as pen caps. The motor is fixedly mounted at the base. The first vibrating assembly and the second vibrating assembly both are provided between the motor and the vibration platform. The motor drives the first vibrating assembly to make the vibration platform vibrate in the up-down direction, and at the same time drives the second vibrating assembly to make the vibration platform vibrate in the left-right direction. Thus, granular ornaments can fill the cavities of pen caps located within the through holes in the vibration platform.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2012 Application Filing Year
- B43K Class
- 92 Applications Filed
- 81 Patents Issued To-Date
- 88.05 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 1 Citation Count
- B43K Class
- 13.74 % this patent is cited more than
- 10 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jun 29, 2027 |
