Occlusive device with stretch resistant member and anchor filament
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Dec 29, 2015
Grant Date -
Dec 22, 2011
app pub date -
Jun 16, 2010
filing date -
Jun 16, 2010
priority date (Note) -
In Force
status (Latency Note)
Importance
|
US Family Size
|
Non-US Coverage
|
|
Patent Longevity
|
Forward Citations
|
Abstract

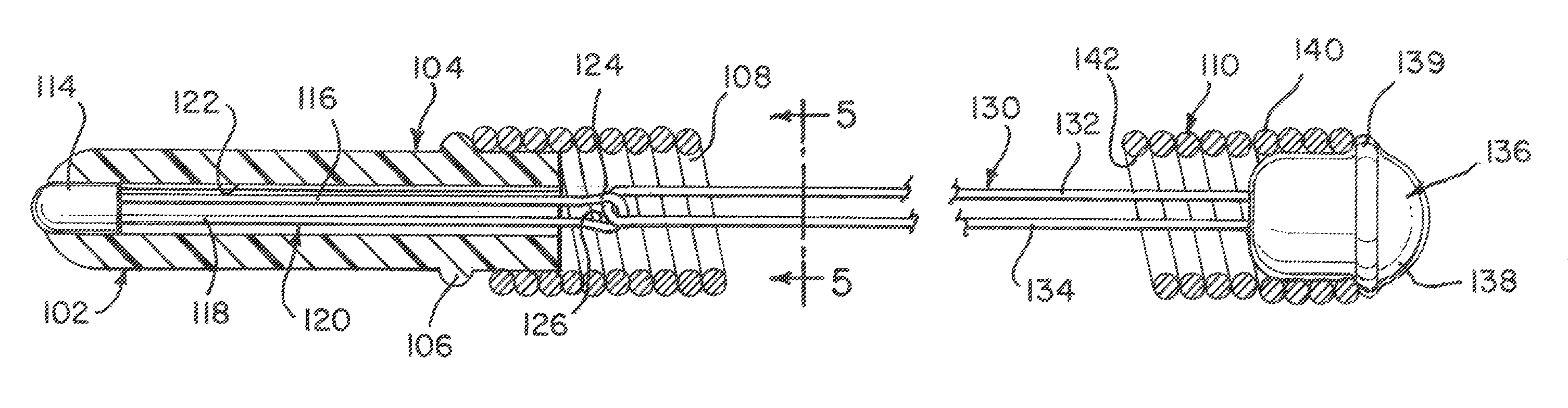

A stretch-resistant occlusive device, and method of manufacturing such a device, having a helically wound coil defining a coil lumen extending along the entire axial length of the coil from a proximal end portion to a distal end portion. The device further includes a headpiece having a proximal end, a distal end attached to the proximal end portion of the coil, and a headpiece lumen extending between the proximal and distal ends of the headpiece. An anchor filament extends through the headpiece lumen, has at least one proximal end secured to the proximal end of the headpiece, and has a distal portion defining an eye positioned distal to the distal end of the headpiece. A stretch resistant member is positioned within the coil lumen, has a proximal portion extending through the eye, and has at least one distal end secured to the distal end of the coil.
First Claim
Other Claims data not available
Family
- No Family data available.
International Classification(s)
- 2010 Application Filing Year
- A61B Class
- 7807 Applications Filed
- 6442 Patents Issued To-Date
- 82.52 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- A61B Class
- 0 % this patent is cited more than
- 10 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jun 29, 2027 |
