Guidance method and apparatus
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Dec 15, 2015
Grant Date -
Jun 20, 2013
app pub date -
Aug 23, 2011
filing date -
Aug 23, 2010
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

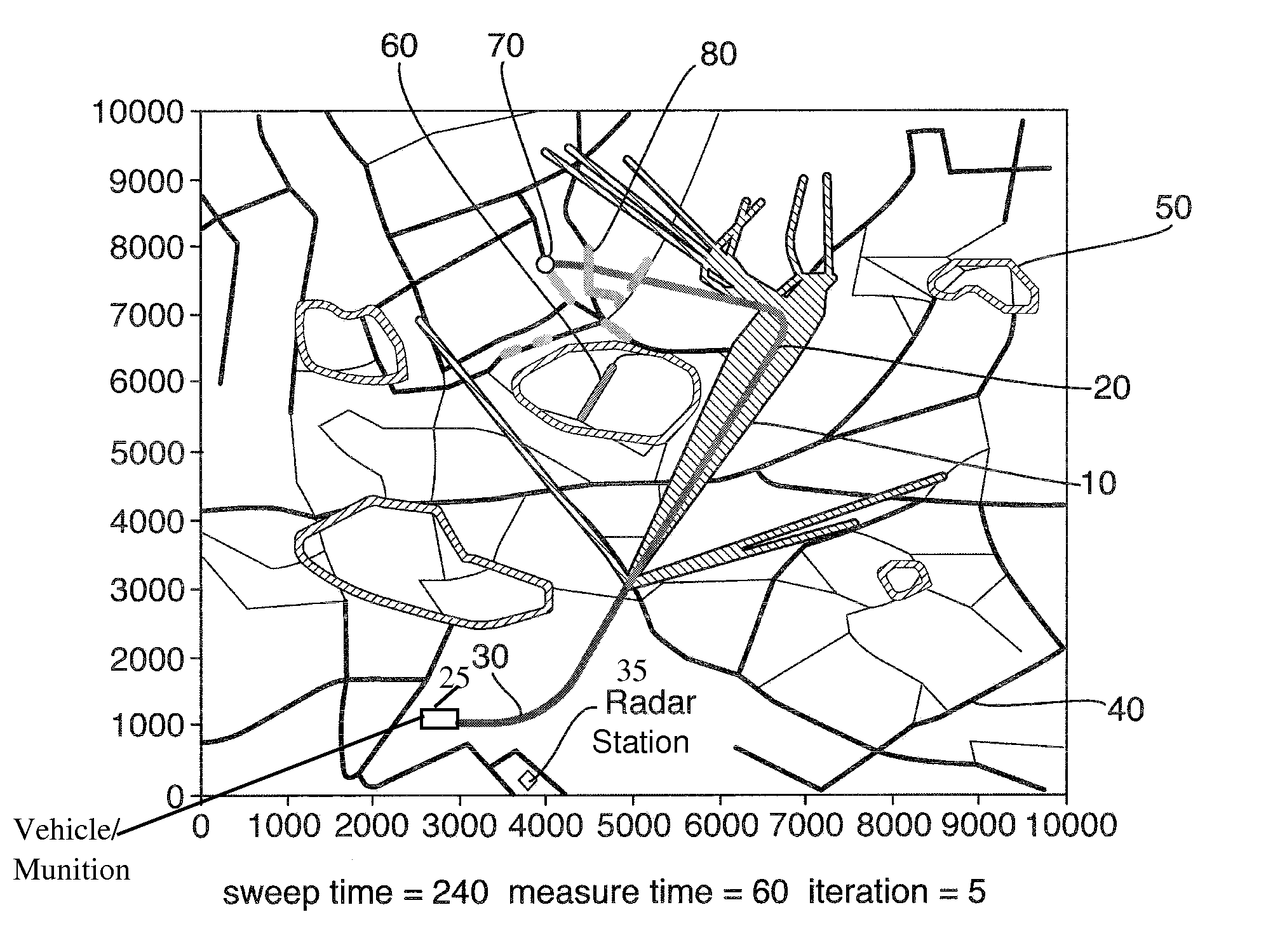

A method of guiding a pursuer to a target is provided, and is of particular use when the possible target location is described by non-Gaussian statistics. Importantly, the method takes into account the fact that different potential target tracks in the future have significantly different times to go. That can give rise to emergent behavior, in which the guidance method covers several possible outcomes at the same time in an optimal way. An example embodiment of the method combines Particle Filter ideas with Swarm Optimization techniques to form a method for generating guidance commands for systems with non-Gaussian statistics. That example method is then applied to a dynamic mission planning example, to guide an airborne pursuer to a ground target travelling on a network of roads where the pursuer has no-go areas, to avoid collateral damage.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2011 Application Filing Year
- F41G Class
- 181 Applications Filed
- 142 Patents Issued To-Date
- 78.46 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 2 Citation Count
- F41G Class
- 1.75 % this patent is cited more than
- 10 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jun 15, 2027 |
