Bottom rail level adjustor
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Dec 15, 2015
Grant Date -
Aug 27, 2015
app pub date -
Feb 25, 2014
filing date -
Feb 25, 2014
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

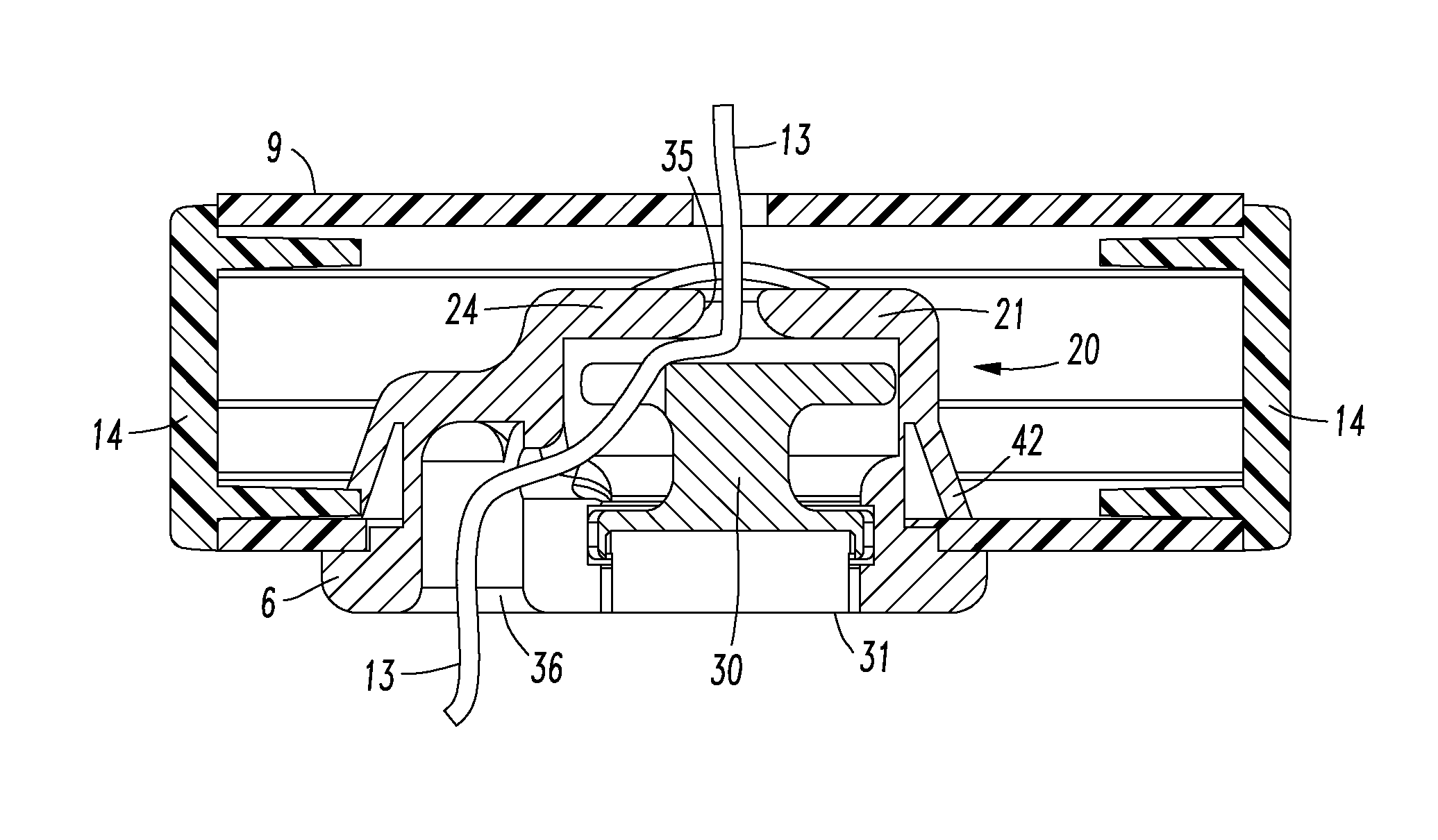

A level adjusting device for the bottom rail of a window covering is disclosed. This device has a housing having a base, a top and a sidewall extending between the base and the top. The top has an opening through which a lift cord passes. The base has a first opening through which a lift cord passes and a second opening. A spindle is positioned within the housing, such that the bottom end of the spindle is positioned over the second opening in the bottom of the housing. That bottom end is configured to receive a tool for turning the spindle. The spindle has a peripheral edge with spaced apart notches that are engaged by a projection extending from the housing. Turning the spindle causes the lift cord to be wound around or unwound from the spindle which shortens or lengthens that lift cord to level the bottom rail.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2014 Application Filing Year
- E06B Class
- 744 Applications Filed
- 628 Patents Issued To-Date
- 84.41 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 6 Citation Count
- E06B Class
- 14.65 % this patent is cited more than
- 10 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jun 15, 2027 |
