Machining apparatus
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Dec 15, 2015
Grant Date -
Jun 12, 2014
app pub date -
Dec 9, 2013
filing date -
Dec 7, 2012
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

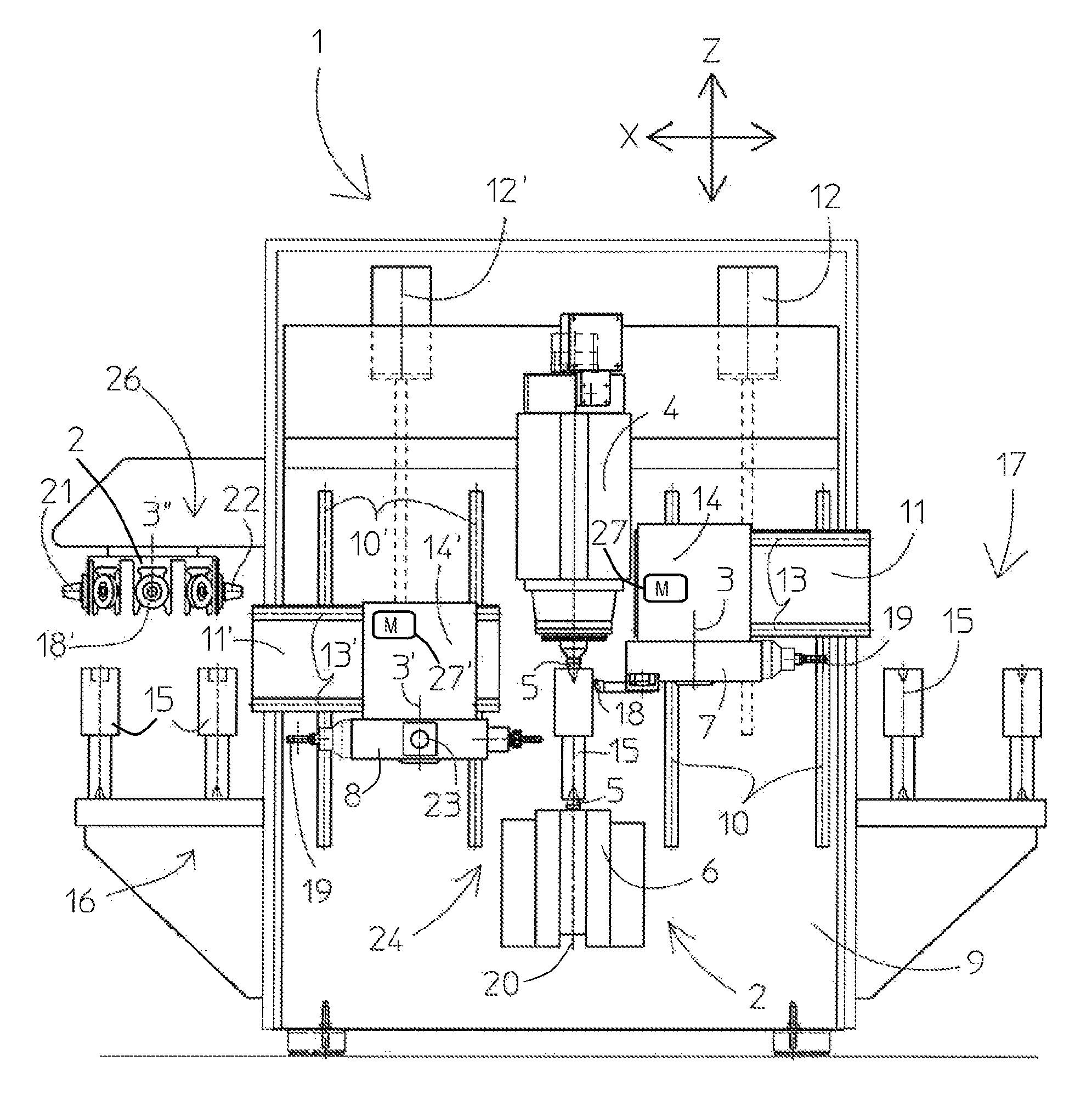

A frame defines a workpiece-transfer station, a machining station, and a tool station all centered on a common vertical plane. A carousel in the tool station carries a plurality of tools having shanks. A slide movable vertically and horizontally in the plane carries a tool head rotatable about a vertical axis itself having a tool socket adapted to fit shanks of the tools and a workpiece grab. This tool head can move horizontally in the plane to pick up and drop off tools and move workpieces between the transfer and the machining station, and can also move vertically during machining of a workpiece rotating in the machining station.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2013 Application Filing Year
- B23Q Class
- 473 Applications Filed
- 407 Patents Issued To-Date
- 86.05 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 3 Citation Count
- B23Q Class
- 19.75 % this patent is cited more than
- 10 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jun 15, 2027 |
