Sight adapter for handheld mortar system
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Dec 8, 2015
Grant Date -
Aug 20, 2015
app pub date -
Aug 21, 2012
filing date -
Nov 7, 2011
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

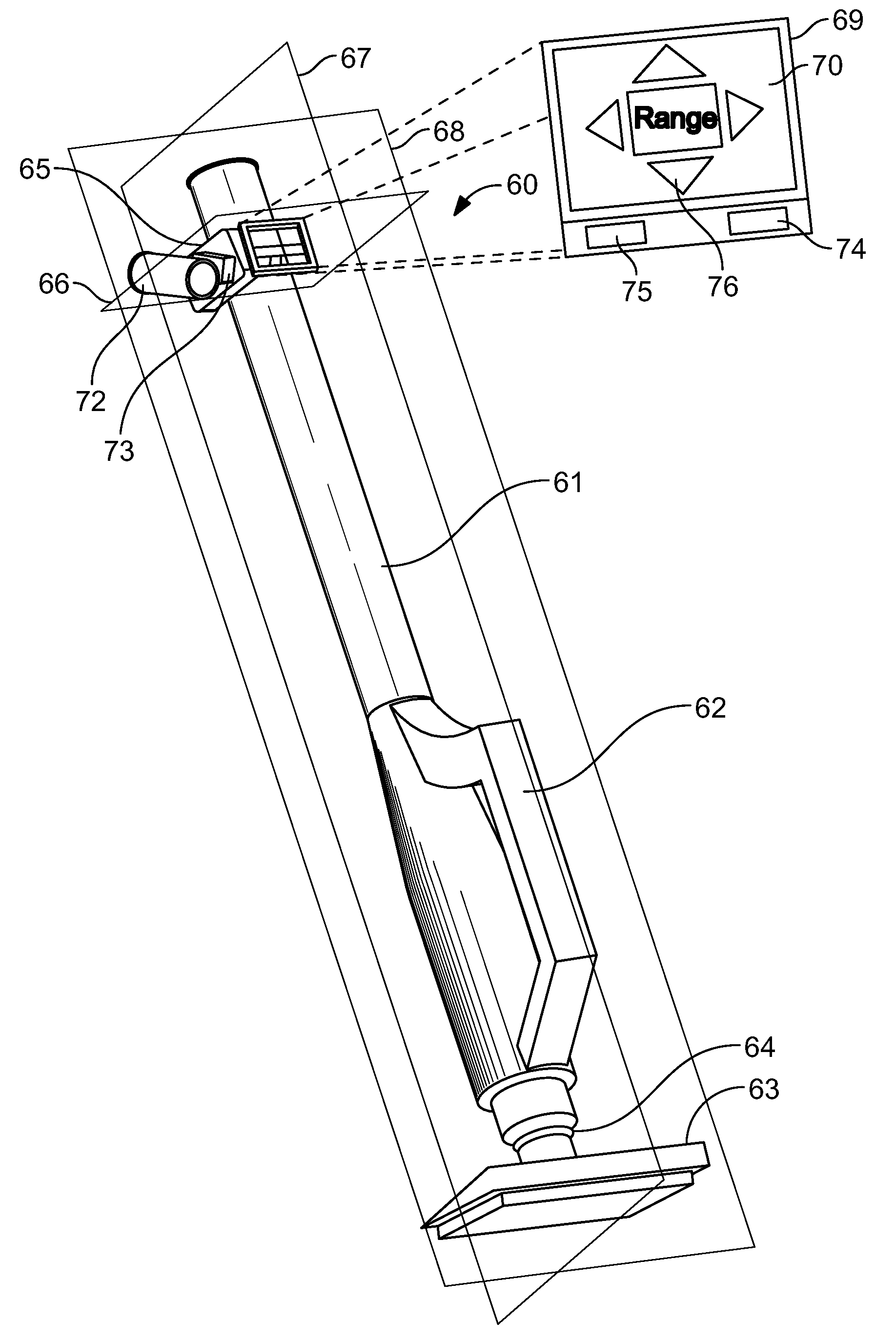

A sight adapter for a handheld mortar that is secured directly to the mortar tube and provides a standardized mounting system for a weapon sight. The sight adaptor is for battlefield mortars not having a bipod. The sight adaptor of the current invention can be easily retrofit onto any handheld field mortar and includes a capability for determining projectile firing range and for correcting changes in the inclination of the mortar tube caused by rotation of the mortar tube on the ball joint of the base plate. The sight adapter a tilt sensor and provides for quick, easy and accurate targeting of a handheld mortar by comparing the target range determined from the sighting device with target range determined using projectile ballistic data and providing simple aim correction indicators to the mortarman.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2012 Application Filing Year
- F41F Class
- 25 Applications Filed
- 23 Patents Issued To-Date
- 92 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 4 Citation Count
- F41F Class
- 17.86 % this patent is cited more than
- 10 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jun 8, 2027 |
