Pipeline inspection apparatus
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Dec 8, 2015
Grant Date -
Jan 16, 2014
app pub date -
Jul 16, 2013
filing date -
Jul 16, 2012
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

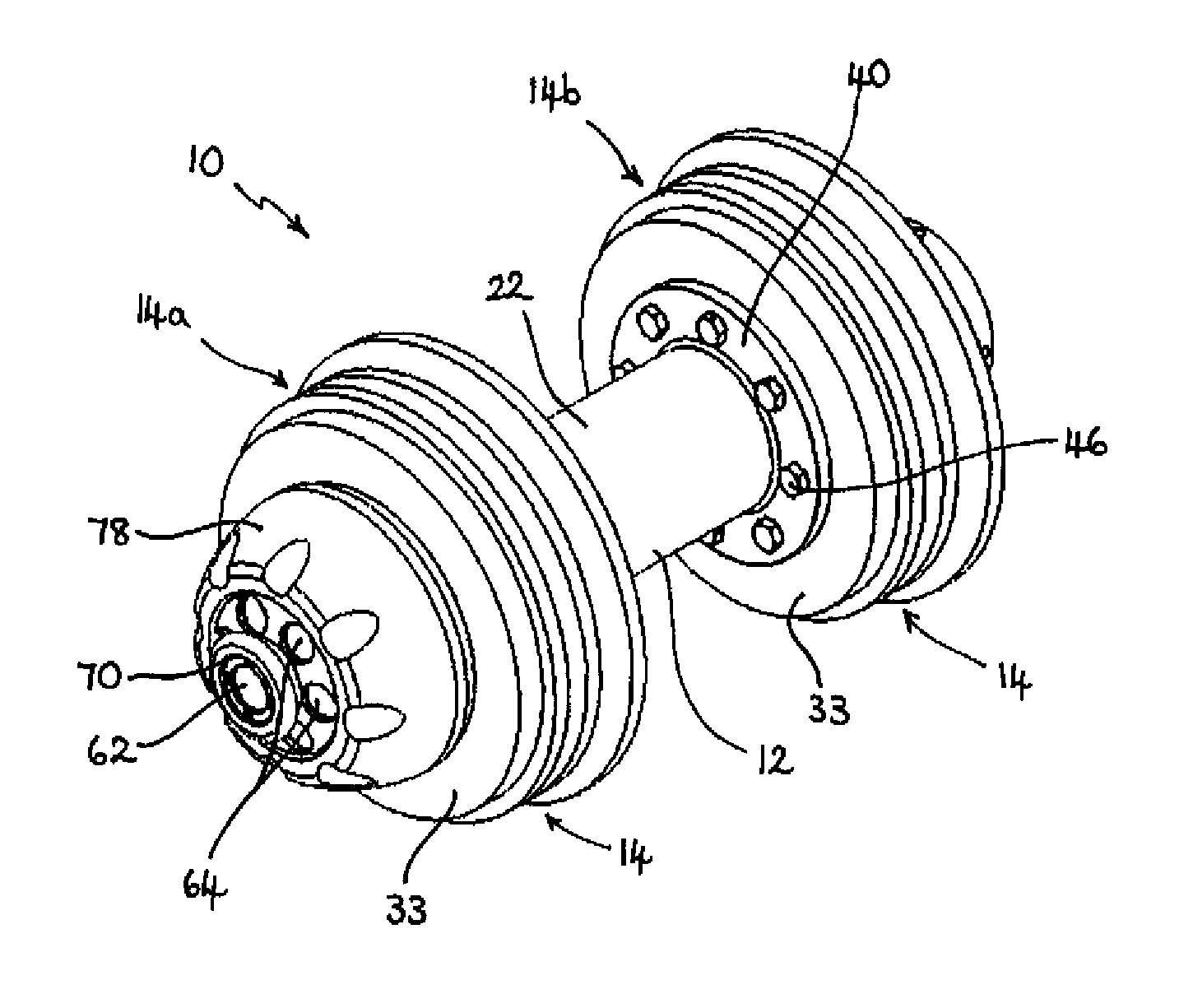

This invention relates to a pipeline inspection apparatus and to a method of inspecting the internal surfaces of a pipeline using a pipeline inspection apparatus. A pipeline inspection apparatus comprises a main body having a front end and a rear end relative to a direction of travel of the apparatus along a pipeline in use; sealing means for sealing against an internal surface of the pipeline, the sealing means being attached to the main body; an imaging module mounted proximate the front end of the main body, the imaging module comprising a camera and a light source, the light source being arranged to emit light in a direction towards the internal surface of the pipeline, and the camera being arranged such that, in use, the camera captures image data of the internal surface of the pipeline; and control circuitry located within the main body, the control circuitry including a power supply and memory means for storing data captured by said camera, wherein the sealing means forms a seal against the internal surface of the pipeline such that, in use, a fluid flowing along the pipeline applies a driving force to the pipeline inspection apparatus to propel the apparatus along the pipeline.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 3 Citation Count
- F16L Class
- 16.56 % this patent is cited more than
- 10 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jun 8, 2027 |
