Flushing device with odour extraction
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Dec 8, 2015
Grant Date -
Jun 26, 2014
app pub date -
Dec 20, 2013
filing date -
Dec 21, 2012
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

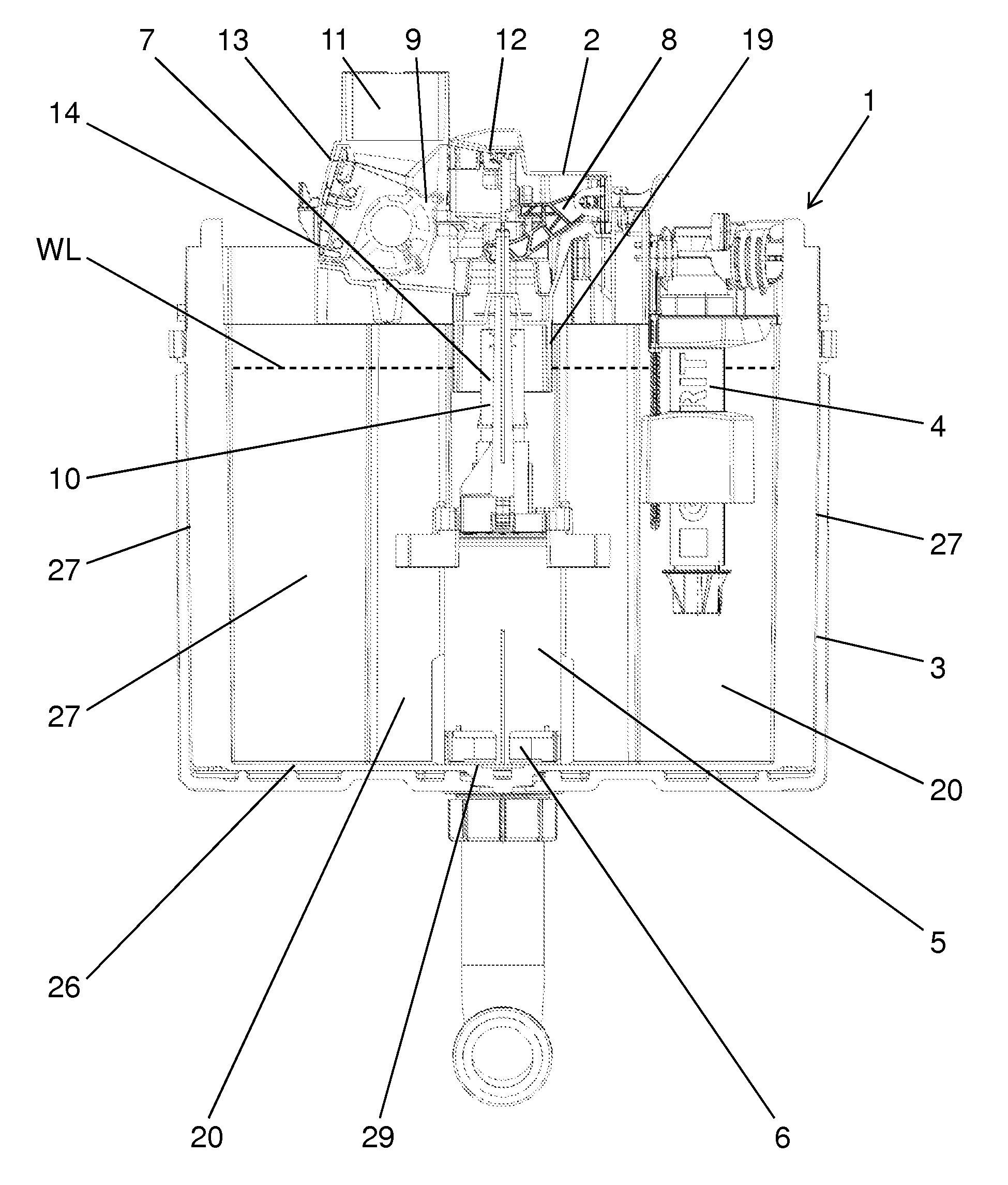

A flushing device (1) comprises an extraction device (2) for extracting odours from a sanitary device such as a toilet bowl or a urinal, a cistern (3) for holding flushing water, a fill valve (4) for filling the cistern (3) and a flush unit (5) for providing flushing water, wherein the flush unit (5) comprises a flush valve (6) with an overflow pipe (7) and an actuator element (8) for operating the flush valve (6). The extractor unit comprises a fan (9) for extracting air through an air duct (10), which extends at least partially through the cistern (3), and a filter element (11) for filtering the air, wherein the filter element (11) represents the end of the air duct (10). The actuator element (8), fan (9) and filter element (11) are mounted on a common housing (12), particularly arranged in a common housing (12).
First Claim
Other Claims data not available
Family
International Classification(s)
- 2013 Application Filing Year
- E03D Class
- 138 Applications Filed
- 133 Patents Issued To-Date
- 96.38 % Issued To-Date
