Methods and patterning devices for measuring phase aberration
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Dec 1, 2015
Grant Date -
Jan 10, 2013
app pub date -
Jun 26, 2012
filing date -
Jul 8, 2011
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

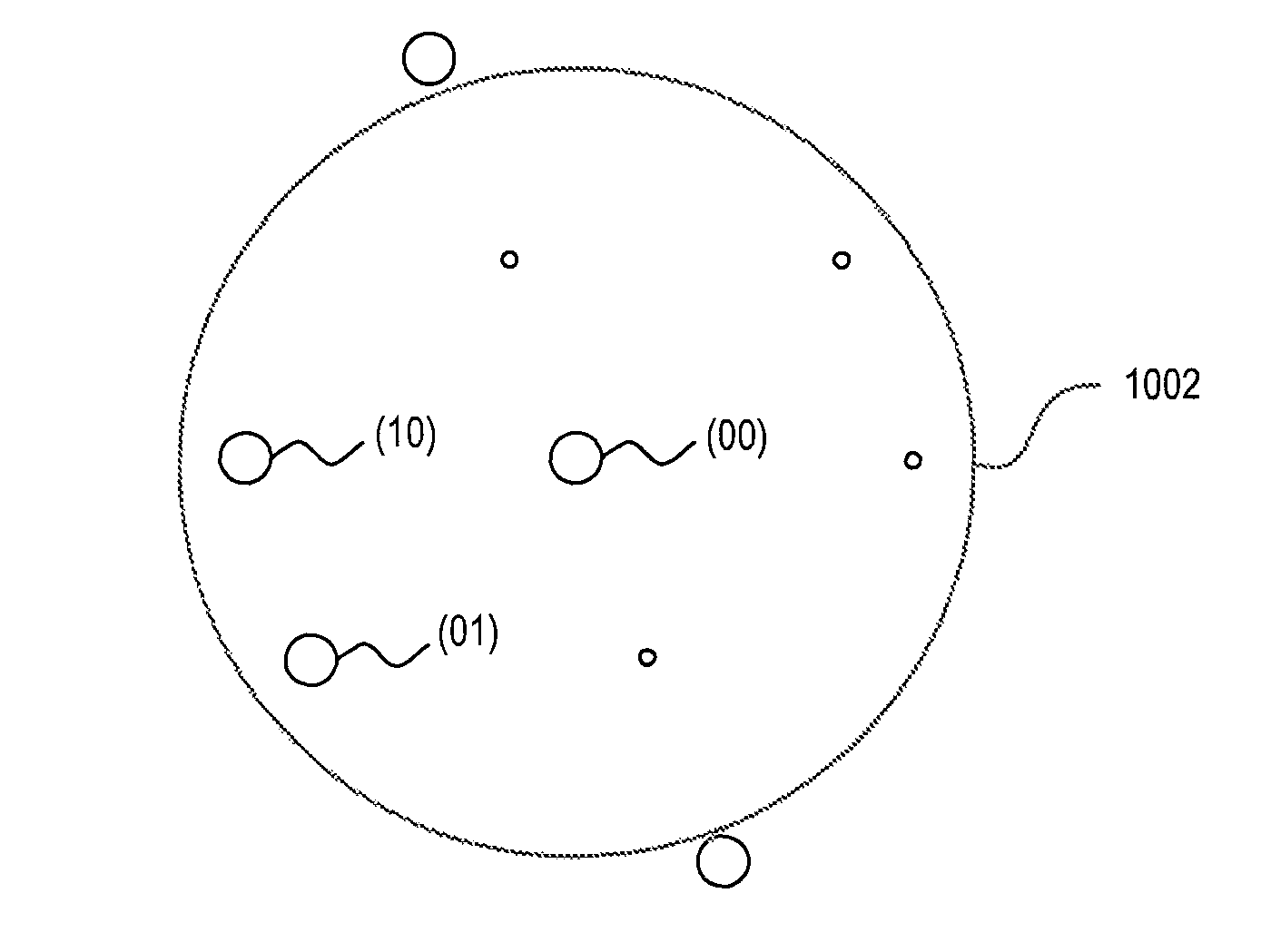

A method of measuring a phase difference between two regions in an aberration function: Reference structures are produced on a substrate using illumination that minimizes effects of phase aberration. A grating is produced on the substrate using a phase-shift grating reticle to produce, in the exit pupil, a pair of diffracted non-zero orders, while forbidding other diffracted orders and produces interference fringes formed by interference between the pair. The interference contributes to a first grating on the substrate. Overlay error is measured between the grating and the reference structure using diffraction-based or image-based overlay measurements. A phase aberration function for the exit pupil of the lithographic apparatus can then be determined from the measured overlay errors.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- G01B Class
- 0 % this patent is cited more than
- 10 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jun 1, 2027 |
