Station for a cable railway system
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Nov 24, 2015
Grant Date -
Mar 13, 2014
app pub date -
Aug 14, 2013
filing date -
Sep 13, 2012
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

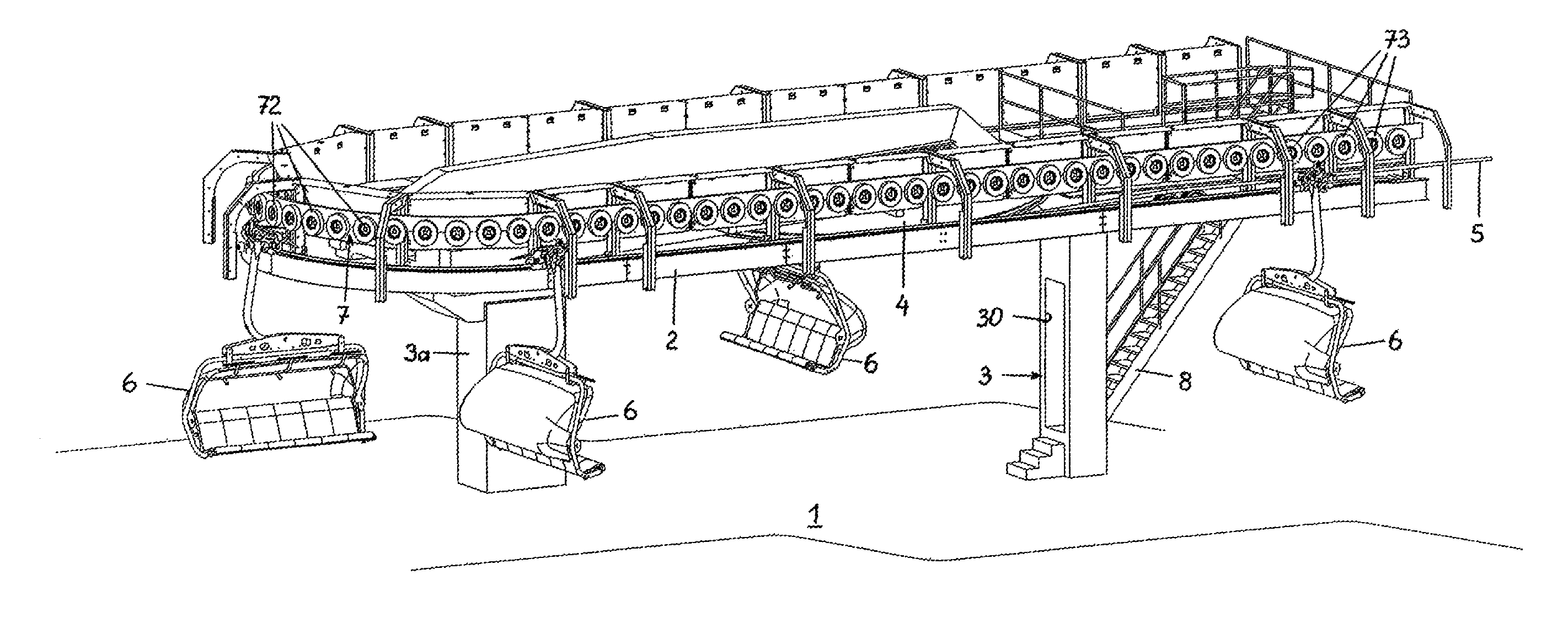

A cable railway installation has an endless conveying cable extending between terminal stations. Transport vehicles, such as chairs or gondolas, are coupleable to the conveying cable. In the two terminal stations the cable is guided over headwheels and, in optionally provided intermediate stations, it is guided over diverting pulleys, diverting rollers or the like. The transport vehicles entering the terminal stations are uncoupled from the conveying cable, conveyed through the stations by guide tires and then coupled to the conveying cable for exiting the stations. A load bearing structure, which carries components such as the headwheels, diverting pulleys and rollers, and the guide tires, is borne by at least one support disposed centrally between the paths of motion of the transport vehicles. An ascent leads up to the load bearing structure. The support carrying the load bearing structure is formed with a through passage through which the ascent is routed.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2013 Application Filing Year
- B61B Class
- 60 Applications Filed
- 54 Patents Issued To-Date
- 90 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- B61B Class
- 0 % this patent is cited more than
- 10 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | May 24, 2027 |
