Telescoping strut
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Nov 17, 2015
Grant Date -
Nov 14, 2013
app pub date -
May 14, 2012
filing date -
May 14, 2012
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

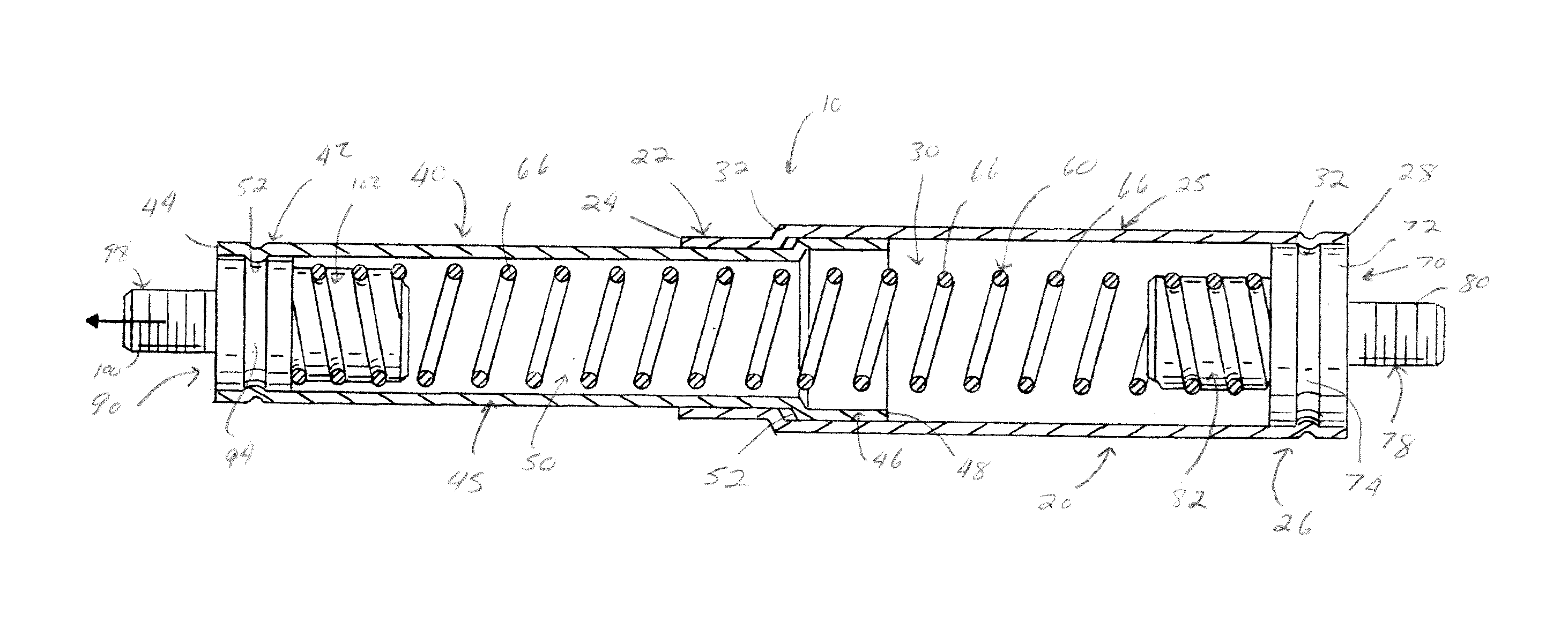

A spring system that has first and second housings and a first mechanical spring connected to the first and second housings. The first and second housings each have a front portion having a front end and rear portion having a rear end and an internal chamber. The front end of the second housing is telescopically inserted into the internal chamber of the first housing. The first mechanical spring is at least partially positioned in the internal chamber of the first and second housings. The first end of the first mechanical spring is connected to a first connection arrangement in the first housing. The second end of the first mechanical spring is connected to a second connection arrangement in the second housing. The first and/or second connection arrangement threadedly engages the first mechanical spring.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2012 Application Filing Year
- B60G Class
- 341 Applications Filed
- 278 Patents Issued To-Date
- 81.53 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 7 Citation Count
- B60G Class
- 8.51 % this patent is cited more than
- 10 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | May 17, 2027 |
