Recovery system using fluid coupling on power generating system
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Nov 17, 2015
Grant Date -
Nov 1, 2012
app pub date -
Sep 28, 2010
filing date -
Jan 28, 2010
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

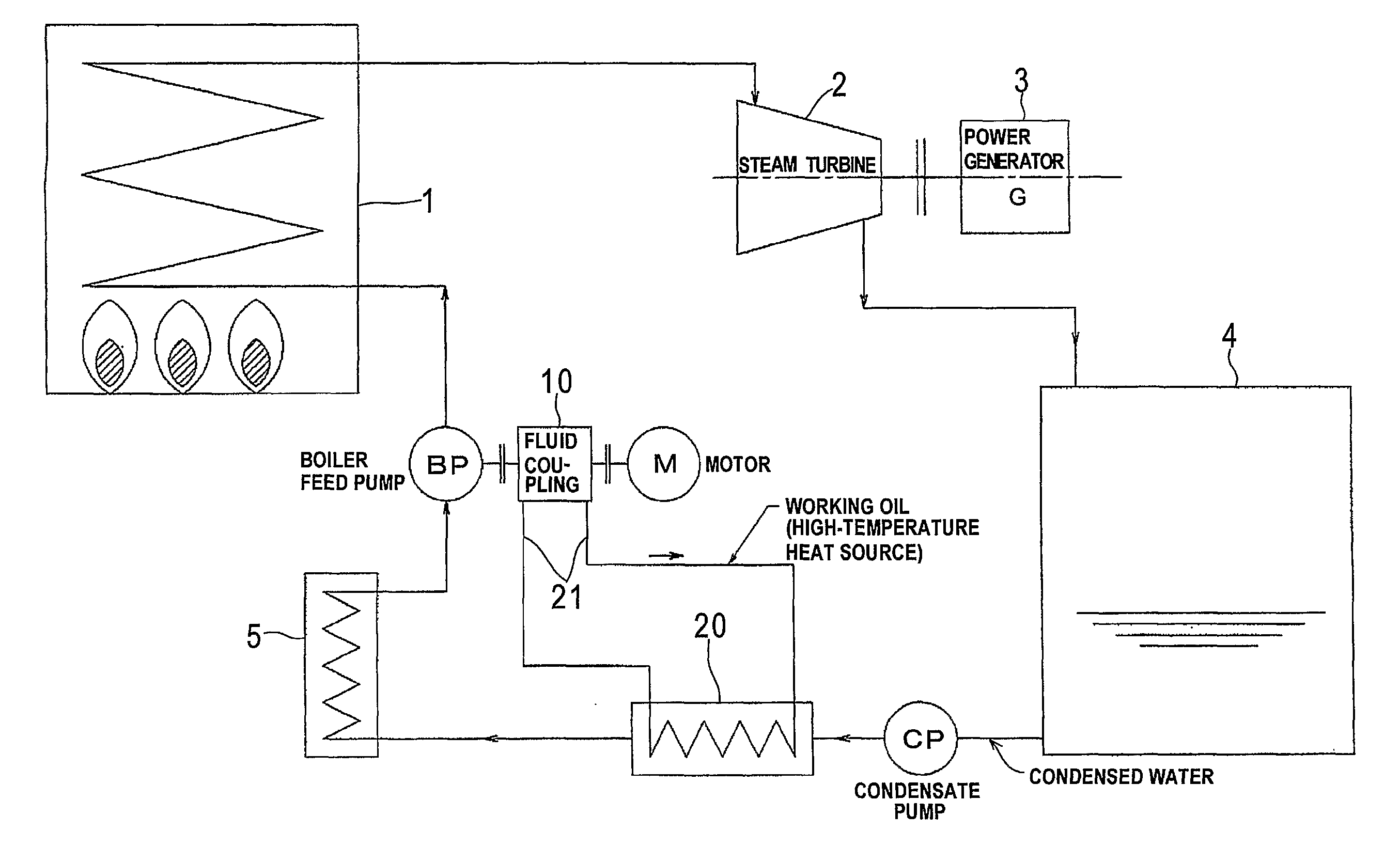

A power generating system can recover exhaust heat from a working fluid of a fluid coupling and utilize the recovered exhaust heat to generate power. In the power generating system, water is supplied to a boiler by a feed pump to generate steam, a steam turbine is driven by using the generated steam to generate power, the steam discharged from the steam turbine is condensed in a condenser, and then the condensed water is resupplied to the boiler by the feed pump. The power generating system includes a fluid coupling provided between the feed pump and a motor to transmit a torque from the motor to the feed pump by a working fluid, and the condensed water supplied from the condenser is heated by the working fluid discharged from the fluid coupling.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2010 Application Filing Year
- F01K Class
- 209 Applications Filed
- 150 Patents Issued To-Date
- 71.78 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 1 Citation Count
- F01K Class
- 18.37 % this patent is cited more than
- 10 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | May 17, 2027 |
