Window shade and its control module
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Nov 17, 2015
Grant Date -
Aug 29, 2013
app pub date -
May 31, 2012
filing date -
Feb 23, 2012
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

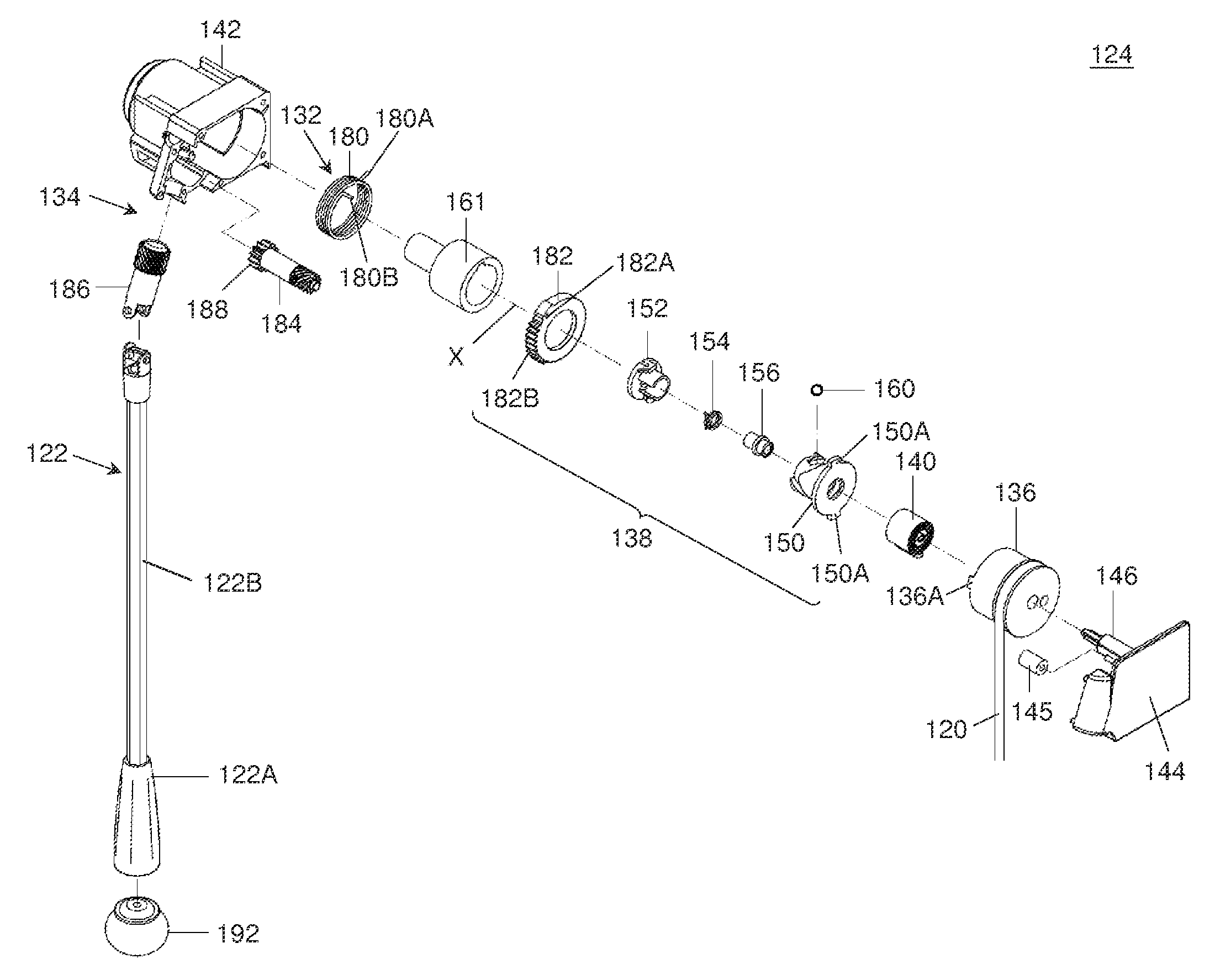

A window shade comprises a head rail, a shading structure, a bottom part, suspension cords connected with cord winding units, and a control module. The control module includes a drive axle assembled with the cord winding units, a sleeve affixed with the drive axle, an arrester assembled around the drive axle, and a release unit. The arrester has a locking state in which the arrester blocks a rotational displacement of the sleeve and the drive axle to keep the bottom part at a desired position, and an unlocking state in which rotation of the sleeve and the drive axle is allowed to lower the bottom part by gravity action. The release unit includes an actuator that is operatively connected with the arrester and has an elongated shape. The actuator can rotate about its lengthwise axis to turn the arrester from the locking to unlocking state.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2012 Application Filing Year
- E06B Class
- 521 Applications Filed
- 376 Patents Issued To-Date
- 72.17 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 14 Citation Count
- E06B Class
- 86.11 % this patent is cited more than
- 10 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | May 17, 2027 |
