Exclusive OR (XOR) lamp driver and lamp

Number of patents in Portfolio can not be more than 2000

United States of America Patent

PATENT NO 9187032
APP PUB NO 20130200792A1
SERIAL NO

13837876

Stats

ATTORNEY / AGENT: (SPONSORED)

Importance

Loading Importance Indicators... loading....

Abstract

See full text

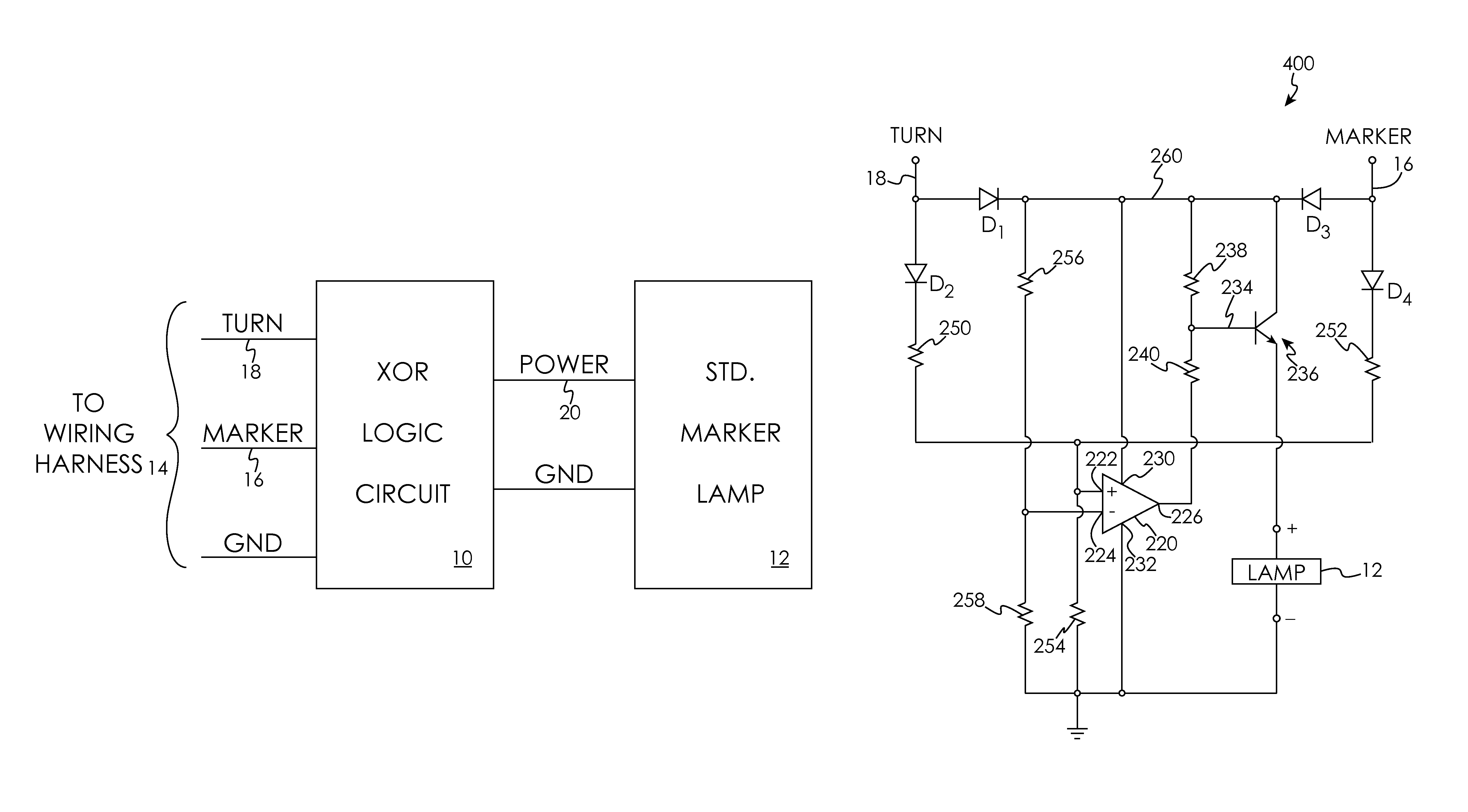

A lamp and lamp driver are disclosed, in which single intensity marker lamps that are desired to be flashed can be connected to a lamp driver employing an exclusive OR (XOR) logic circuit. In one application, this lamp driver is coupled to a vehicle turn function wire and marker function wire, and a plurality of marker lamps in a row can be of the same style, but one lamp can be flashed in the row of marker lamps. In some embodiments, if all of the marker lamps are on, the lamp being driven by the XOR driver circuit will flash out of sequence with the turn signal flash. If all of the marker lamps are off, the lamp being driven by the XOR driver circuit will flash in sequence with the turn signal flash. Other embodiments are disclosed.
