Assist grip
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Nov 17, 2015
Grant Date -
Aug 20, 2015
app pub date -
Apr 17, 2013
filing date -
Jun 12, 2012
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

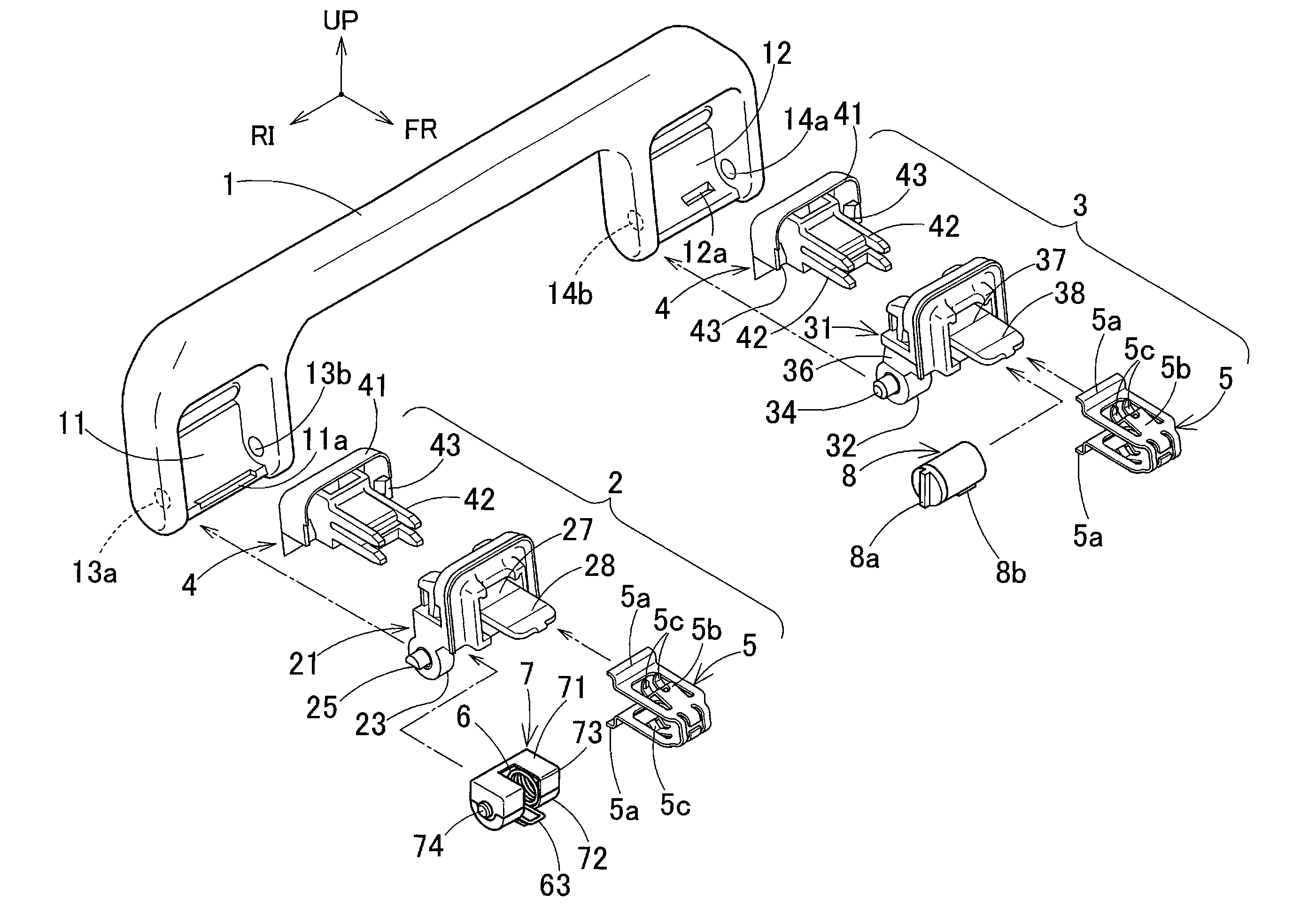

In a pivot support portion of a hinge assembly of an assist grip, an outer support and an inner support are provided at a distance from each other. Between the inner support and the outer support, a double torsion spring stored in a spring case is inserted, and the grip body is biased toward a non-use position side by the double torsion spring. An opening is formed in a middle portion of the spring case. Legs at both sides of the double torsion spring are retained at the inside of the spring case. A middle leg of the double torsion spring projects from the opening of the spring case to be retained by a part of the grip body.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2013 Application Filing Year
- B60N Class
- 837 Applications Filed
- 742 Patents Issued To-Date
- 88.65 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 4 Citation Count
- B60N Class
- 6.33 % this patent is cited more than
- 10 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | May 17, 2027 |
