Antenna fixing structure
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Nov 10, 2015
Grant Date -
Oct 1, 2015
app pub date -
Jun 9, 2014
filing date -
Mar 26, 2014
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

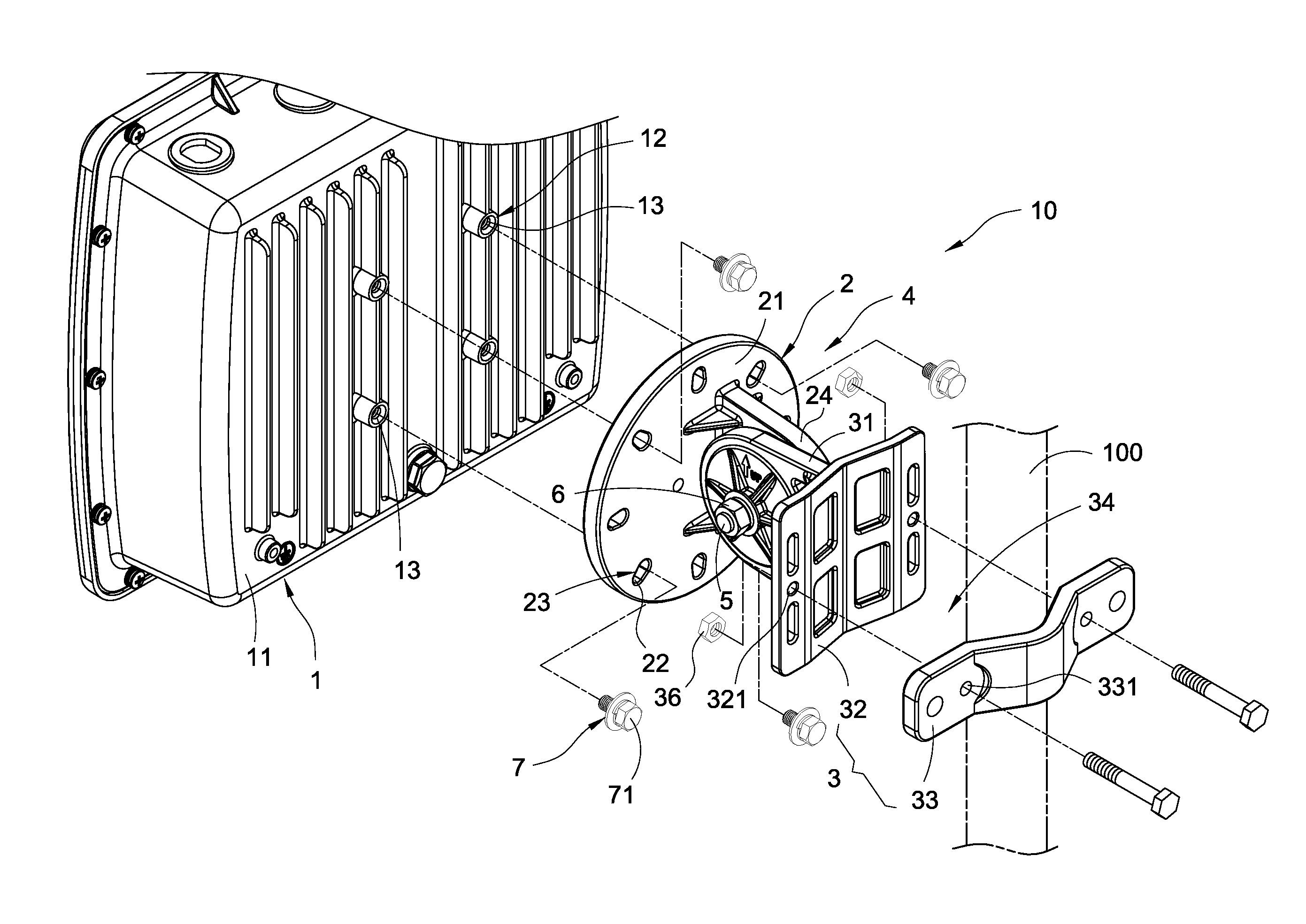

An antenna fixing structure includes an antenna box and a fixing frame. The antenna box includes a casing with a first circumference defined by a first center and a first radius, and the casing has equidistant first connecting portions disposed along the first circumference. The fixing frame includes a carrying board with a second circumference defined by a second center and a second radius, and the carrying board has equidistant second connecting portions disposed along the second circumference, so that the first connecting portions and the second connecting portions can be rotably installed with respect to the first and second centers and coupled to each other. Therefore, the antenna box can be rotated to a predetermined position and then fixed to the fixing frame, and the antenna fixing structure has the effect of adjusting the direction, position or angle of an antenna.
