Light emitting diode bulb
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Nov 10, 2015
Grant Date -
Dec 25, 2014
app pub date -
Mar 11, 2014
filing date -
Jun 24, 2013
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

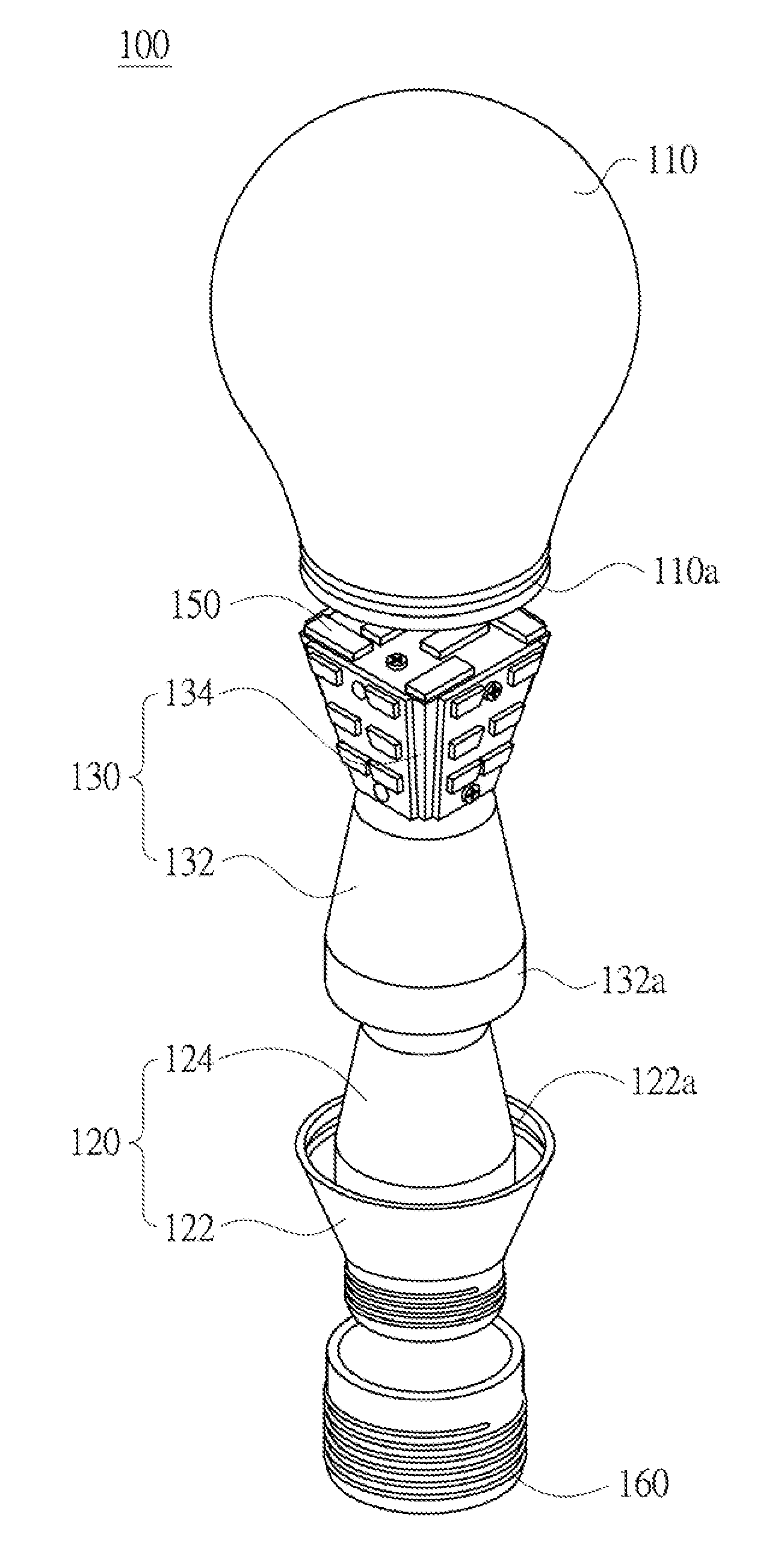

A light emitting diode bulb includes a lampshade, a lamp housing, a heat sink, a driving circuit, light emitting diode modules and a lamp cap. The lamp housing is connected to the lampshade and includes a cup-shaped casing and a heat conduction part. The heat conduction part is disposed in the cup-shaped casing. The heat sink is disposed in the lampshade and includes a heat-dissipating shell and a heat-dissipating frustum. The heat-dissipating shell covers the heat conduction part. The heat-dissipating frustum includes a top surface, a bottom surface and four side surfaces. The heat-dissipating frustum includes an axis vertical to the bottom surface. An included angle between the axis and each of the side surfaces is smaller than 90 degrees. The light emitting diode modules are adhered to the top surface and the side surfaces and connected to the driving circuit. The lamp cap is connected to the driving circuit.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2014 Application Filing Year
- F21V Class
- 3266 Applications Filed
- 2625 Patents Issued To-Date
- 80.38 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- F21V Class
- 0 % this patent is cited more than
- 10 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | May 10, 2027 |
