Hinges provided with elastic means and dampener
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Nov 10, 2015
Grant Date -
May 15, 2014
app pub date -
Jun 8, 2011
filing date -
Jun 8, 2011
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

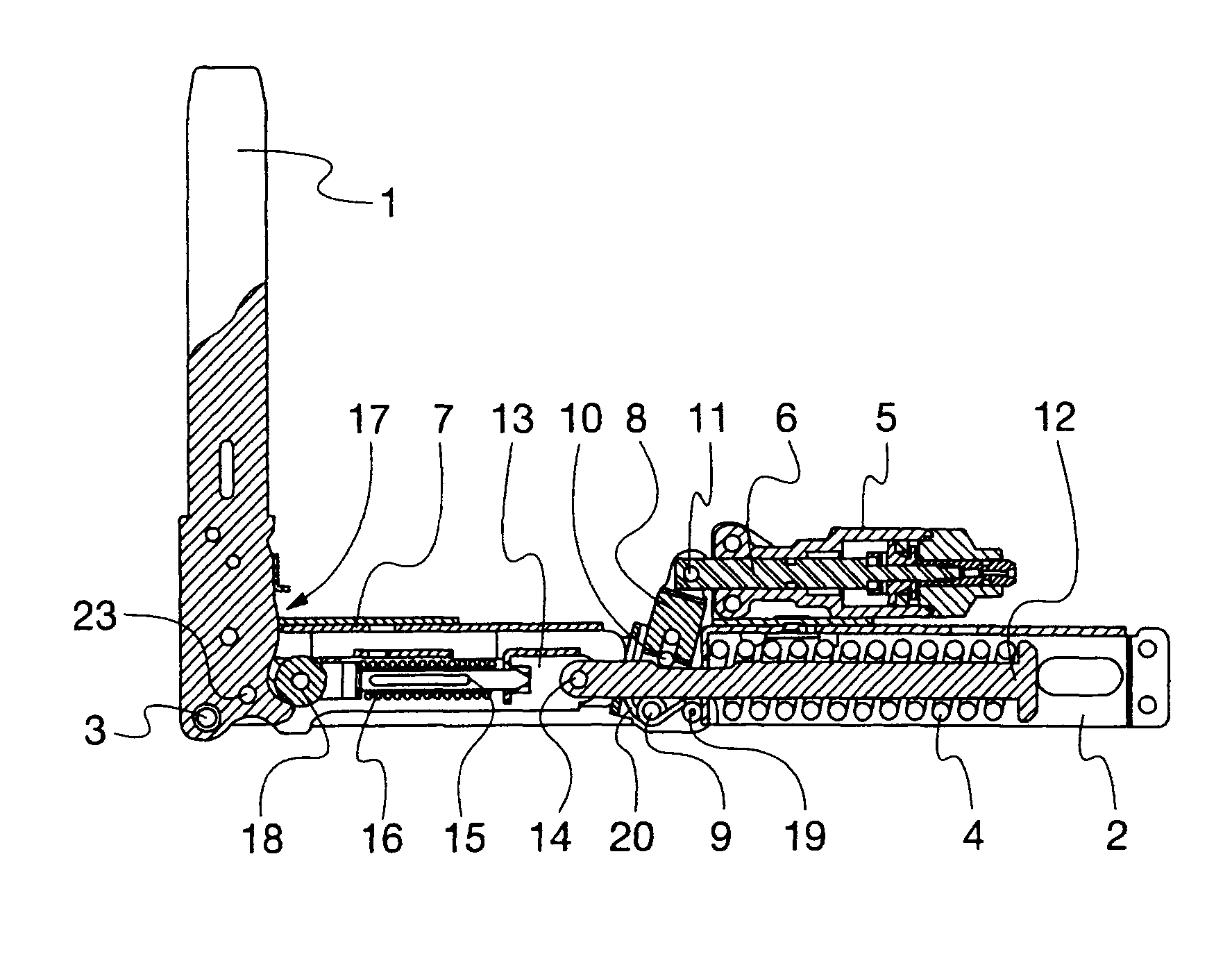

A hinge for a closing door of a compartment, of the type having a first and a second body, respectively integral to the door and to the frame of the corresponding compartment, or vice versa, and mutually hinged by at least one pin, first elastic means mounted on the second body and acting upon the first body, and at least one dampening device fixed to the second body, acting upon the first body and actuated by at least a first slider, functionally connected to the dampener, and by at least a second slider, configured for engaging, directly or indirectly, the aforesaid first body in correspondence of at least a certain angular range assumed by the first body with respect to the second body during their relative rotation, whereby the second slider is actuated in translation by the first body when engaged therewith, as well as constraining means between the first slider and the second slider. Advantagiously, the aforesaid constraining means include at least a lever pivoted to the second body, and the aforesaid first and second slider are constrained at least in rotation to one lever.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2011 Application Filing Year
- E05D Class
- 268 Applications Filed
- 164 Patents Issued To-Date
- 61.20 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 13 Citation Count
- E05D Class
- 83.57 % this patent is cited more than
- 10 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | May 10, 2027 |
