Turk's head stand
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Nov 10, 2015
Grant Date -
Nov 8, 2012
app pub date -
Dec 28, 2009
filing date -
Dec 28, 2009
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

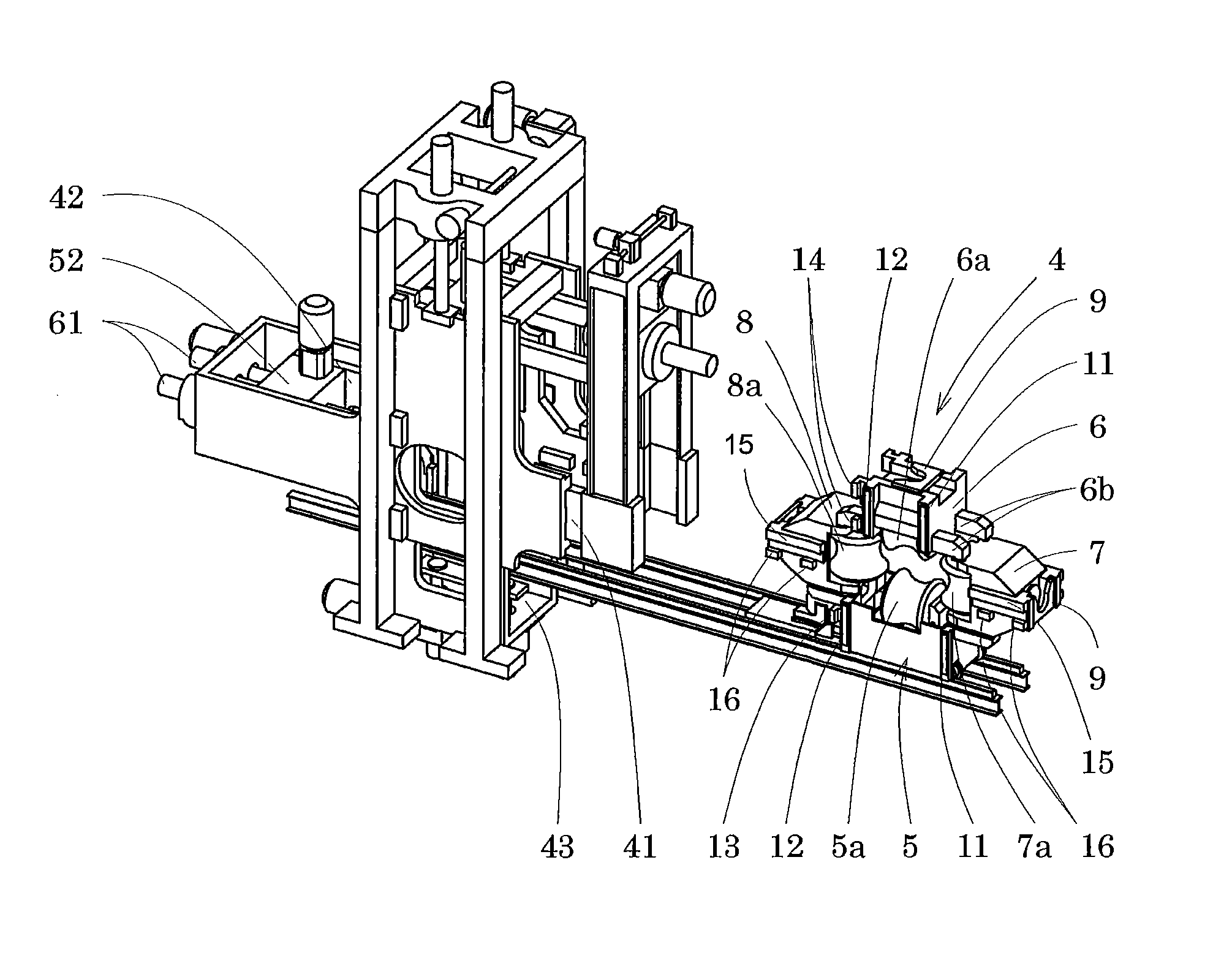

In a Turk's head stand, double inner frames are disposed inside an outer frame. A first inner frame is disposed so as to be adjusted in the vertical direction, and a second inner frame is disposed so as to be adjusted in the horizontal direction. Four-way straightening rolls and position adjusting devices are incorporated inside the second inner frame. Mechanical structures for convexo-concave engagement are disposed on faces of the respective roll chocks and yokes and the inner frames opposed to each other, thereby to guide the respective roll chocks and yokes, by utilizing descending motions of the inner frames, after connection with a pressing device has been released, to form the stack body in series, and to enable the stack body to be withdrawn from the roll stand.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2009 Application Filing Year
- B21C Class
- 99 Applications Filed
- 56 Patents Issued To-Date
- 56.57 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 1 Citation Count
- B21C Class
- 25.93 % this patent is cited more than
- 10 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | May 10, 2027 |
