System and method for monitoring asset health by dissolved gas measurement
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Nov 3, 2015
Grant Date -
Feb 27, 2014
app pub date -
Feb 1, 2013
filing date -
Feb 1, 2012
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

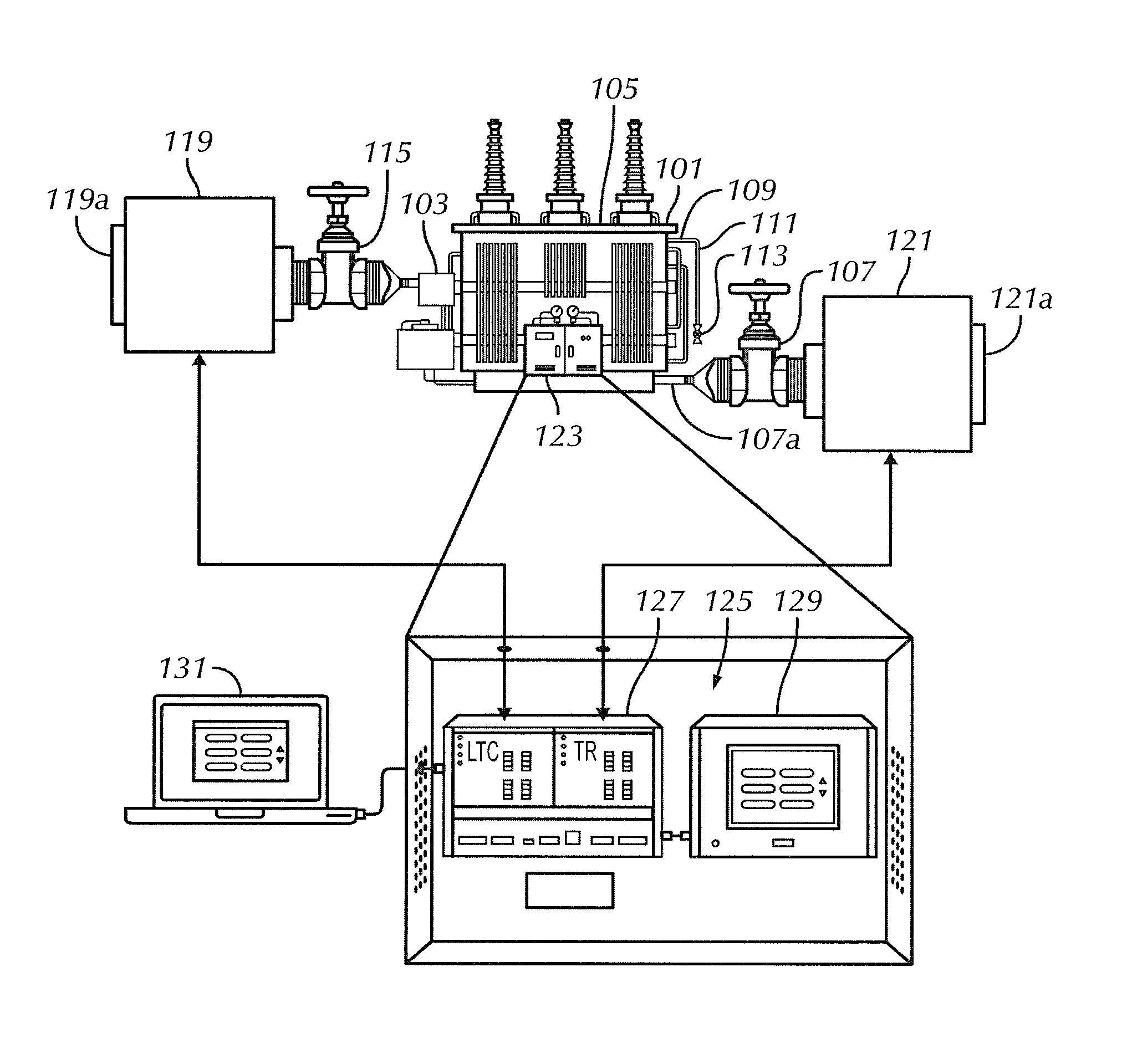

A method for analyzing gas dissolved within a fluid filled asset includes extracting the fluid from the fluid filled asset, circulating the fluid though a first fluid loop, and passing the extracted fluid along a first side of a gas permeable membrane. Gas is extracted from a second side of the gas permeable membrane and the extracted gas is circulated through a second fluid loop. The first fluid loop and the second fluid loop are separated by the gas permeable membrane. The method further includes controlling a pressure differential across the gas permeable membrane to a predetermined pressure differential and providing the extracted gas to a gas analysis unit located within the second fluid loop. The chemical makeup of the extracted gas is periodically determined using the gas analysis unit.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2013 Application Filing Year
- G01N Class
- 9056 Applications Filed
- 7640 Patents Issued To-Date
- 84.37 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 5 Citation Count
- G01N Class
- 23.45 % this patent is cited more than
- 10 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | May 3, 2027 |
