Swept conical-like profile axisymmetric circular linear shaped charge
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Nov 3, 2015
Issued Date -
N/A
app pub date -
Feb 14, 2014
filing date -
Feb 15, 2013
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

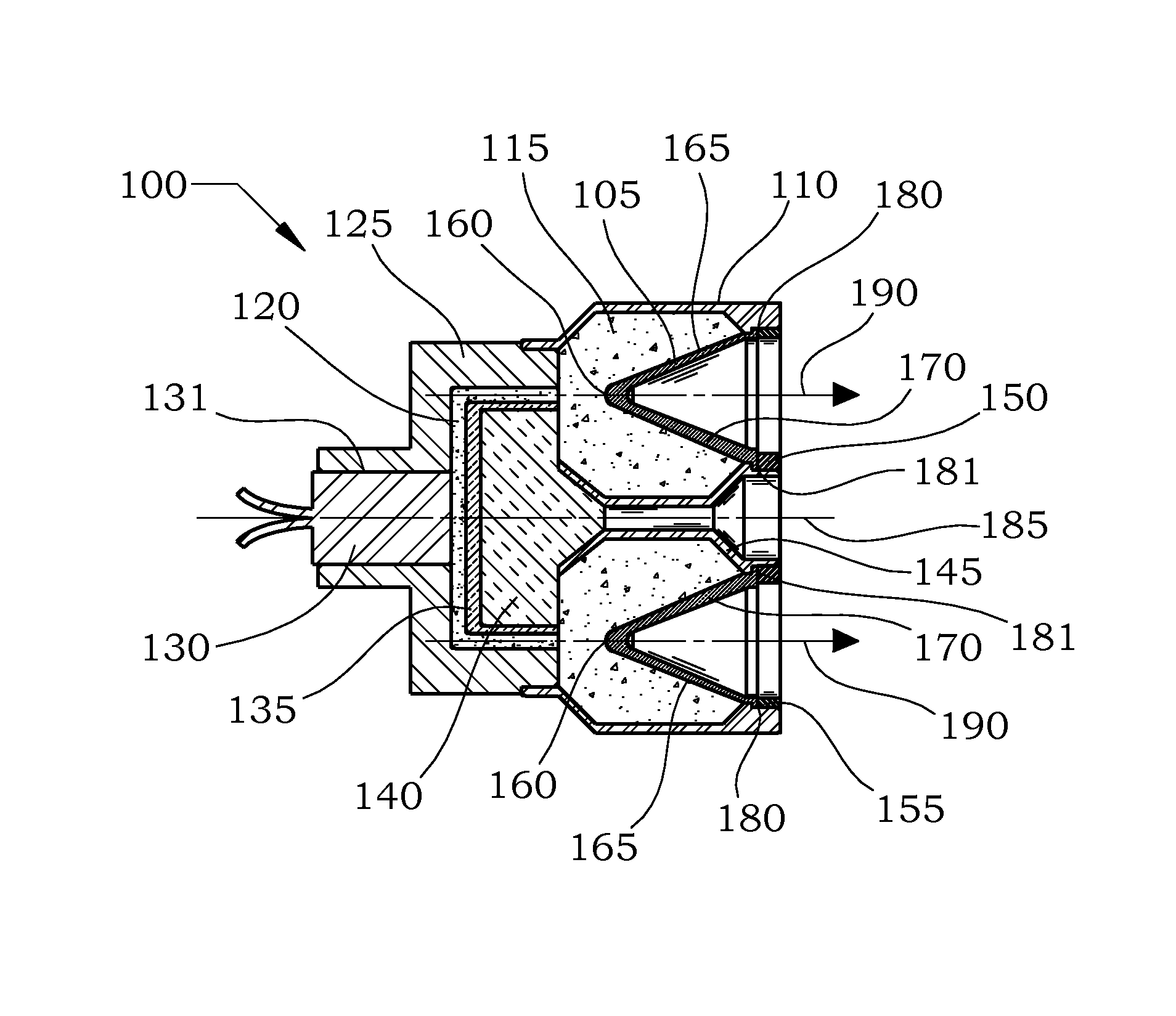

A novel shaped charge device that produces a hollow cylindrical jet capable of creating a hole in a target larger than the overall diameter of the device. In the conical family of axisymmetric circular linear shaped charge liners (Conical, Tulip, and Trumpet), this novel swept conical-like profile shaped explosive device produces a large diameter stretching hollow cylindrical jet and corresponding slug. The hollow jet is formed by peripherally initiating a high explosive (HE) that collapses the circular linear liner into the hollow cylindrical jet. The precision of the circular simultaneous peripheral initiation of the HE billet is accomplished by the use of a novel Circular Precision Initiation Coupler (CPIC). This CPIC uses a single point initiation to create a simultaneous peripheral detonation of the HE billet that collapses and drives the swept liner into a high speed stretching hollow cylindrical projectile, or more commonly called a jet in the industry.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2014 Application Filing Year
- F42B Class
- 401 Applications Filed
- 372 Patents Issued To-Date
- 92.77 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 7 Citation Count
- F42B Class
- 10 % this patent is cited more than
- 10 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | May 3, 2027 |
