Floatation separation apparatus, method of floatation separation, and method of manufacturing products using the same
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Nov 3, 2015
Grant Date -
May 10, 2012
app pub date -
Jul 15, 2010
filing date -
Jul 17, 2009
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

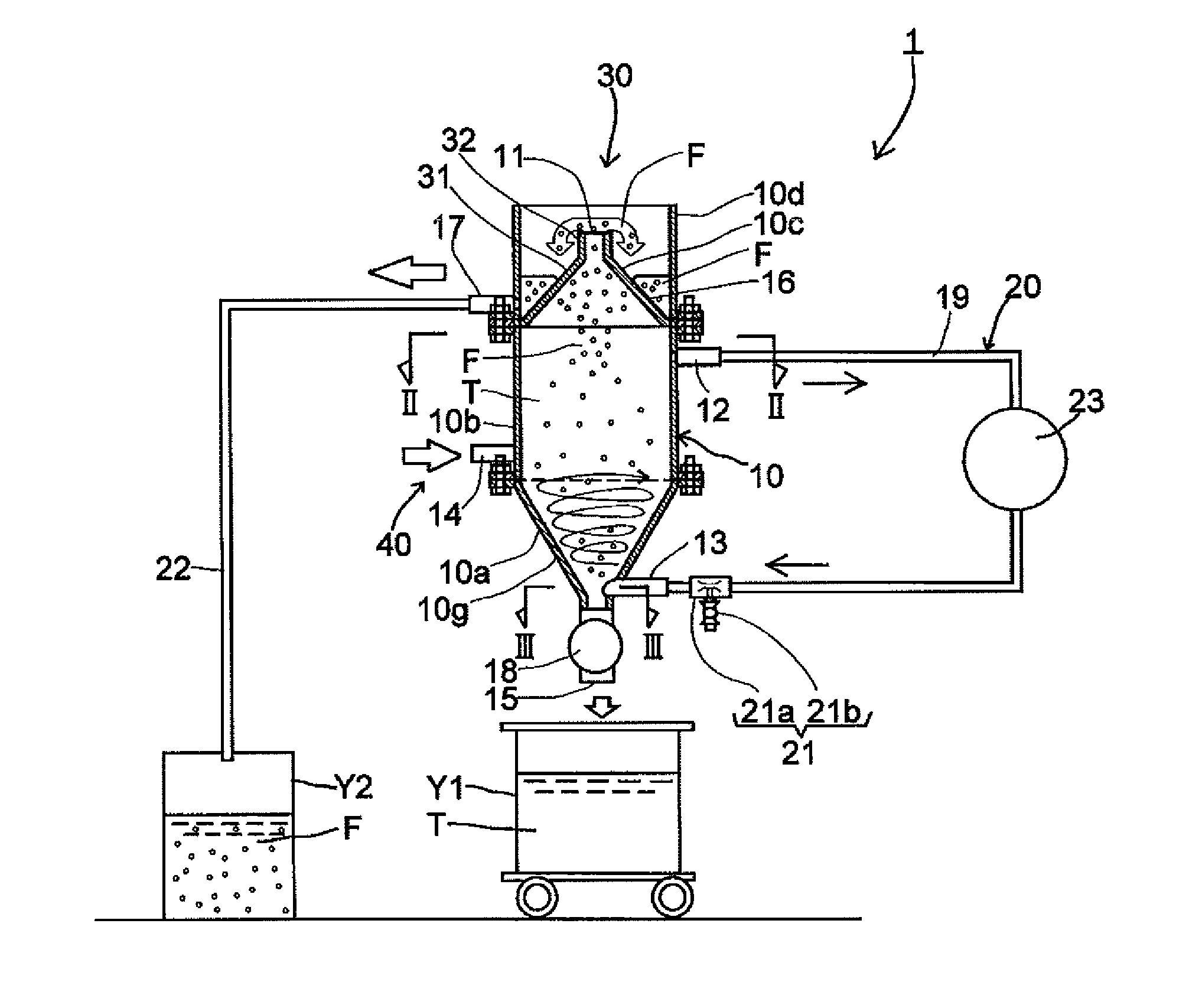

By storing a liquid to be treated in a treatment tank main body 10 having a bottom portion 10g that narrows downward, with particles of materials to be treated dispersed therein, taking out the liquid to be treated from a position lower than the liquid level of the treatment tank main body 10, and returning the liquid to the bottom portion 10g of the treatment tank main body 10, thereby circulating the liquid to be treated while forming a vortex flow within the treatment tank main body 10, and at the same time supplying air bubbles from the lower part of the treatment main unit 10, a first component contained in froths is separated from a second component, which is less susceptible to floatation, contained in the liquid to be treated.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2010 Application Filing Year
- B03D Class
- 40 Applications Filed
- 33 Patents Issued To-Date
- 82.50 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 1 Citation Count
- B03D Class
- 33.33 % this patent is cited more than
- 10 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | May 3, 2027 |
