Adjustable modular shelving system
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Nov 3, 2015
Grant Date -
Apr 23, 2015
app pub date -
Dec 31, 2014
filing date -
May 21, 2012
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

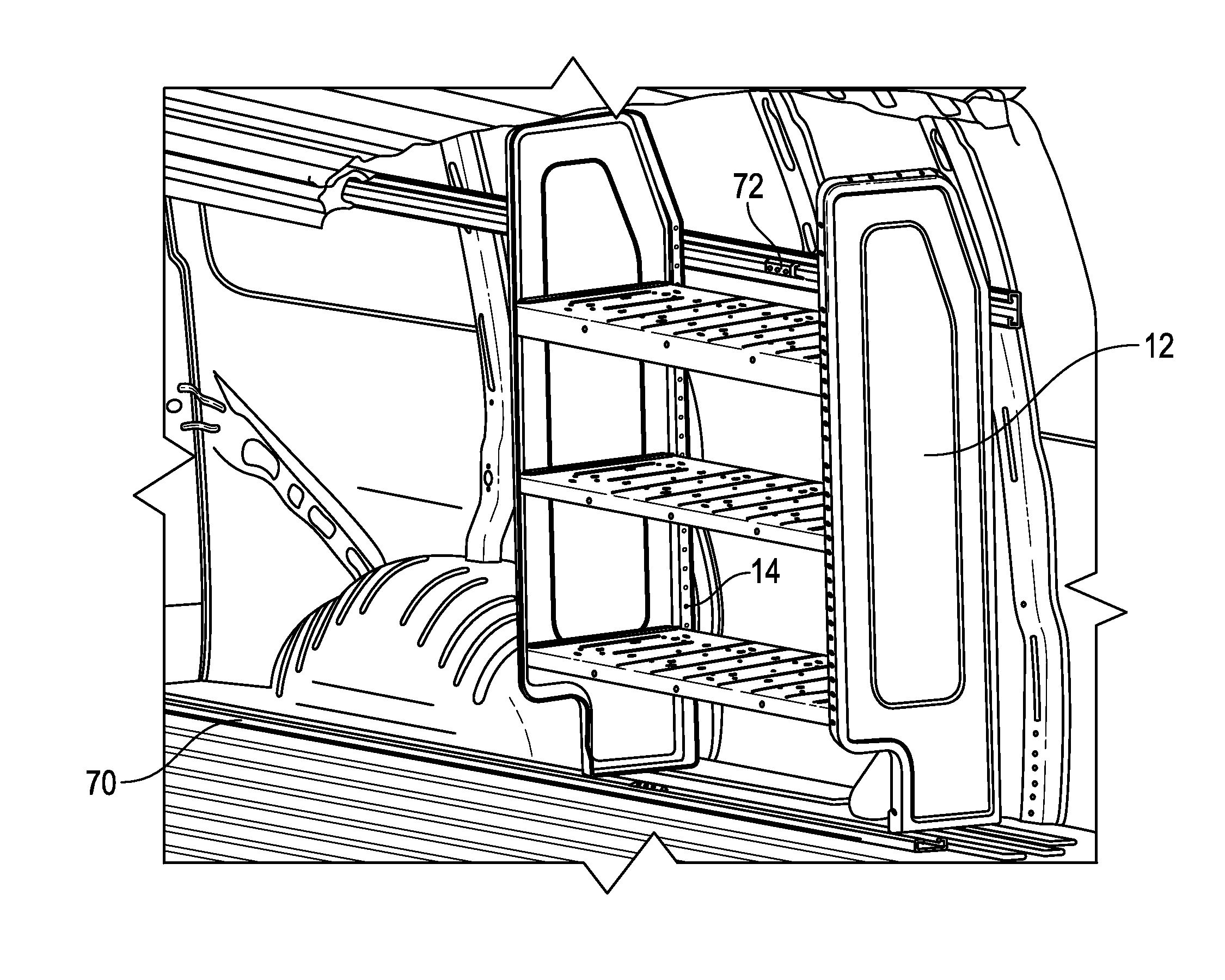

An adjustable modular shelving system is secureable to a rail mounting system in the cargo area of a vehicle. The shelving system includes a pair of end panels, each pair having an end panel flange with a plurality of end panel flange apertures. The end panel flange extends along a portion of an outer periphery of each of the pair of end panels. The shelving system may include a shelf having a base and a pair of shelf flanges which extend from longitudinal end portions of the base, one of the pair of shelf flanges includes a plurality of locking mechanisms and another one of the pair of shelf flanges include a plurality of shelf apertures. The locking mechanisms may securably connect with a first side of the pair of end panels, and the plurality of shelf apertures may securably connect with a second side of the pair of end panels.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2014 Application Filing Year
- A47B Class
- 976 Applications Filed
- 868 Patents Issued To-Date
- 88.94 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 4 Citation Count
- A47B Class
- 12.37 % this patent is cited more than
- 10 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | May 3, 2027 |
