Device for detecting the position of an actuator
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Oct 27, 2015
Grant Date -
May 2, 2013
app pub date -
Mar 28, 2011
filing date -
Mar 29, 2010
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

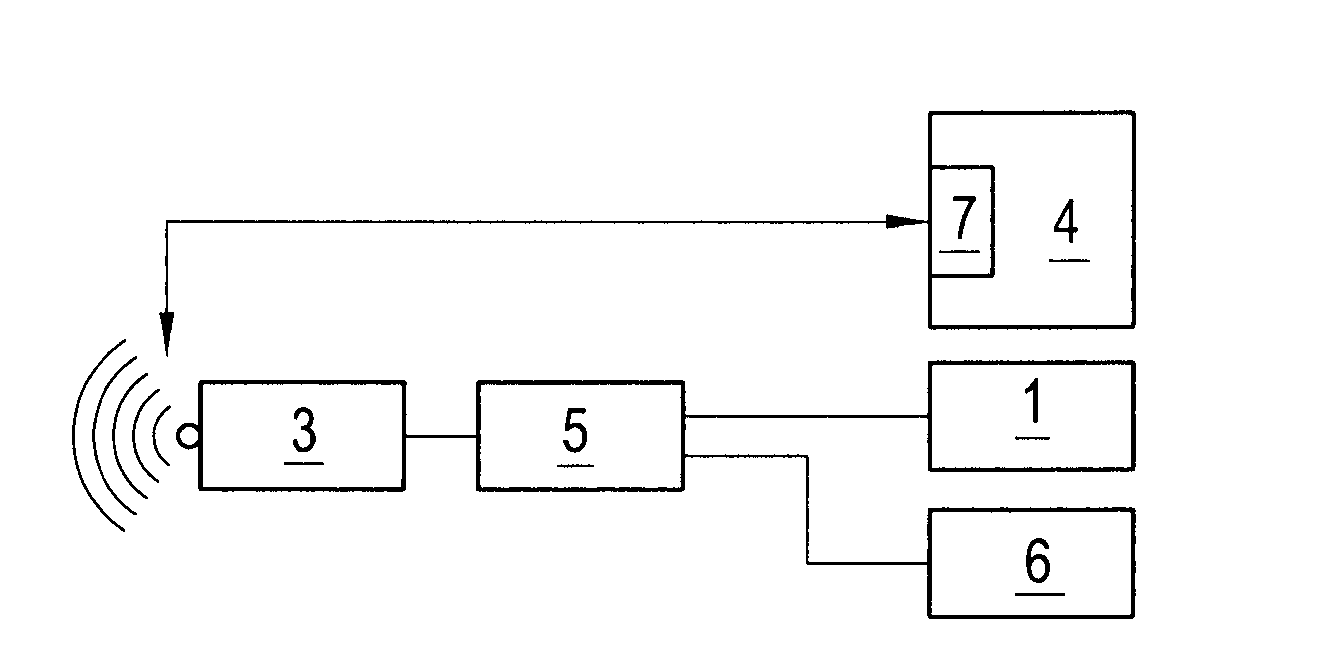

A device for detecting the position of an actuator has a conductor arrangement, which detects magnetic fluxes flowing therethrough and converts same into a voltage signal that is dependent on the position, at which the magnetic flux penetrates the conductor arrangement. The induced voltage signal is proportional to the position of the magnetic flux, measured along a predetermined axis starting from a predetermined starting point. A position-determining unit is connected to the conductor arrangement for determining the position of a magnetic flux generated by the actuator and passing though the conductor arrangement. A transmission unit, by way of which the determined position is transmitted to a receiver, is arranged downstream of the position-determining unit.
