Testing device for a tire inflation device
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Oct 27, 2015
Grant Date -
Mar 5, 2015
app pub date -
Feb 27, 2014
filing date -
Sep 2, 2013
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

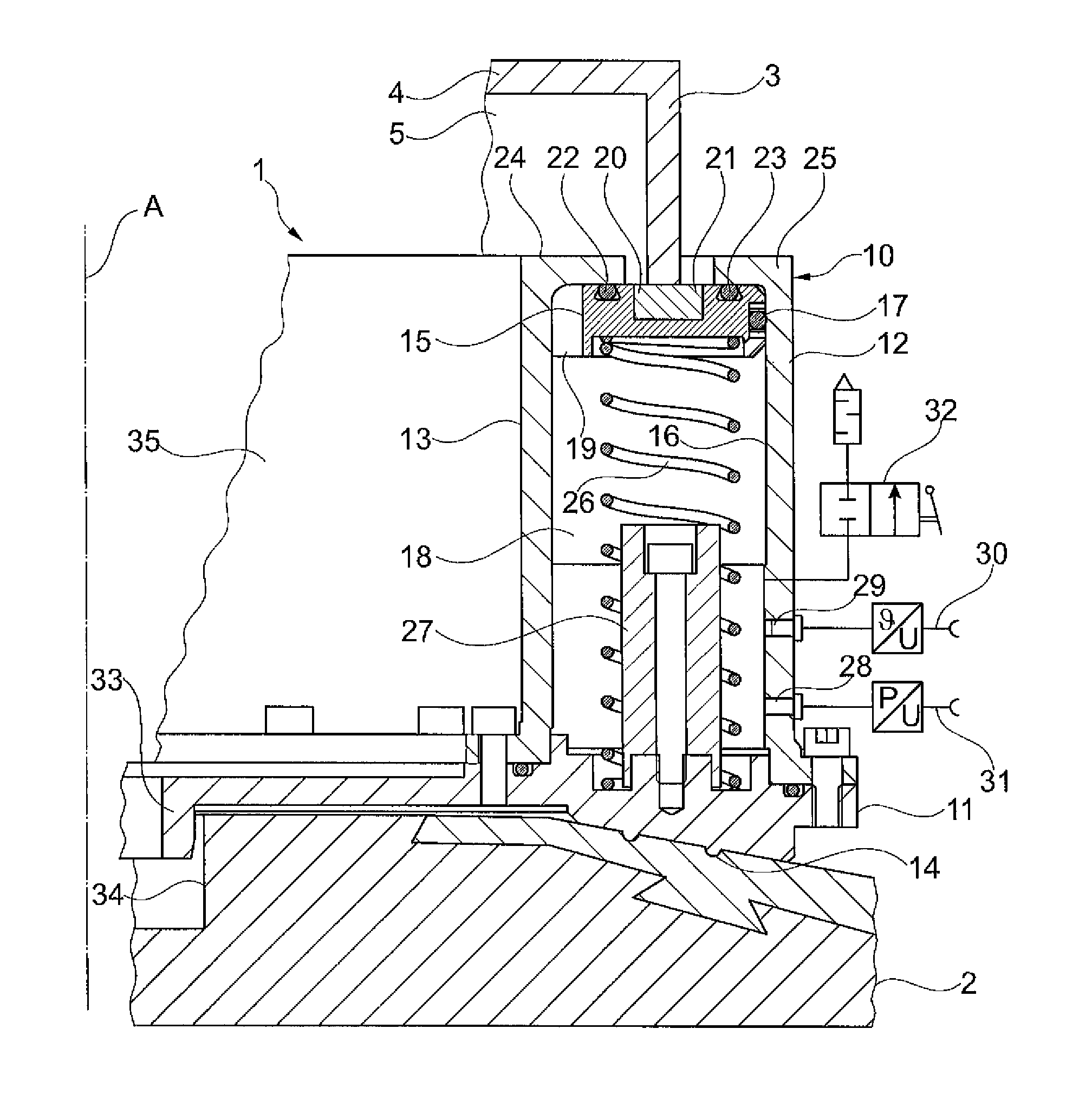

Disclosed is a testing device for a tire inflation device, comprising a housing (10) which includes a bottom (11) and an annular outer wall (12) with a cylindrical inner surface (16), a piston (15) which is movably guided on the cylindrical inner surface (16), is sealed and has an annular engagement surface (20) for sealingly engaging an inflation ring (3) and a central piston opening (19), a spring (26) arranged between the bottom (11) and the piston (15), its spring force seeking to move the piston (15) away from the bottom, and sensors detecting the pressure in an inner chamber (18) adapted to be filled with compressed gas and the temperature of the housing (10).
First Claim
Other Claims data not available
Family
International Classification(s)
- 2014 Application Filing Year
- G01M Class
- 1317 Applications Filed
- 1056 Patents Issued To-Date
- 80.19 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 2 Citation Count
- G01M Class
- 14.03 % this patent is cited more than
- 10 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Apr 27, 2027 |
