Register
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Oct 20, 2015
Grant Date -
Nov 22, 2012
app pub date -
Mar 25, 2010
filing date -
Jan 22, 2010
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

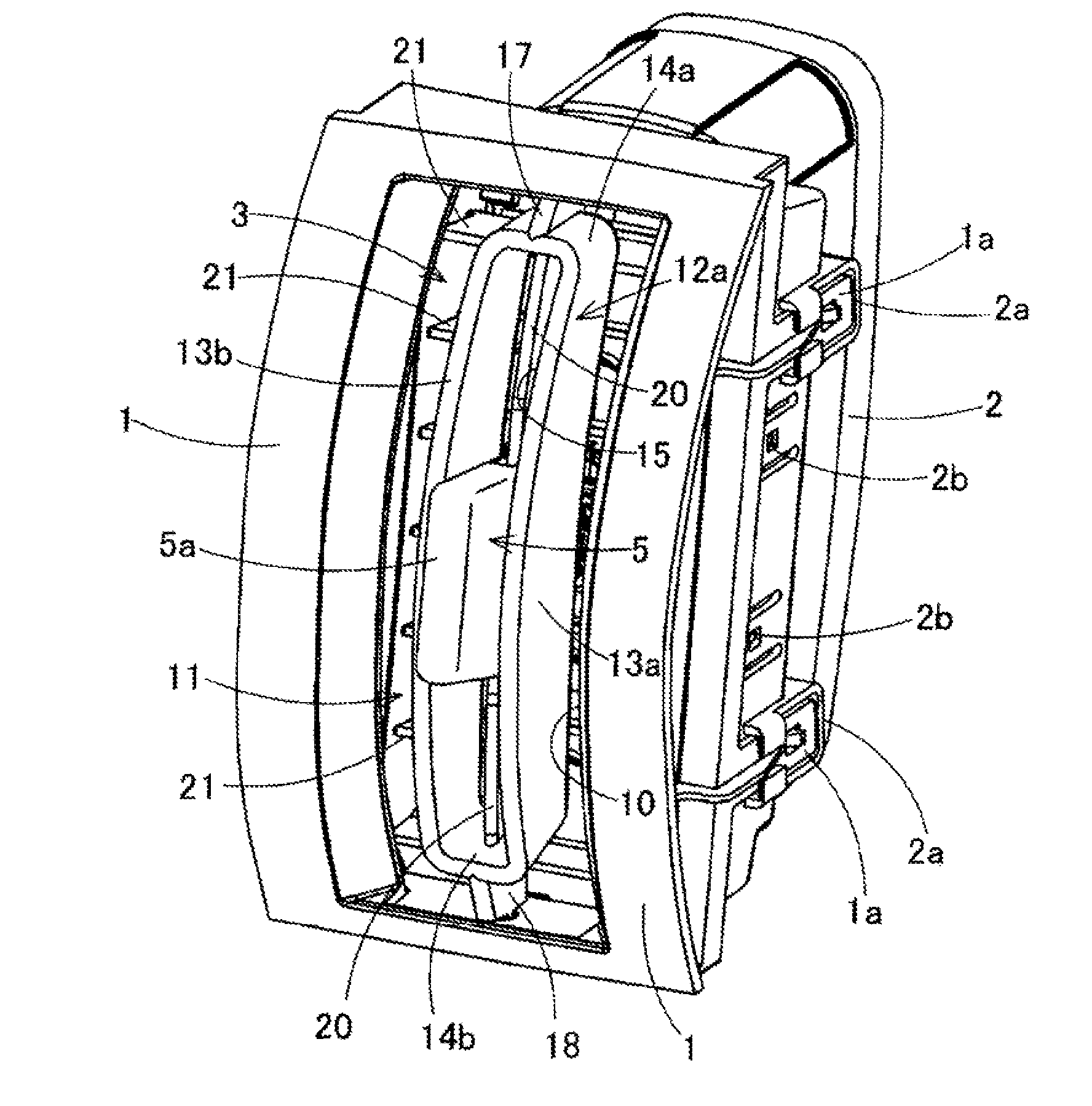

A register has a narrow and long air blow outlet long in the longitudinal direction and short in the shorter-side direction, and is provided with a front movable louver along the longitudinal direction inside the air blow outlet. The front movable louver has one vertical fin having an annular fin portion at the center. The annular fin portion is formed so as to have a substantially rectangular opening in an air blowing direction in a front view, and has flat plate portions on both side portions. Upper shaft portions are provided on both end portions of the annular fin portion via upper fin portions, and lower shaft portions are provided via lower fin portions. The upper shaft portions and lower shaft portions are supported turnably on bearing portions of fixed walls.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2010 Application Filing Year
- B60H Class
- 164 Applications Filed
- 117 Patents Issued To-Date
- 71.35 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 8 Citation Count
- B60H Class
- 12.99 % this patent is cited more than
- 10 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Apr 20, 2027 |
