Interference reduction between RF communications bands
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Oct 13, 2015
Grant Date -
May 30, 2013
app pub date -
May 24, 2012
filing date -
May 24, 2012
priority date (Note) -
Withdrawn
status (Latency Note)
Importance
|
US Family Size
|
Non-US Coverage
|
|
Patent Longevity
|
Forward Citations
|
Abstract

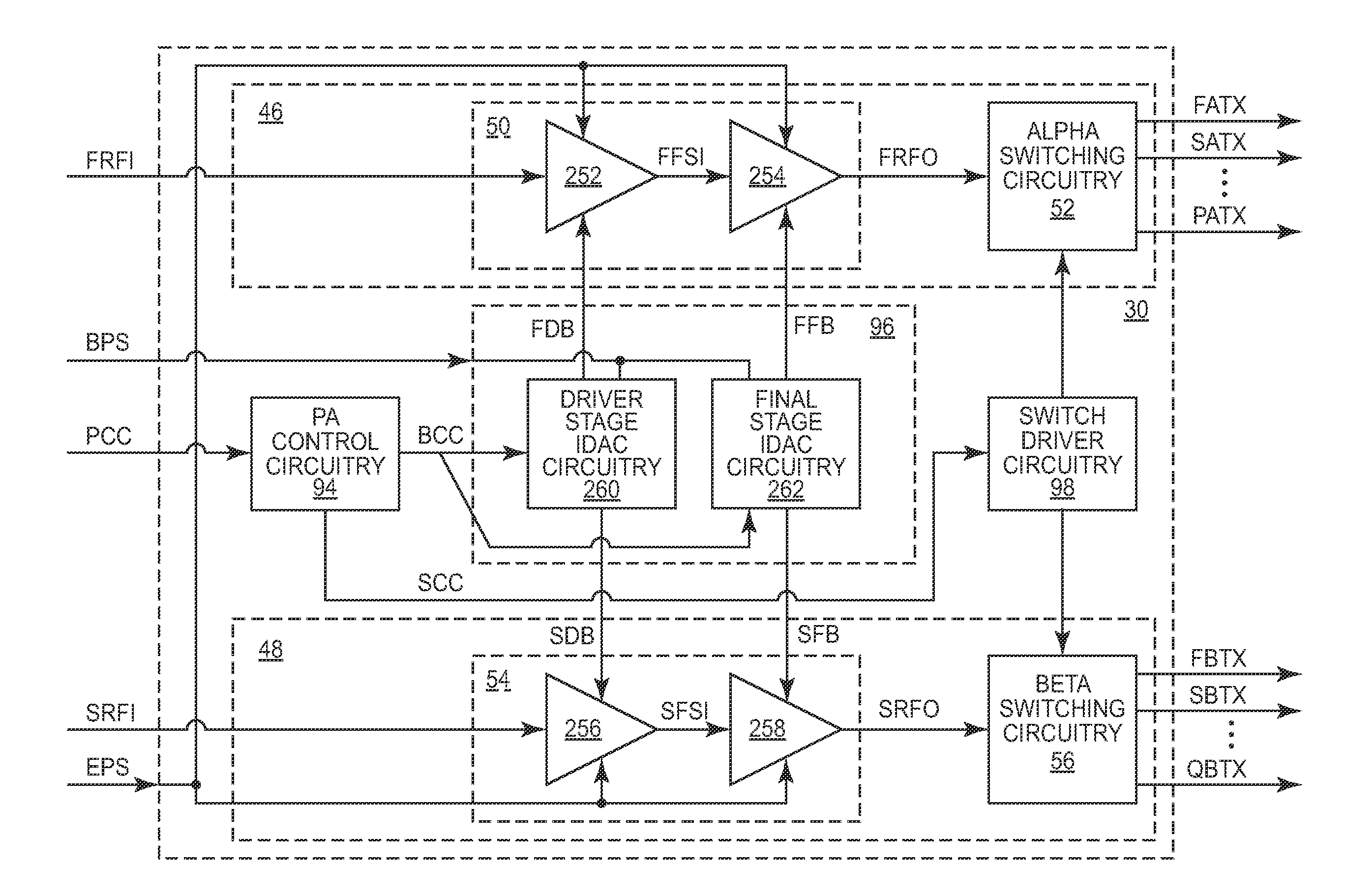

Radio frequency (RF) power amplifier (PA) circuitry and a PA envelope power supply are disclosed. The RF PA circuitry receives and amplifies an RF input signal to provide an RF output signal using an envelope power supply signal, which is provided by the PA envelope power supply. The RF PA circuitry operates in either a normal RF spectral emissions mode or a reduced RF spectral emissions mode. When reduced RF spectral emissions are required, the RF PA circuitry operates in the reduced RF spectral emissions mode. As such, at a given RF output power, during the reduced RF spectral emissions mode, RF spectral emissions of the RF output signal are less than during the normal RF spectral emissions mode. As a result, the reduced RF spectral emissions mode may be used to reduce interference between RF communications bands.
First Claim
Other Claims data not available
Family
| Country | kind | publication No. | Filing Date | Type | Sub-Type |
|---|
International Classification(s)
- 2012 Application Filing Year
- H03F Class
- 976 Applications Filed
- 777 Patents Issued To-Date
- 79.62 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- H03F Class
- 0 % this patent is cited more than
- 10 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Apr 13, 2027 |
