DC power supply device, and control method for DC power supply device
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Oct 13, 2015
Issued Date -
N/A
app pub date -
Sep 5, 2012
filing date -
Sep 5, 2012
priority date (Note) -
In Force
status (Latency Note)
Importance

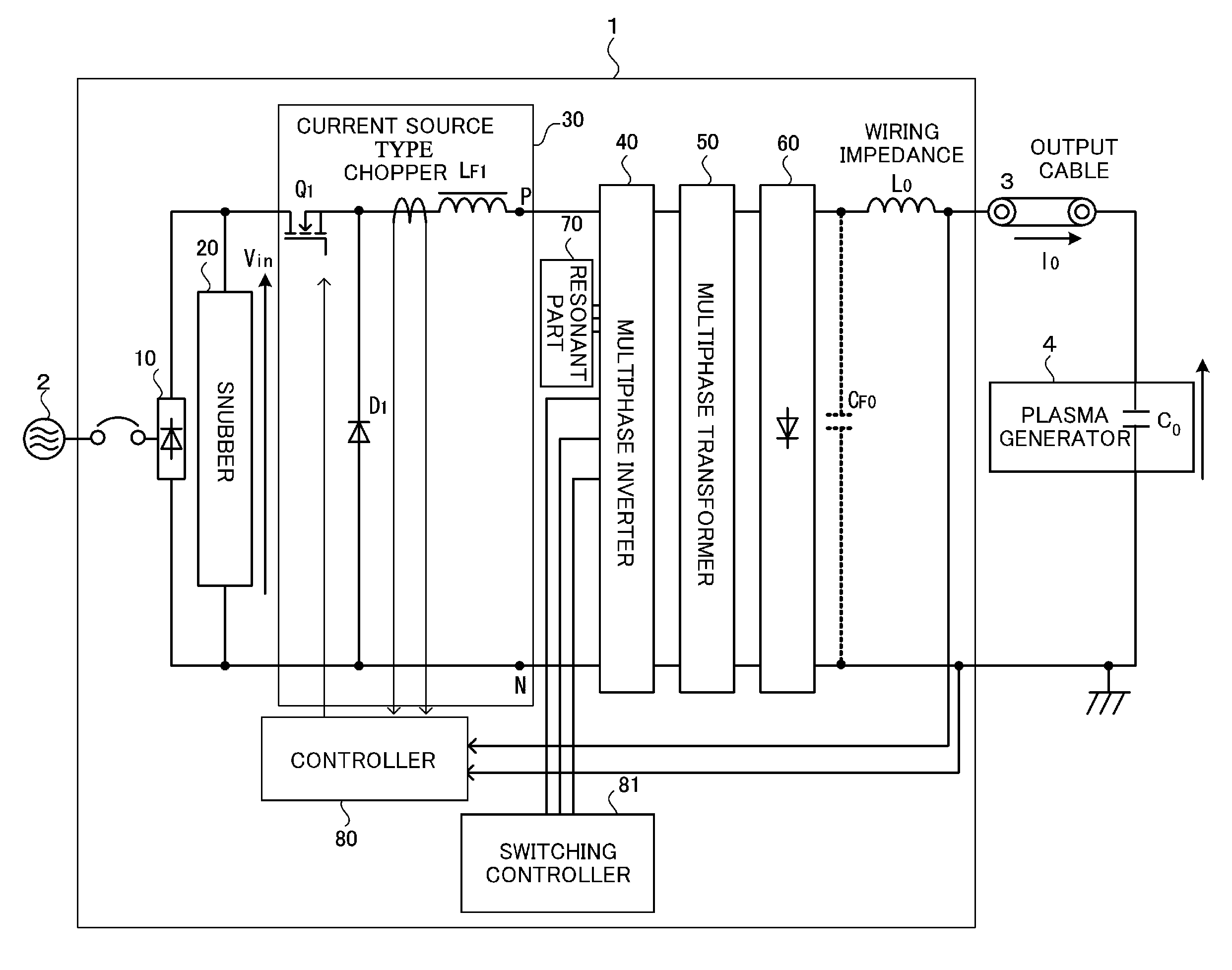

Abstract
A phase of the pulse control signal upon restarting is synchronized with the phase of the pulse control signal upon suspending, thereby suppressing fluctuations of output voltage in each phase of the inverter upon restarting and further suppressing fluctuations of voltage supplied to the load. Upon supplying DC power to a plasma generator, when arc discharge occurs in the plasma generator, supplying of the DC power is suspended to reduce damage on the electrodes and substrate, and further upon extinguishing of the arc discharge, supplying of the DC power is restarted. In suspending and resuming the DC output, the current flowing in the chopper upon suspending is held in the form of circulating current, and upon restarting the inverter, this circulating current is supplied to the load. Accordingly, it is possible to reduce a delay in supplying the DC power to the load, upon resuming the DC output.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2012 Application Filing Year
- H02J Class
- 3166 Applications Filed
- 2735 Patents Issued To-Date
- 86.39 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 2 Citation Count
- H02J Class
- 8.76 % this patent is cited more than
- 10 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Apr 13, 2027 |
