Starting system for internal combustion engine
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Oct 13, 2015
Grant Date -
May 2, 2013
app pub date -
Jul 28, 2011
filing date -
Jul 29, 2010
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

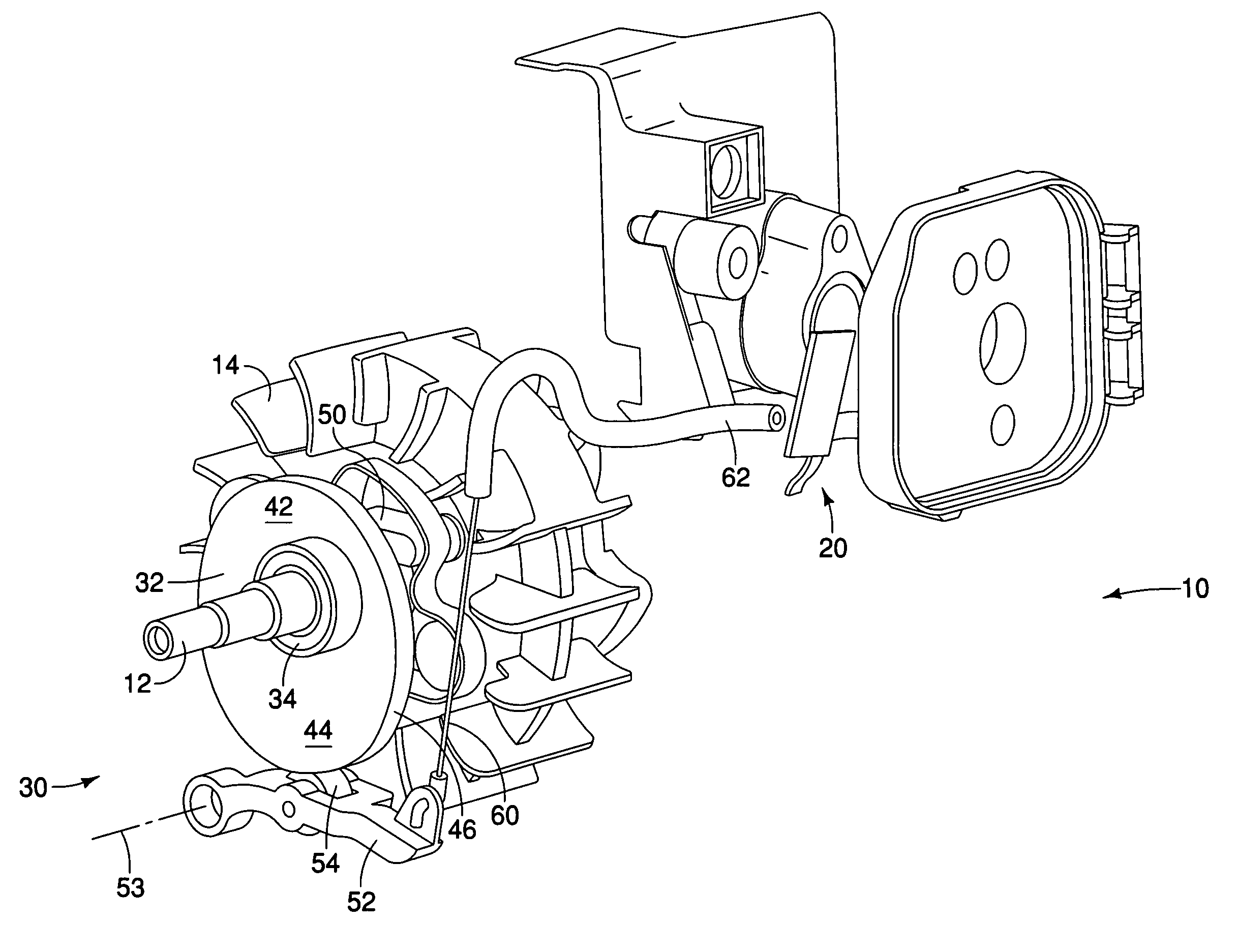

A starting system for an internal combustion engine automatically operates a starting feature on a carburetor associated with the engine. The starting system includes a cam with a bearing mounted on the crankshaft. The bearing is secured so that its inner race will always rotate with the crankshaft. The cam has bosses on one side and is shaped such that it includes a base and a lobe with an outer surface surrounding the cam. At least one spring-loaded pawl is mounted on the flywheel. The pawl is biased to engage a cam boss so as to cause the cam to rotate with the crankshaft during a start-up process. A spring loaded rocker arm is pivotally mounted adjacent the cam. The rocker arm has a roller assembly configured to ride on the outer surface of the cam. As the cam rotates, the roller assembly riding on the cam surface is pushed outward by the cam lobe. A throttle cable is attached at a first end to the rocker arm and at its opposite end to the starting feature on the carburetor. When the roller assembly ramps up the lobe, the throttle cable is pulled into an extended position to actuate the starting feature of the carburetor.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2011 Application Filing Year
- F02N Class
- 200 Applications Filed
- 172 Patents Issued To-Date
- 86 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- F02N Class
- 0 % this patent is cited more than
- 10 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Apr 13, 2027 |
