Carriage frame and fork pin lock assembly
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Oct 13, 2015
Grant Date -
Feb 14, 2013
app pub date -
Aug 9, 2011
filing date -
Aug 9, 2011
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

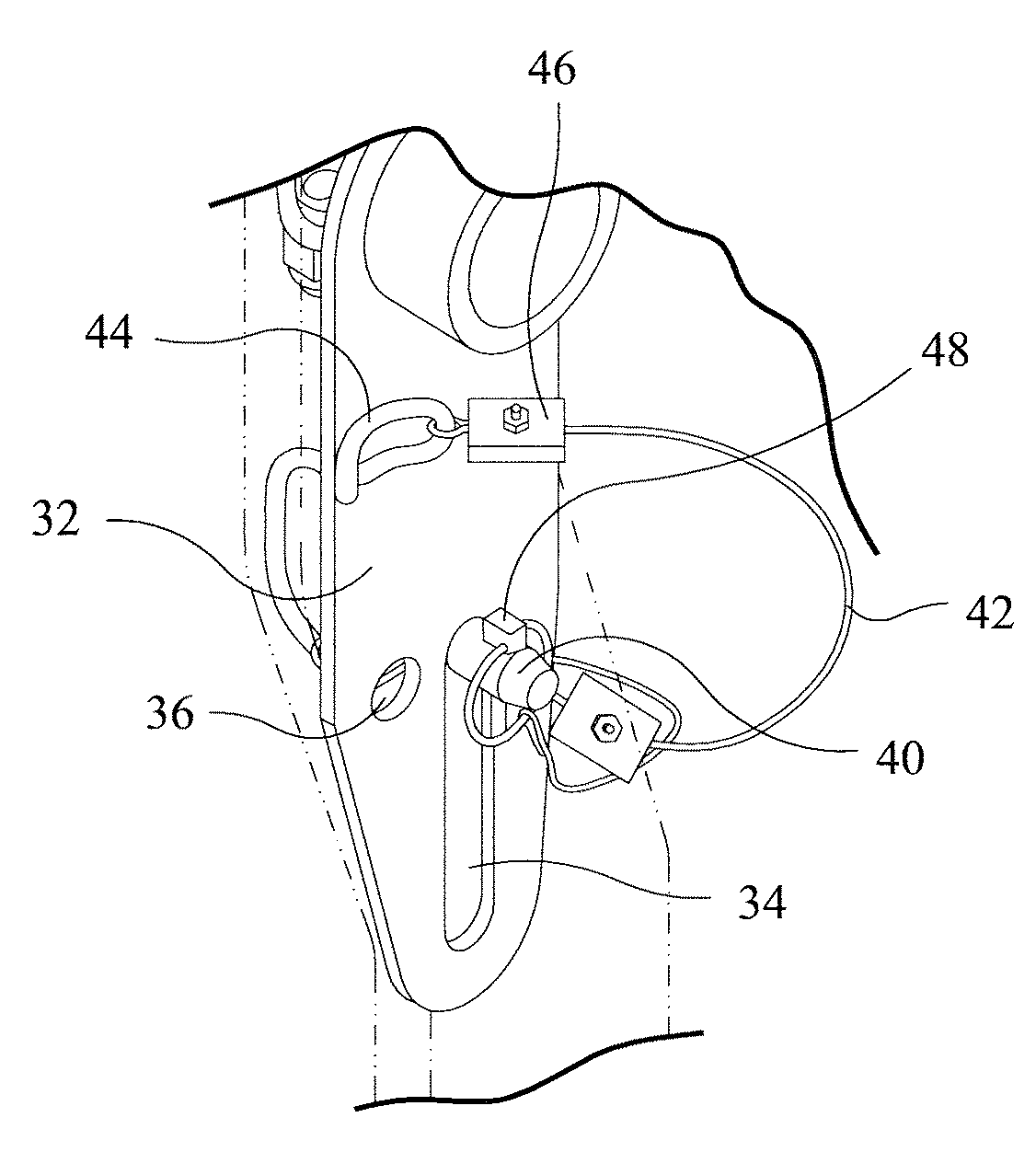

A carriage frame includes first and second side members supporting a floating fork pin, where the floating fork pin is movably mounted in respective fork pin slots in the first and second side members and is adapted to receive load carrying forks. The first and second side members each includes a locking aperture positioned spaced from the fork pin slots. A pair of lock plates are secured to ends of the floating fork pin, respectively, where each of the lock plates includes a lock pin slot and a lock pin hole positioned in substantial alignment with the locking apertures in the first and second side members. A pair of fork pin locks extend through the locking apertures of the first and second side members and are selectively extended through one of the lock pin slot and the lock pin hole. With the fork pin locks extending through the lock pin slots, the floating fork pin is movable in the fork pin slot, and with the fork pin locks extending through the lock pin holes, the floating fork pin is prevented from moving in the fork pin slot.
