Safety chamber
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Oct 13, 2015
Grant Date -
Feb 16, 2012
app pub date -
Dec 21, 2009
filing date -
Apr 1, 2009
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

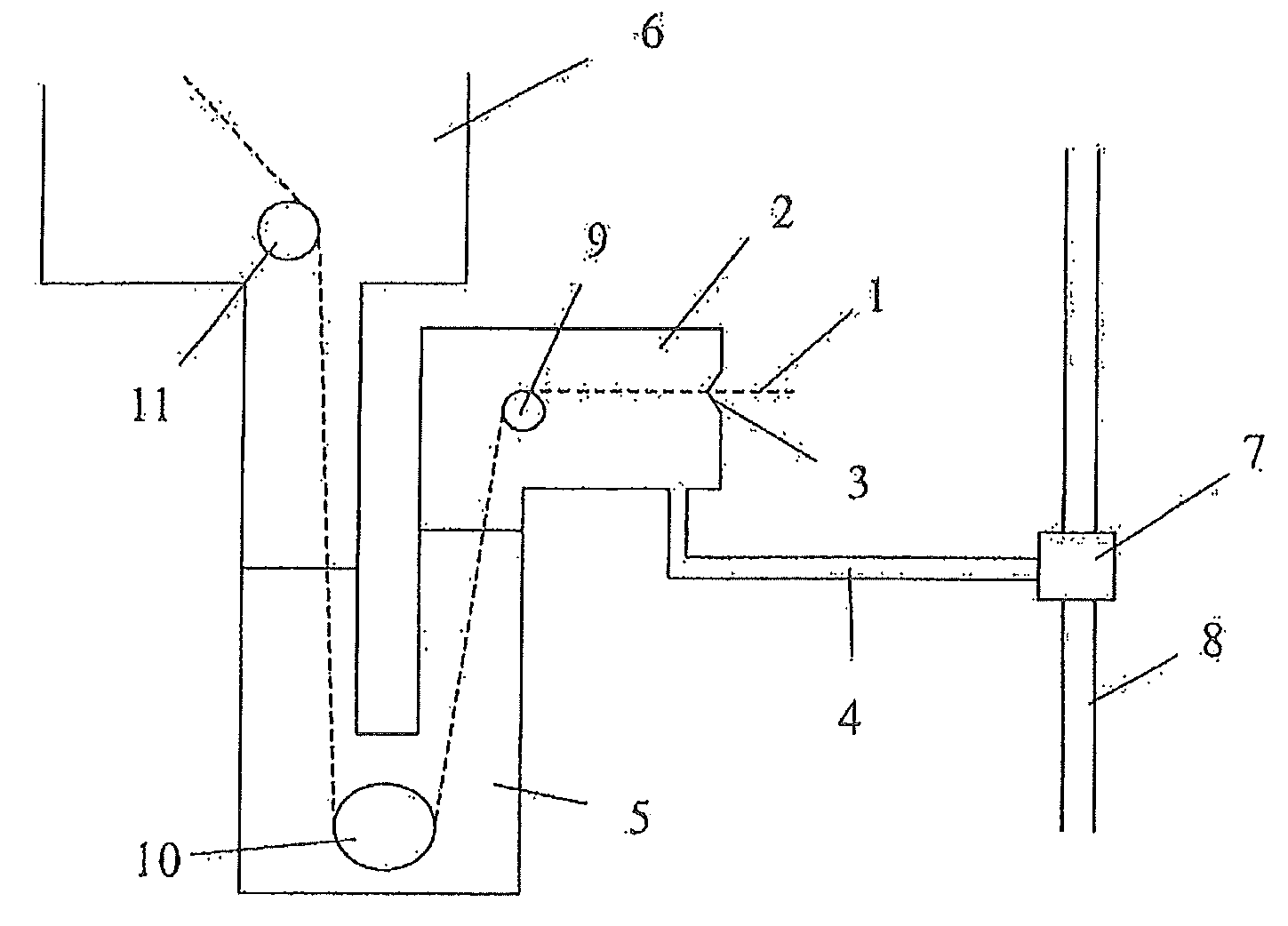

An arrangement is provided to prevent emissions of hydrogen peroxide from a packaging machine forming sealed packaging containers from a packaging material web. The packaging machine has a sterilization portion comprising an inlet chamber, a peroxide bath and an aseptic chamber. The aseptic chamber is held at an overpressure while the inlet chamber is held at an underpressure during normal operation of the packaging machine. The peroxide bath functions as a seal between the inlet chamber and the aseptic chamber. A safety chamber placed in front of the inlet chamber is held at an underpressure to avoid peroxide emissions to the environment. The packaging material web will pass the safety chamber before going into the inlet chamber.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2009 Application Filing Year
- B67B Class
- 90 Applications Filed
- 69 Patents Issued To-Date
- 76.67 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 2 Citation Count
- B67B Class
- 24.39 % this patent is cited more than
- 10 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Apr 13, 2027 |
