Proximity sensor and method for determining the proximity to an electrically conductive body
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Oct 6, 2015
Grant Date -
Sep 5, 2013
app pub date -
Feb 21, 2013
filing date -
Mar 1, 2012
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

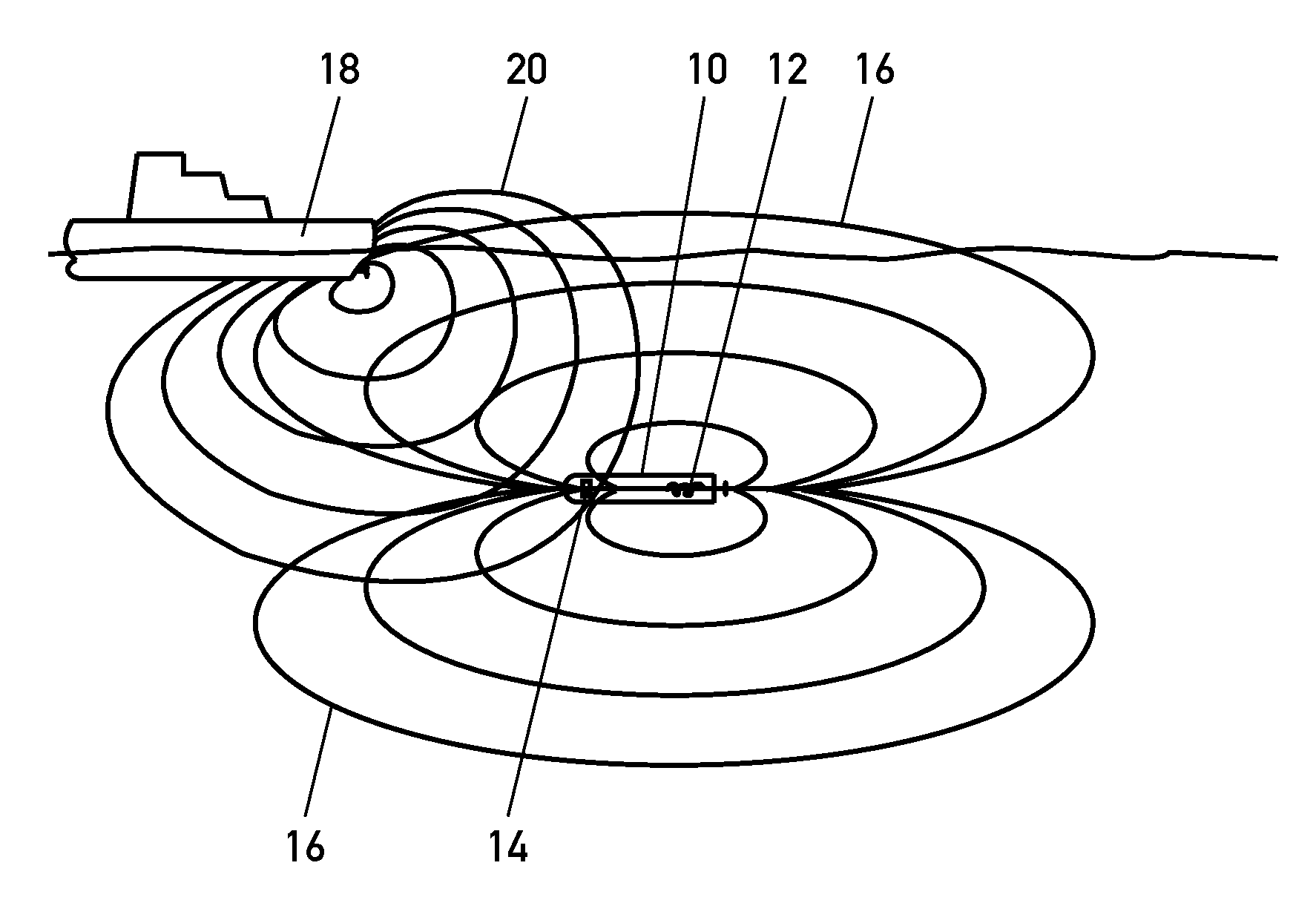

A method for determining the proximity to an electrically conductive body comprises transmitting an alternating magnetic field at a selected frequency and registering an alternating magnetic field. Frequencies of the registered alternating magnetic field comprising the selected frequency and have an amplitude value above a predefined threshold value and are detected by a detection means. Utilizing a blocking circuit, frequencies of a predefined frequency band comprising the detected frequency or a plurality of predefined frequency bands comprising in each case one of the detected frequencies, are defined as blocked frequencies. A following frequency following the respective selected frequency and different from the selected frequency and the blocked frequencies is defined in a selection controller. The following frequency of a selected frequency is continuously selected as a newly selected frequency for a new time window following immediately after or chronologically spaced apart from a selected time window.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2013 Application Filing Year
- H03K Class
- 2259 Applications Filed
- 1924 Patents Issued To-Date
- 85.18 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- H03K Class
- 0 % this patent is cited more than
- 10 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Apr 6, 2027 |
