Six-stroke combustion cycle engine and process
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Oct 6, 2015
Grant Date -
Jun 12, 2014
app pub date -
Dec 12, 2012
filing date -
Dec 12, 2012
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

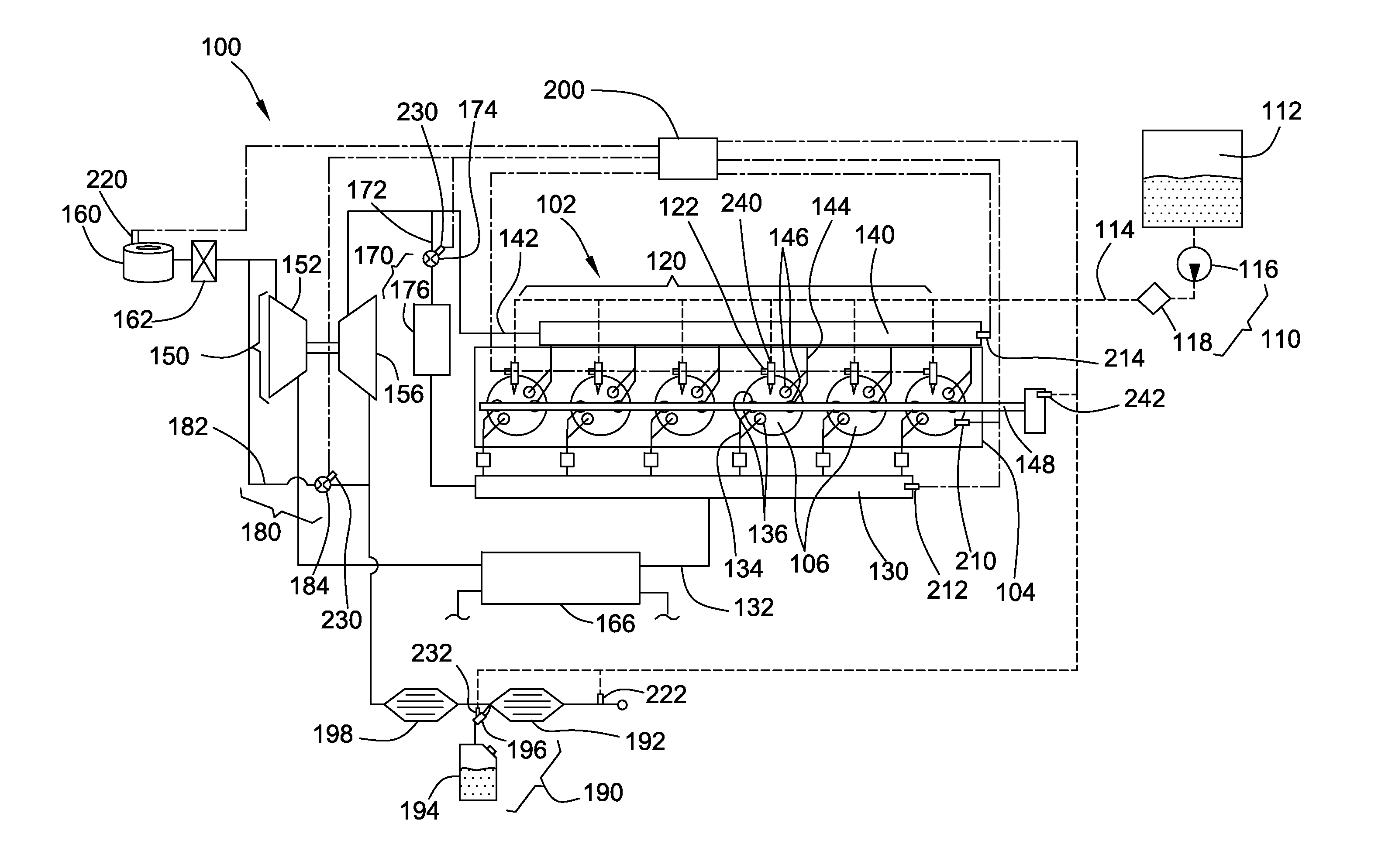

A fuel introduction system introduces fuel to an internal combustion engine operating on a six-stroke combustion cycle including a first compression stroke, a first power stroke, a second compression stroke, and a second power stroke. The fuel introduction system includes a first orifice set for introducing a first fuel charge to a combustion chamber of the engine during the first compression stroke and/or power stroke and a second orifice set for introducing a second fuel charge to the combustion chamber during the second compression stroke and/or power stroke. Combustion of the second fuel charge can assist in burning particulate matter left in the combustion chamber from combusting the first fuel charge. The first and second orifice sets can be configured to differentiate the first and second fuel charges by, for example, fuel quantity or spray pattern.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 3 Citation Count
- F02B Class
- 10.31 % this patent is cited more than
- 10 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Apr 6, 2027 |
