Alloyed hot-dip galvanized steel sheet
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Nov 10, 2015
Grant Date -
Sep 11, 2014
app pub date -
Sep 28, 2012
filing date -
Sep 28, 2012
priority date (Note) -
Withdrawn
status (Latency Note)
Importance
|
US Family Size
|
Non-US Coverage
|
|
Patent Longevity
|
Forward Citations
|
Abstract

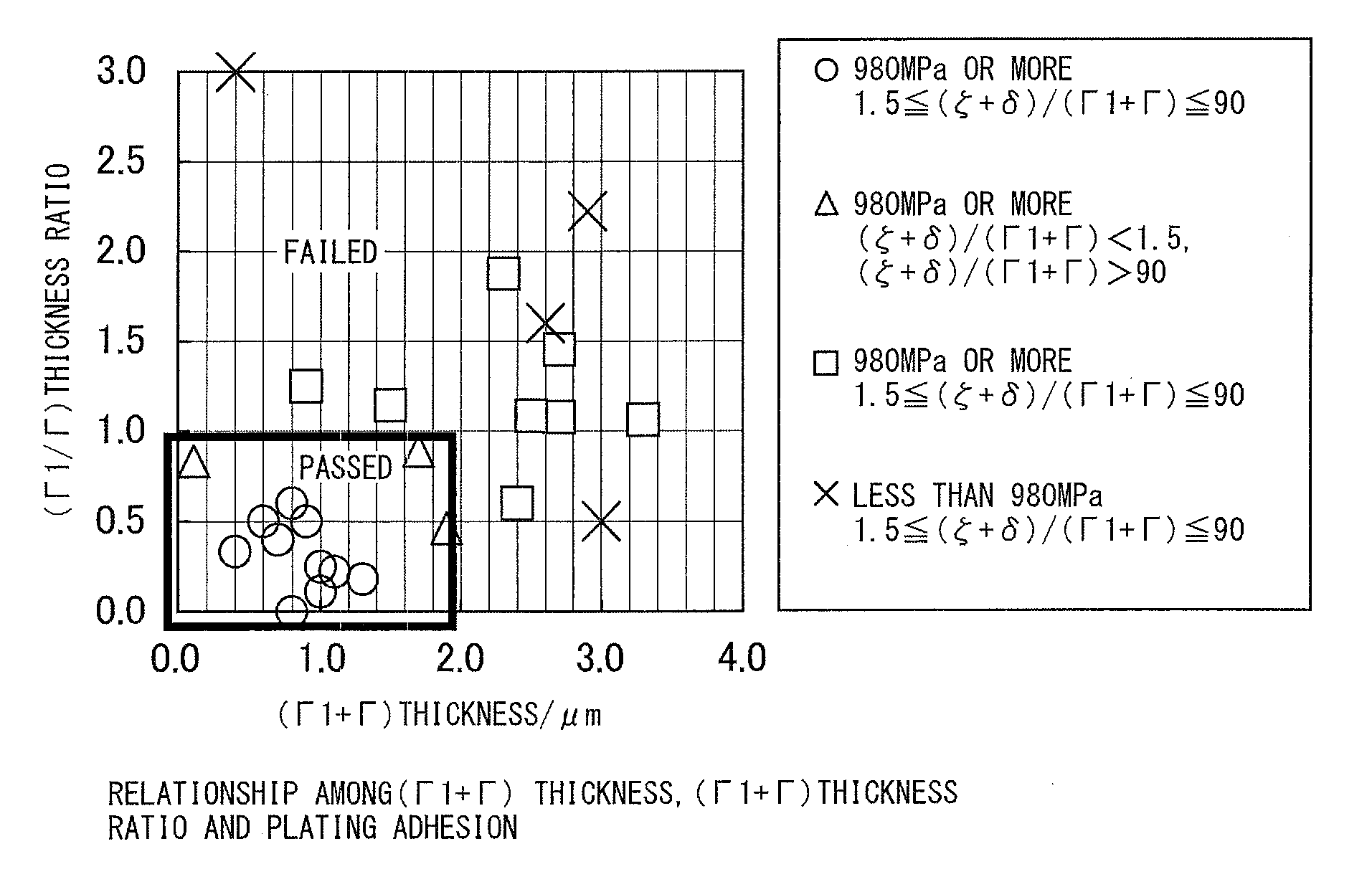

A high-strength alloyed hot-dip galvanized steel sheet obtained by subjecting the surface of a high-strength steel sheet to alloyed hot-dip galvanization, and formed from a steel sheet containing, in mass %, main components, and containing at least 40 vol % bainite and/or martensite, 8-60 vol % retained austenite, and less than 40 vol % ferrite, with the remainder comprising unavoidable structures. In the alloyed hot-dip galvanized steel sheet, the total thickness of the Gamma1 layer and the Gamma layer (Tgamma1+Tgamma) is 2 μm or less in the alloy layers formed by hot-dip galvanization, and the Gamma1 phase/Gamma phase thickness ratio (Tgamma1/Tgamma) is 1 or less. A tensile strength of 980 MPa or above can be easily imparted to the alloyed hot-dip galvanized steel sheet. The alloyed hot-dip galvanized steel sheet has excellent coating adherence, and coating separation during machining can be suppressed.
First Claim
Other Claims data not available
Family
| Country | kind | publication No. | Filing Date | Type | Sub-Type |
|---|
International Classification(s)
- 2012 Application Filing Year
- C23C Class
- 1946 Applications Filed
- 1591 Patents Issued To-Date
- 81.76 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- C23C Class
- 0 % this patent is cited more than
- 10 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Apr 6, 2027 |
