Pneumatic tire
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Oct 6, 2015
Grant Date -
Aug 22, 2013
app pub date -
Dec 31, 2012
filing date -
Feb 17, 2012
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

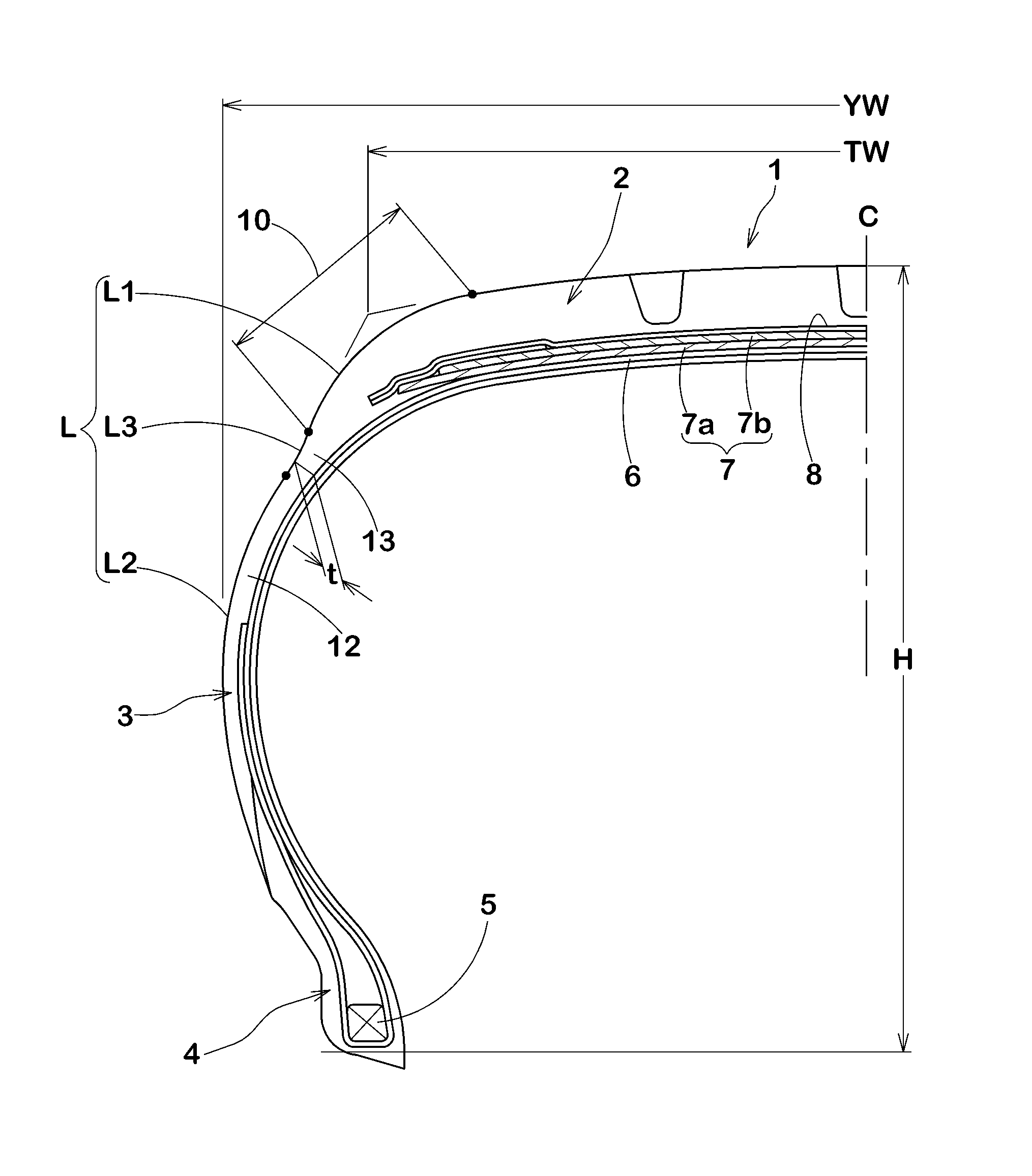

A pneumatic tire having a tread portion, a pair of sidewall portions, a pair of bead portions each with a bead core therein, wherein in a tire meridian section including a tire axis under a standard state that the tire is mounted on a standard rim and inflated to a standard pressure but loaded with no tire load, the tread portion has a tread width TW (mm) being from 80 to 90% of a nominal tire width YW, a profile from a shoulder region of the tread portion to the sidewall portion includes a shoulder profile for defining the shoulder portion, a sidewall profile for defining at least a part of the sidewall portion, and a buttress profile smoothly connecting between the shoulder profile and the sidewall profile.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2012 Application Filing Year
- B60C Class
- 650 Applications Filed
- 591 Patents Issued To-Date
- 90.93 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- B60C Class
- 0 % this patent is cited more than
- 10 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Apr 6, 2027 |
