Electrical connection device having a standard plug and a reverse plug at two ends of a cable

Number of patents in Portfolio can not be more than 2000

United States of America Patent

PATENT NO 9142927
APP PUB NO 20140302699A1
SERIAL NO

14248471

Stats

ATTORNEY / AGENT: (SPONSORED)

Importance

Loading Importance Indicators... loading....

Abstract

See full text

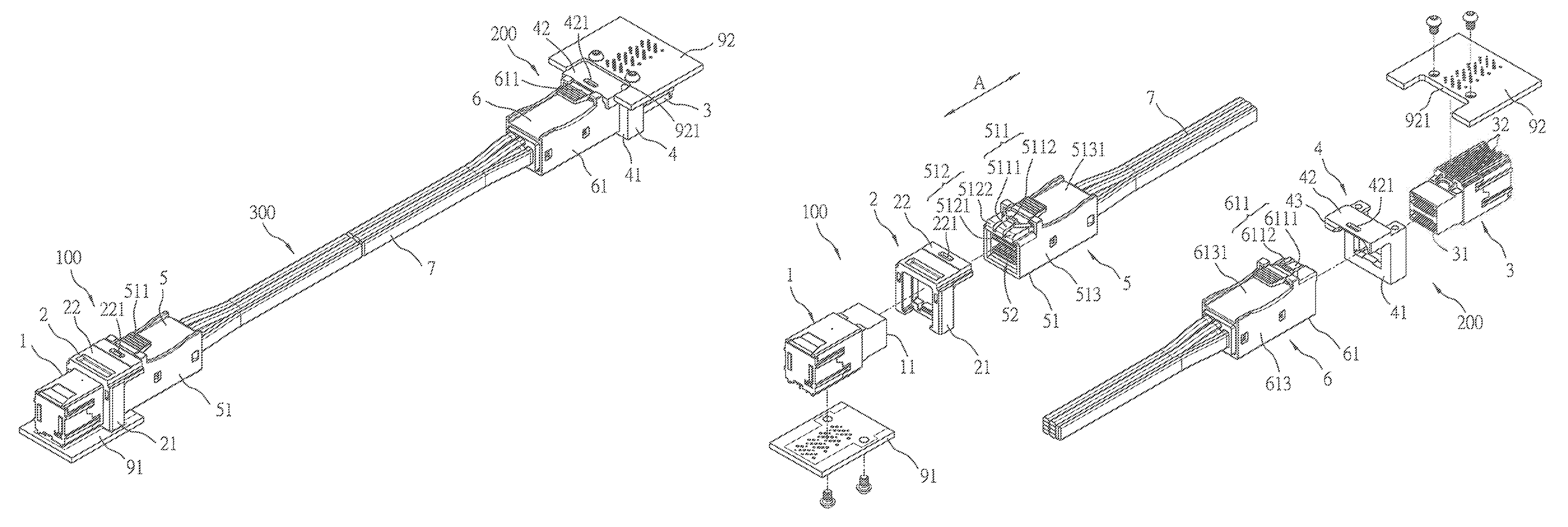

An electrical connection device comprises a standard receptacle module, a reverse receptacle module and a connector cable module. The standard receptacle module comprises a first receptacle and a first guide frame. The first guide frame has a first positioning portion. The reverse receptacle module comprises a second receptacle and a second guide frame. The second guide frame has a second positioning portion. The connector cable module comprises a standard plug, a reverse plug and a cable. The standard plug has a third positioning portion compatible with the first positioning portion. The reverse plug has a fourth positioning portion compatible with the second positioning portion. The third positioning portion of the standard plug is incompatible with the second positioning portion of the second guide frame, and the fourth positioning portion of the reverse plug is incompatible with the first positioning portion of the first guide frame.

First Claim

See full text

Other Claims data not available

Family

Loading Family data... loading....

Patent Owner(s)

Patent OwnerAddress
MOLEX INCORPORATED2222 WELLINGTON COURT LISLE IL 60532

International Classification(s)

Inventor(s)

Inventor Name Address # of filed Patents Total Citations
Tseng, Ting-Chang Taipei, TW 12 48

Cited Art Landscape

Load Citation

Patent Citation Ranking

  • 2 Citation Count
  • H01R Class
  • 11.37 % this patent is cited more than
  • 10 Age
Citation count rangeNumber of patents cited in rangeNumber of patents cited in various citation count ranges312180240011545241465741001 - 1011 - 2021 - 3031 - 4041 - 5051 - 6061 - 7071 - 8081 - 9091 - 100100 +01002003004005006007008009001000110012001300140015001600170018001900

Forward Cite Landscape

Load Citation

Maintenance Fees

Fee Large entity fee small entity fee micro entity fee due date
11.5 Year Payment $7400.00 $3700.00 $1850.00 Mar 22, 2027
