Compound bow having improved vibration-damping performance
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Sep 22, 2015
Grant Date -
Jul 9, 2015
app pub date -
Jan 5, 2015
filing date -
Jan 3, 2014
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

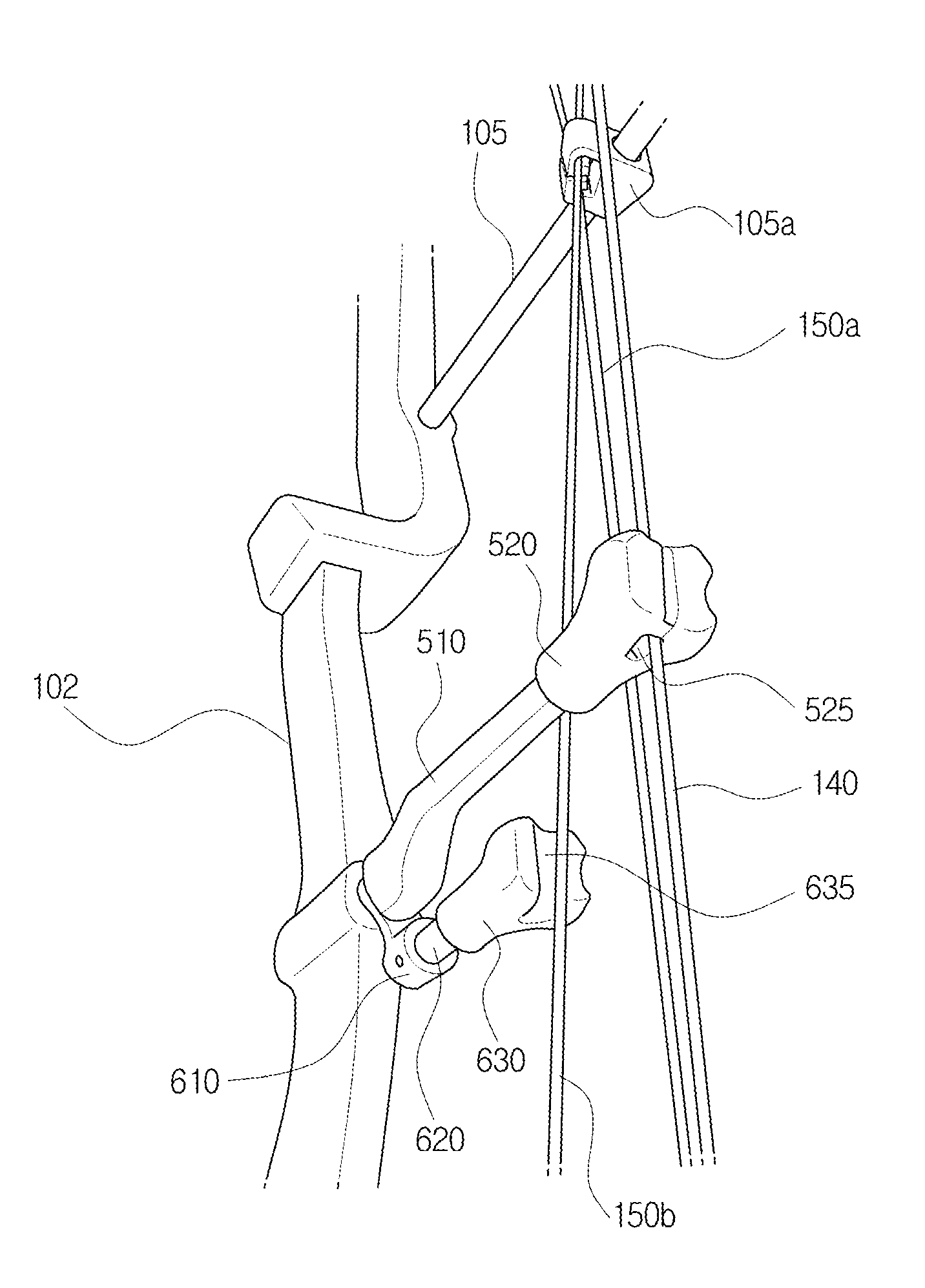

A compound bow has an improved vibration damping function. The compound bow includes a bow main body including a handle and a pair of limbs; upper and lower pulley assemblies each including a pulley and a cam; a bowstring; first and second cam cables that are wound around the cam of each of the upper and lower pulley assemblies as the bowstring is pulled; a bowstring support bar whose one end is coupled to the handle and whose other end is coupled to a cushioning member that contacts the bowstring; and a first cam cable anti-vibration bar including a coupling bar coupled to the handle, and an anti-vibration member that is coupled to the rear end of the coupling bar and whose rear surface contacts one of the first and second cam cables when the bowstring is released to thus return to an original position.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2015 Application Filing Year
- F41B Class
- 196 Applications Filed
- 181 Patents Issued To-Date
- 92.35 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 6 Citation Count
- F41B Class
- 4.59 % this patent is cited more than
- 10 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Mar 22, 2027 |
