Joint for panels
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Sep 22, 2015
Grant Date -
Jul 14, 2011
app pub date -
Mar 15, 2011
filing date -
Jul 11, 2005
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

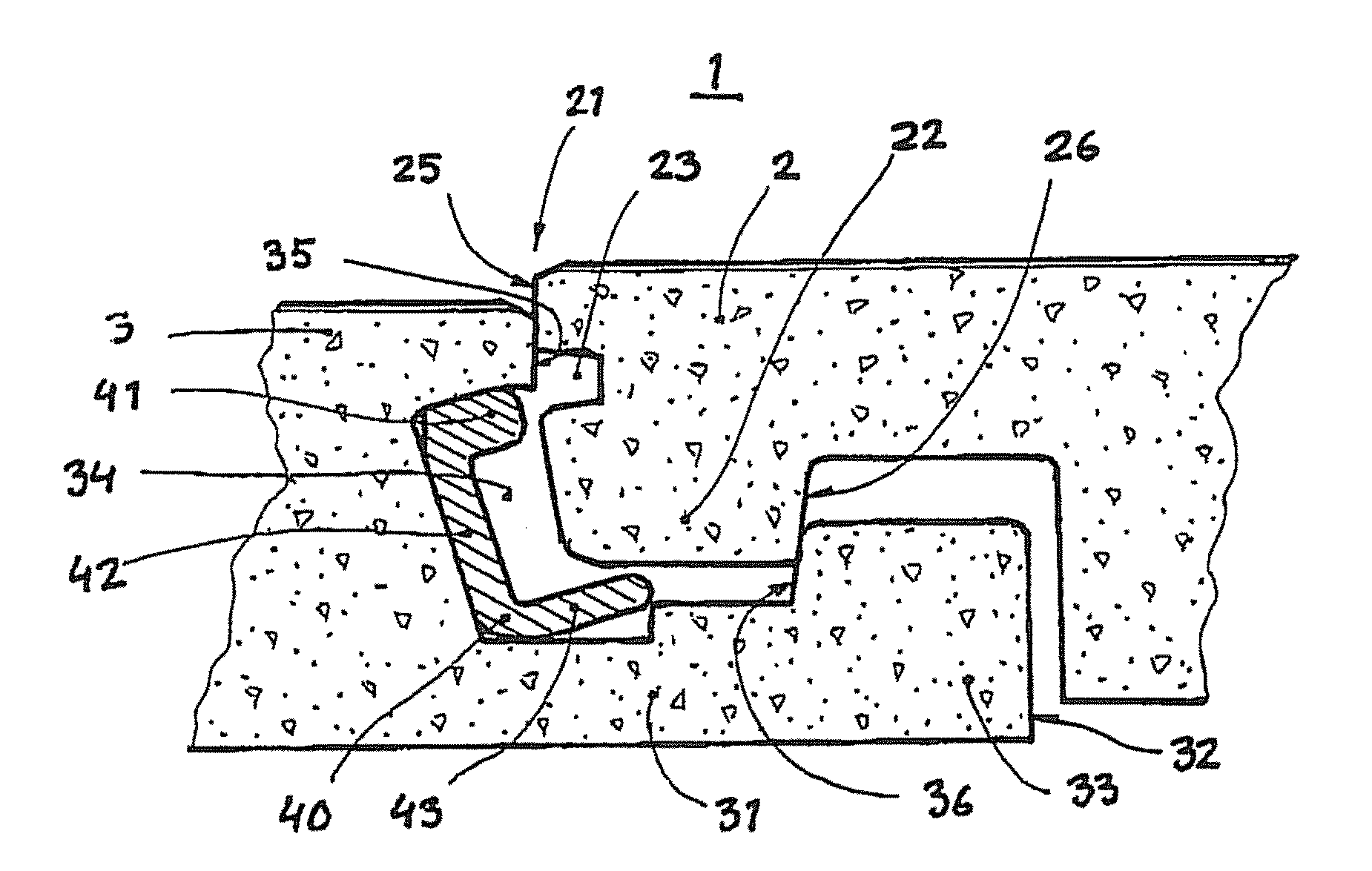

A joint (1) having a first edge (2) and a second edge (3), the first edge (2) being provided with a distal edge (21) and a downwards protruding heel (22). The distal edge (21) is further provided with an upper joint edge (25) beneath which a groove (23) is arranged. The second edge (3) is provided with lower cheek (31) having a distal end (32) at which an upwards protruding lower cheek heel (33) is arranged. The second edge (3) is further provided with an upper joining edge (35) beneath which an undercut (34) is arranged. A moveable locking element (40) is arranged in the space created by the undercut (34). The moveable locking element (40) have a locking tongue (41), a locking tongue leg (42) and a maneuvering leg (43).
First Claim
Other Claims data not available
Family
International Classification(s)
- 2011 Application Filing Year
- F16B Class
- 930 Applications Filed
- 491 Patents Issued To-Date
- 52.80 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 8 Citation Count
- F16B Class
- 18.00 % this patent is cited more than
- 10 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Mar 22, 2027 |
