Apparatus and method for harvesting portions with fluid nozzle arrays
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Sep 22, 2015
Grant Date -
N/A
app pub date -
Feb 24, 2012
filing date -
Feb 25, 2011
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

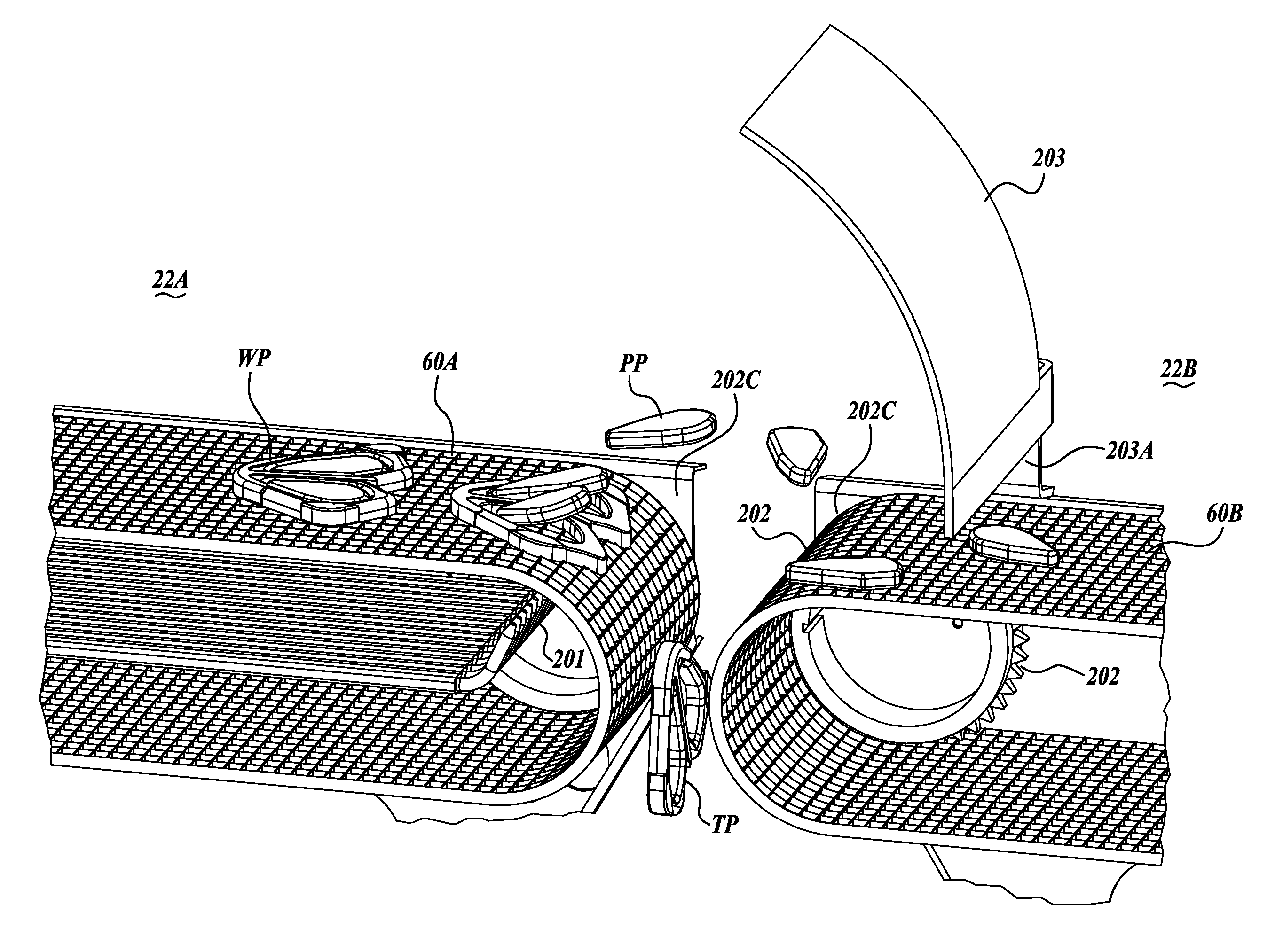

A system for cutting a workpiece into one or more portions or final pieces, and then transferring the final pieces to a receiving location, includes a conveyor configured to support and advance workpiece, as well as a cutter configured to cut the workpiece into the final pieces. At least one fluid nozzle is positioned relative to the conveyor and selectively activatable to discharge a stream of fluid at a predetermined location(s) on the final piece, thereby to propel the final piece from the conveyor to a receiving location. A controller activates the nozzle to direct the fluid stream at the target position(s) on the final pieces.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2012 Application Filing Year
- B26D Class
- 387 Applications Filed
- 263 Patents Issued To-Date
- 67.96 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 10 Citation Count
- B26D Class
- 28.14 % this patent is cited more than
- 10 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Mar 22, 2027 |
