Methods and structure for affixing frames elements to eyeglass lenses
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Sep 15, 2015
Grant Date -
Sep 18, 2014
app pub date -
Mar 13, 2013
filing date -
Mar 13, 2013
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

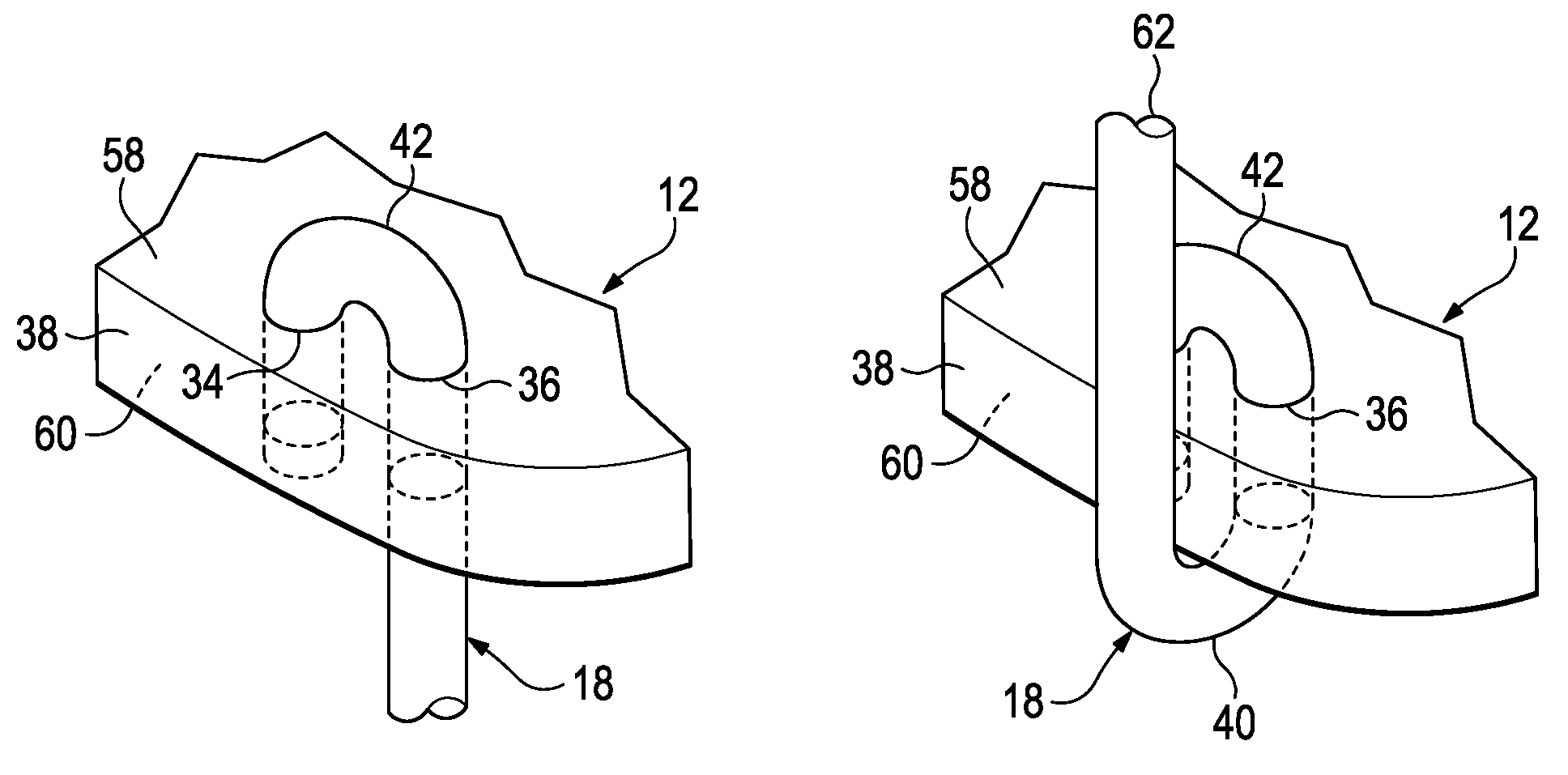

Eyeglass frame elements may include a bridge and temples, and for an accessory attached to eyeglasses, one or more clips. Each of these elements includes an attachment point to the lens. For this attachment point a terminal portion of a metal wire is received through a first of two apertures formed through a lens adjacent an edge thereof. A remaining portion of the metal wire is received through a second of the two apertures. A first bend in the metal wire between the terminal portion and the remaining portion located is formed between the two apertures. This first bend is adjacent to a surface of the lens. A second bend in the metal wire is formed adjacent the second of the two apertures so that at least part of the terminal portion is adjacent an outside edge of the lens.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2013 Application Filing Year
- G02C Class
- 511 Applications Filed
- 456 Patents Issued To-Date
- 89.24 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- G02C Class
- 0 % this patent is cited more than
- 10 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Mar 15, 2027 |
