Mobile measuring platform for precision measuring system
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Sep 15, 2015
Grant Date -
Aug 30, 2012
app pub date -
Nov 11, 2011
filing date -
Feb 28, 2011
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

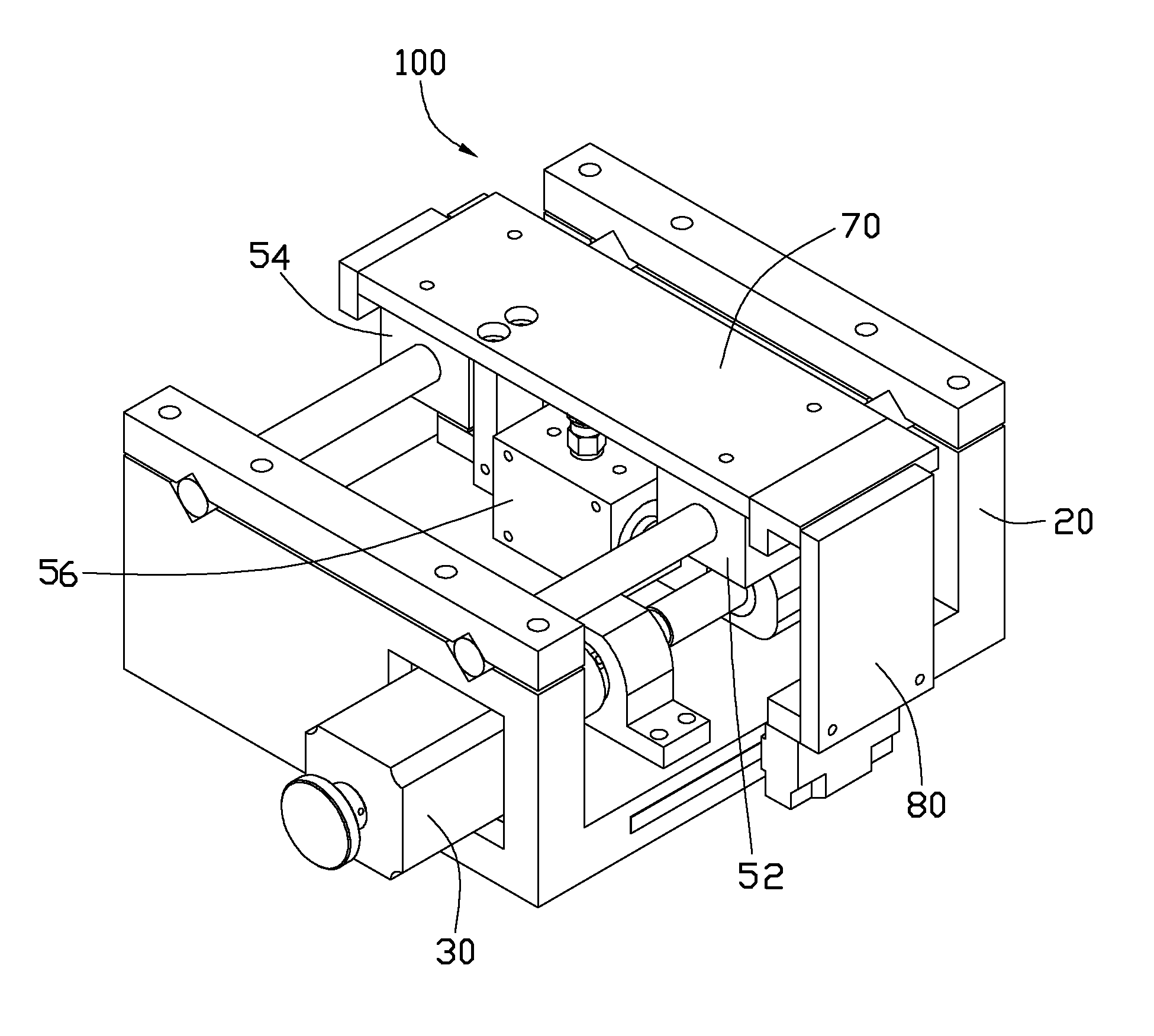

A mobile measuring platform, comprises a fixing seat; a driving assembly fixed to the fixing seat, the driving assembly comprises an electric motor and a leadscrew driven by the electric motor; two leading guides mounted on the fixing seat; each of the two leading guides comprises a slide member parallel to the leadscrew, and a guide track slidably sleeved on the slide member; a sliding assembly fixed to the guide track of each of the two leading guides; and a driving guide comprising a slide member perpendicular to the leadscrew and a guide track slidably sleeved on the slide member of the driving guide; wherein the guide track of the driving guide is driven by the electric motor via the leadscrew, the slide member of the driving guide is fixed to the sliding assembly, and the two leading guides and the driving guide are all gas hydrodynamic guides.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2011 Application Filing Year
- B25B Class
- 575 Applications Filed
- 420 Patents Issued To-Date
- 73.05 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- B25B Class
- 0 % this patent is cited more than
- 10 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Mar 15, 2027 |
