Symmetric opposed-piston, opposed-cylinder engine
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Sep 15, 2015
Grant Date -
Oct 24, 2013
app pub date -
Mar 11, 2013
filing date -
Apr 18, 2012
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

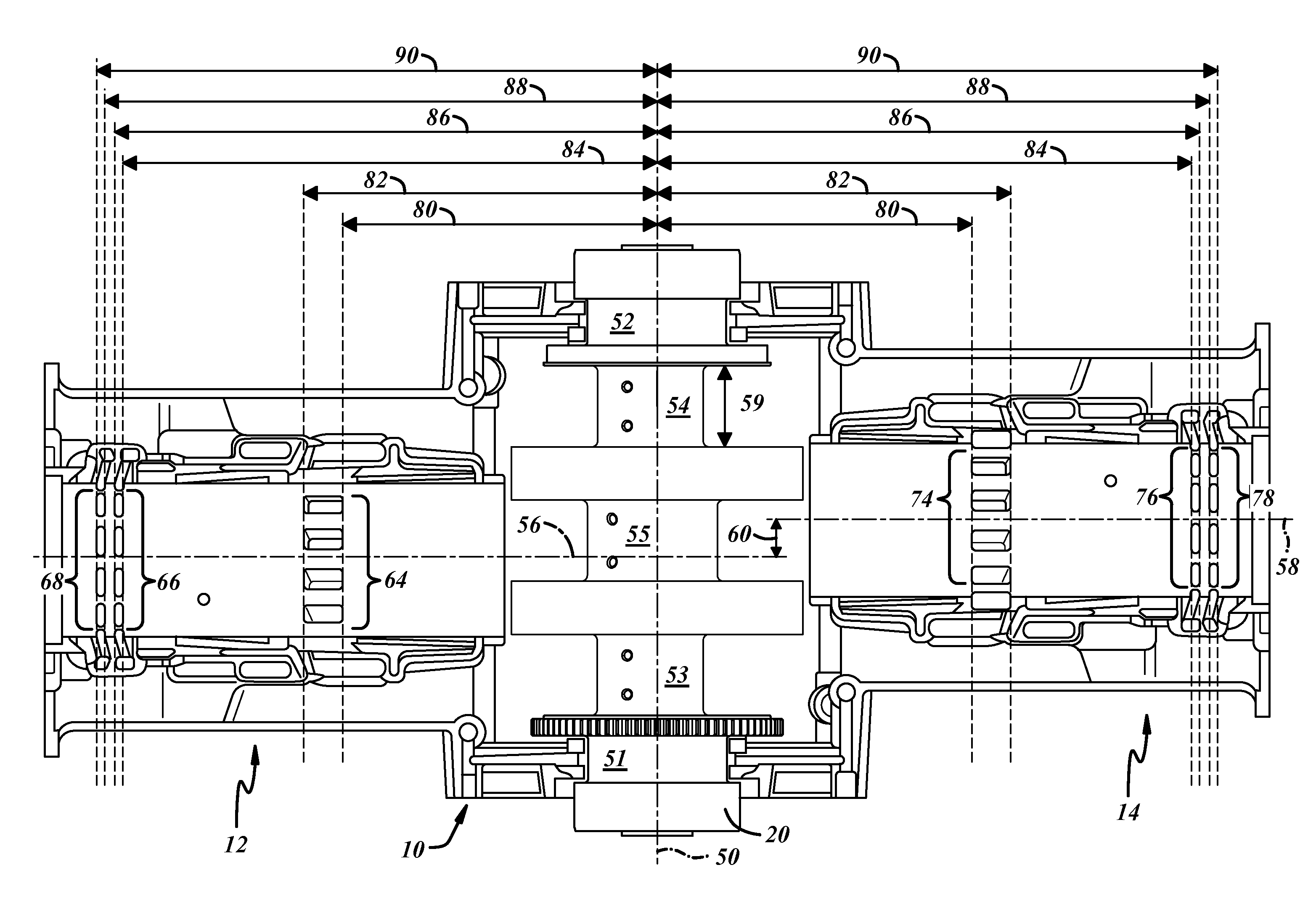

An opposed-piston, opposed-cylinder engine is disclosed that has the pistons symmetrically arranged in the opposed cylinders. In one embodiment, the inner pistons are exhaust pistons and the outer pistons are intake pistons. Alternatively, the inner pistons are intake pistons and the outer pistons are exhaust pistons. The pistons are coupled to the crankshaft that is situated between the opposed cylinders. Central axes of the two cylinders are offset by a predetermined distance. The connecting rods that couple between the crankshaft and the pistons are arranged adjacent to each other on journals of the crankshaft. The journal to which the pushrods couple is not a split-pin type. Instead, it is one that has a common central axis. Furthermore, the crankshaft is a one-piece or unitary structure.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2013 Application Filing Year
- F02B Class
- 1008 Applications Filed
- 900 Patents Issued To-Date
- 89.29 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- F02B Class
- 0 % this patent is cited more than
- 10 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Mar 15, 2027 |
