Mounting structure and method of connector for flexible cable
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Sep 8, 2015
Grant Date -
Dec 11, 2014
app pub date -
Jun 3, 2014
filing date -
Jun 7, 2013
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

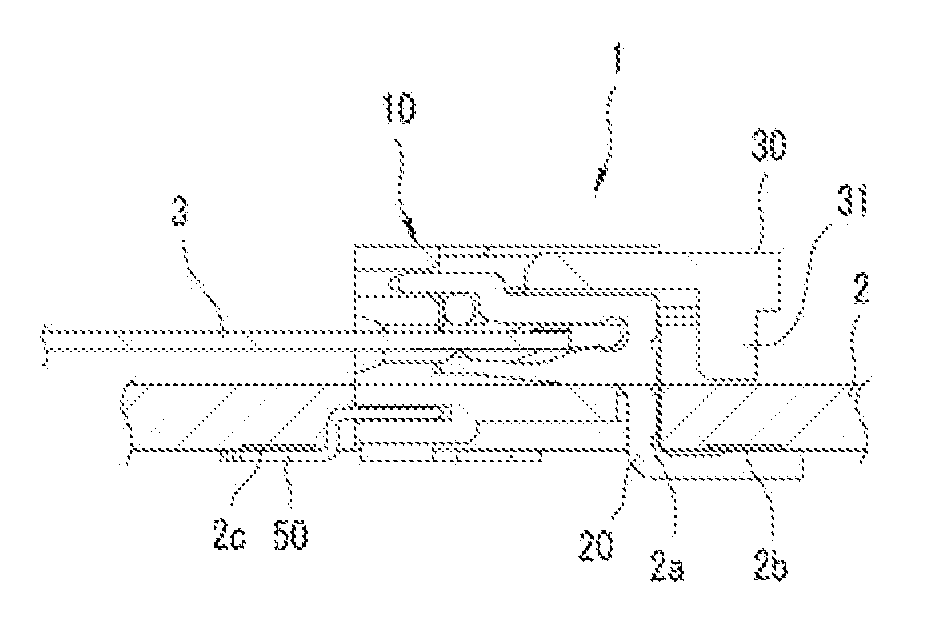

The flexible cable mounting structure of the Present Disclosure is a flexible cable connector comprising a housing, whereon a contact terminal is mounted that enables insertion and withdrawal of the flexible cable and contact with the flexible cable. An actuator that opens/closes is installed in such a way as to enable rotation on the housing. A fitting nail is furnished on the housing and fixes the housing to the PCB. The fully-assembled flexible cable connector, wherein the contact terminal, actuator, and fitting nail have each been mounted to the housing, passes through from the bottom to the top of the PCB, and the bottom of the contact terminal and bottom of the fitting nail are soldered to the lower surface of the PCB.
